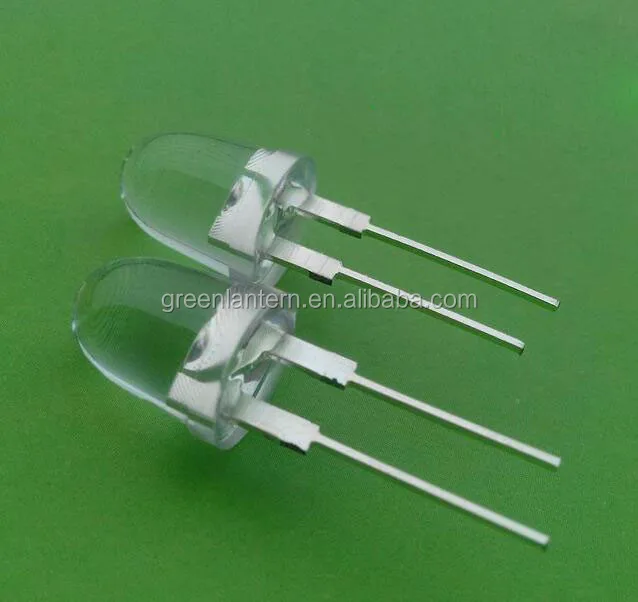

F10 Through hole 10mm 1Watts LED diode 1W
LED Parameters
10mm led didoe 1w
view angle :45degree,
len: clear,
light color :white 6000K
voltage:8-10V
Lumen :30000mcd to 100000 mcd .
Spec. of Series products
1. Size: 3mm, 5mm, 9mm, 10mm led
2.Profile: round, burgonet, straw hat
3. Emitting color: red, yellow, blue, green, white, warm white
4. Beam Angle: 15, 20,30, 45,120 degrees
5. Wave length: 450-650nm
6. Forward Voltage: 2.0-2.4V for red, yellow color, 3.2-3.5V for white .blue, green, white,violet
7. Forward Current: 20mA-150mA
8. Lens colors: water clear, color diffused
9. Life Span: 50,000 Hours
10. Packing: 500-1000pcs/bag
11. Luminous Intensity:
Red: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD
Yellow: 3000-4000MCD, 4000-6000MCD, 6000-8000MCD, 8000-10000MCD
Green: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-20000MCD
Blue: 2000--3000MCD, 3000-4000MCD, 4000-5000MCD, 5000-7000MCD
White: 11000-13000MCD, 13000-15000mcd, 15000-18000MCD, 18000-26000MCD
Application:
1. Recessed lighting, shelf lighting, ceiling/wall coves
2. Cabinet and under counter lighting, office work station
3. Back lighting, step lighting, light boxes
4. Merchandising, exhibition stands, and panels
