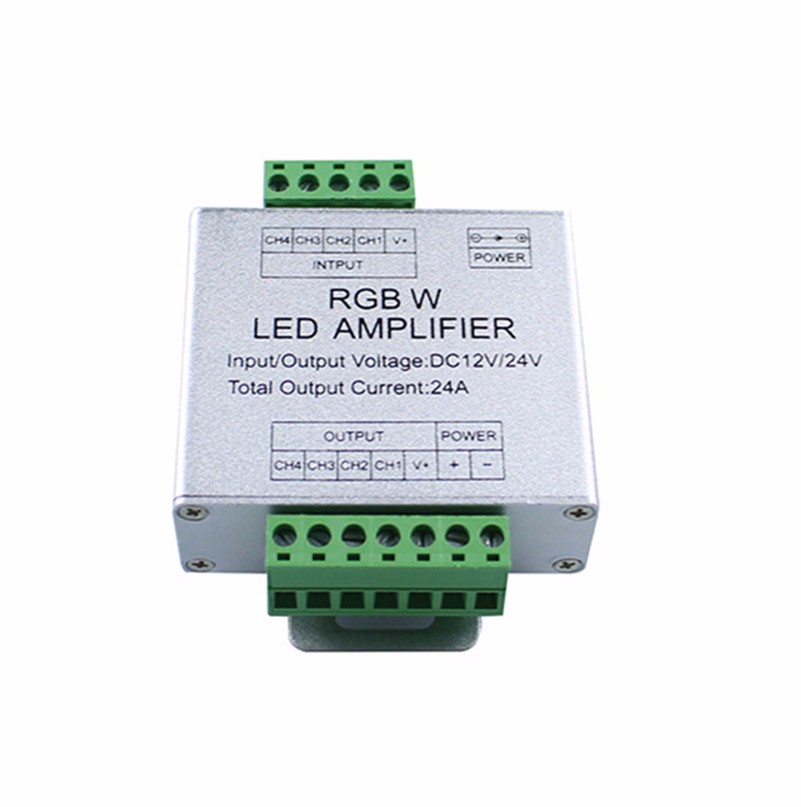

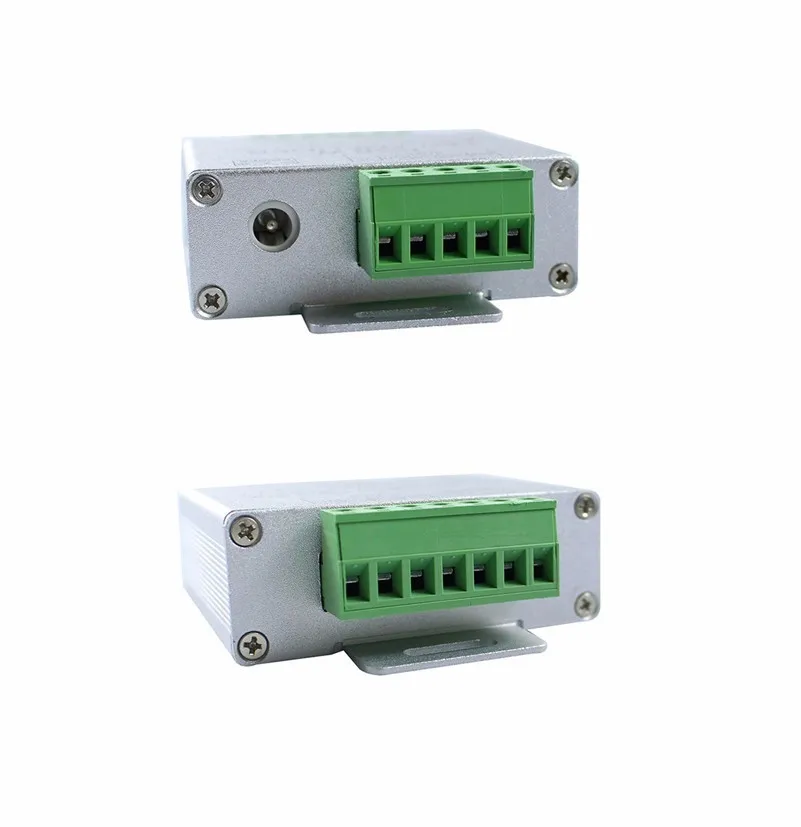

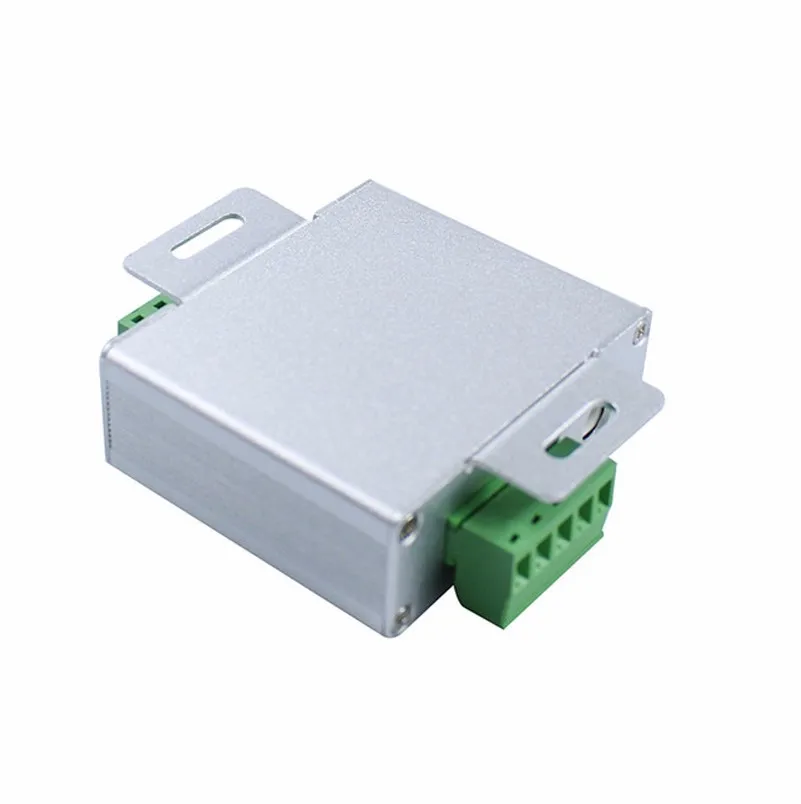

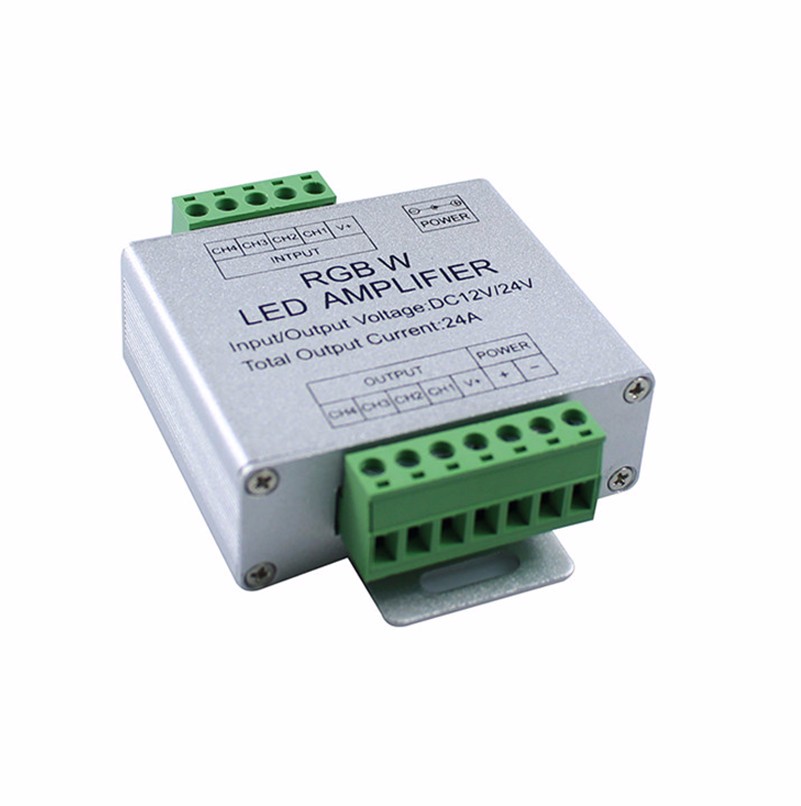

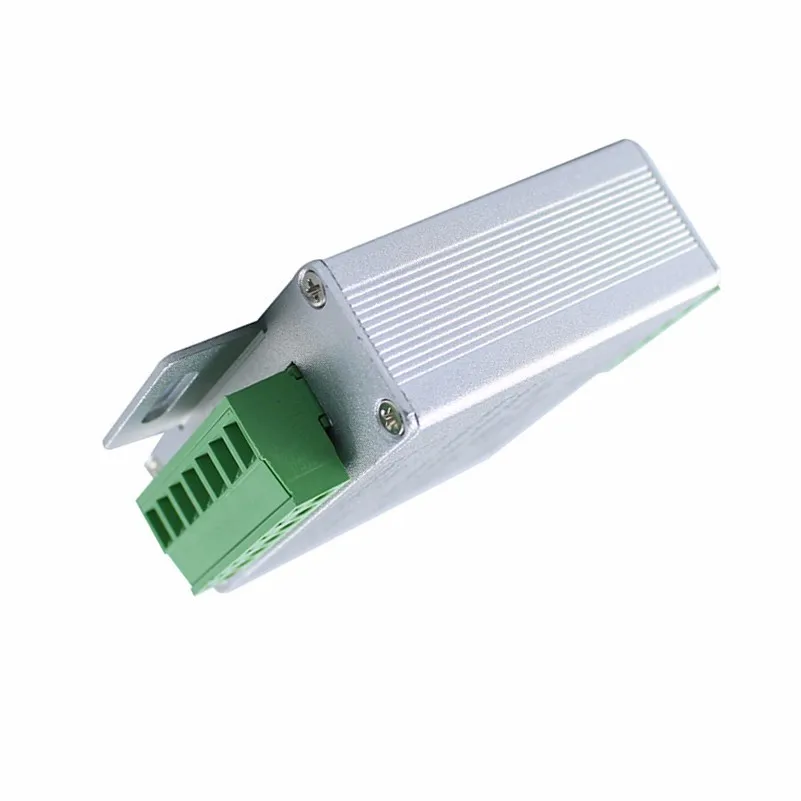

LED RGBW Amplifier DC12/ 24V 24A 4 Channel Output RGBW LED Strip Power Repeater Console Controller
RGBW amplifier applies to all the voltage-controlled LED controller in our company,
it can receives PWM(Pulse Width Modulation), each time add one RGBW amplifier,
the connecting number of led will be more than twice, in theory, numerous RGBW amplifiers can be connected.
Specification:
working temperature: -20 to 60 degree
supply voltage: DC12V-24V
output: 4 circuit
connection mode: common anode

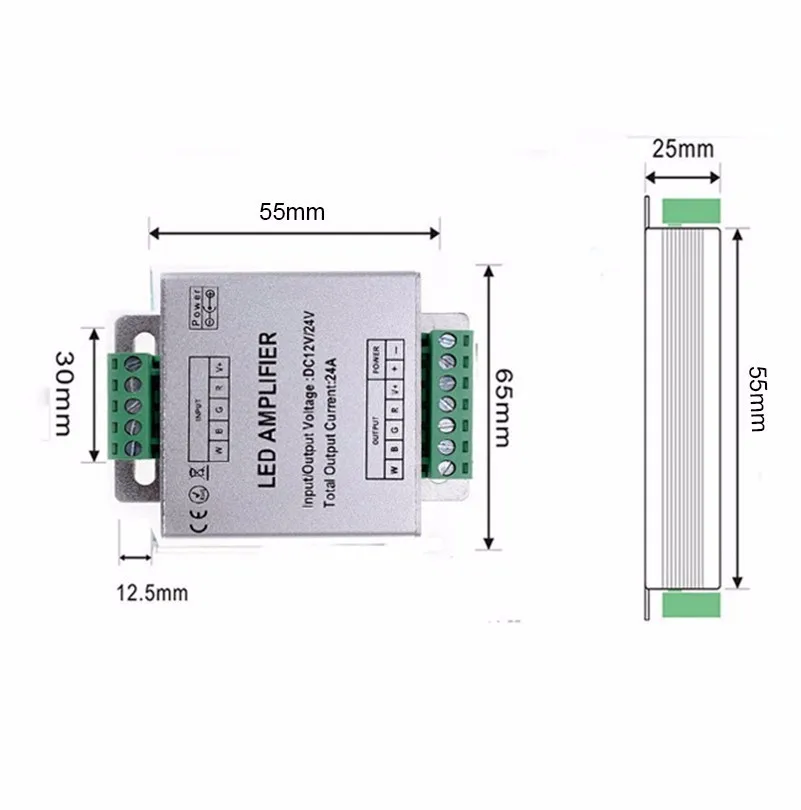

product dimension:L85*W65*H25mm
packing size: L95*W70*H40mm
net weight: 85g
gross weight: 125g
MAX. output power: max 288W(12V), max 576W(24V)
Package included:
1 pcs Aluminum RGBW Amplifier
