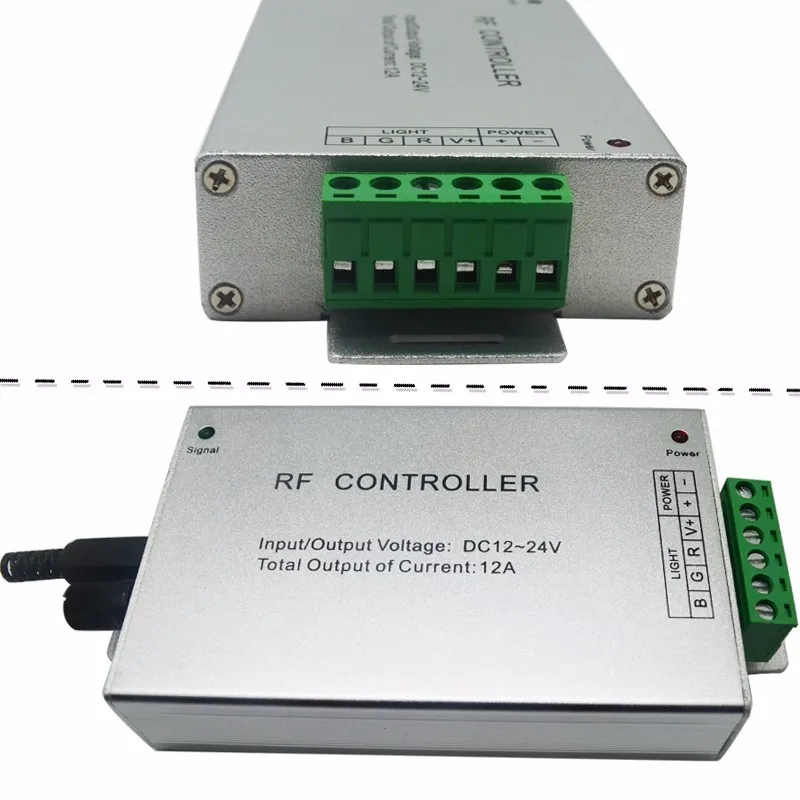

RGB 15-20m Remote Distance DC 12-24V 3*4A LED RGB RF 18 Keys Music sound Audio Controller

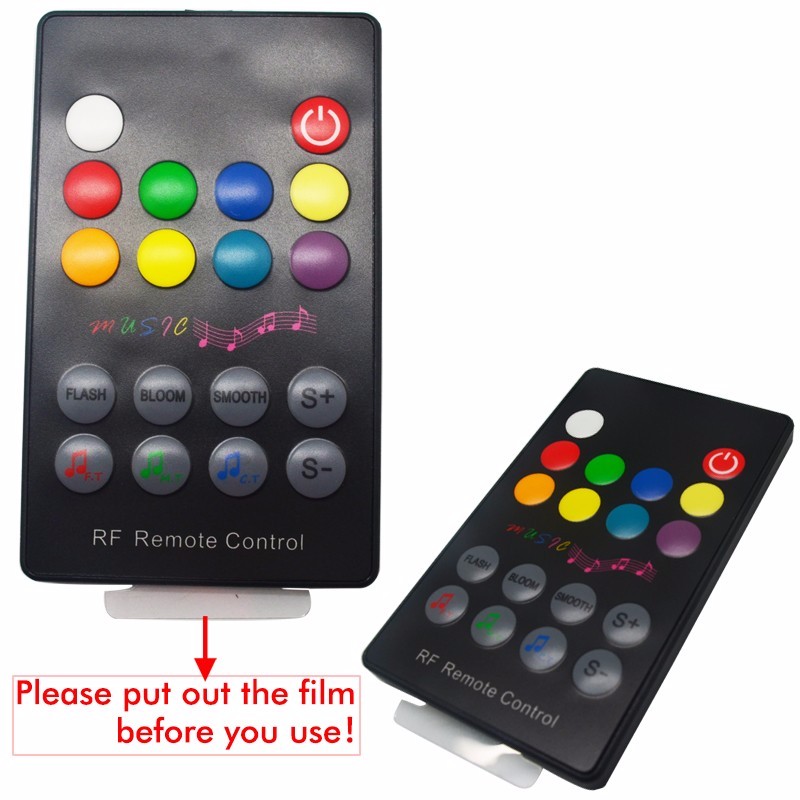

18 Key RGB Led Music Controller DC12V 24V Audio Sound 3 Channel*4A 12A RF 433.92mhz Wireless Remote to Control Strip Light
Specification
rgb music led remote controller
Working temperature | -20 to 60 degree |
Working voltage | DC12-24V |
Package Size | L137 W80 H54 mm |
RF Signal Frequency | 433.92Mhz |
Modes | 14 kinds |
Transmission distance | 20m |
Connect way | Common anode |
Max Current | 4A*3 channel |
Max Load | 12V<144W; 24V<288W |
Introduction;
This rgb music sound led remote controller is Widely used for DC12-24V led strips ,
modules, and string lights.This is controlled by advanced PWM technology.
Output load is +RGB, adopt RF wireless . 14 levels modes, including 8 kinds of Static modes
3 kinds of dynamic modes and 3 levels of music control.have the Memory storage function
