rf touch panel remote rgb led wifi programmable led light controller
This touch remote control panel RGB controller adopted the advanced touch technology,
Mainly used to control all kinds of constant volage led products, such as LED source, flexible strip,
wall washer, glass curtain wall light and so on. User can choose different changing mode,
adjust the speed and brightness,turn on/off by the remote control according to their preference .
This controller is with power off memory function, next time to used it, will start with the model it save.
Its built-in 7 kinds of static color, jump, fade, strobe,flow, automatic cycle and others effect.
Agile wiring, easy connection and simple to used is the representative advantages of this
controller. Besides,This controller is with short circuit protection function,when meet short
circuit, its green indicating light will be twinkling in a fixed frequency to indicate the user.
what"s more,Its with automatically restore function after short circuit protection,this
personalized design can make the user experience another different sense.
Technical Parameters:
Controller
Working temperature: -20-60
Supply voltage: DC12-24V
Output: 3 channels
Connection mode: common anode

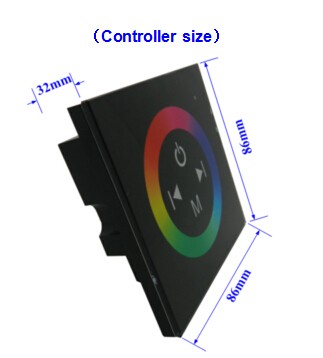

External dimension: L86 Χ W86 Χ H32 mm
Net weight:172g
static power consumption:<1W
output current: <4A( each channel )
output power: 12V:<144W,24V:<288W
Remote
Working temperature:-30~+60
Power supply mode: AAA batteries *3pcs
Supply voltage:3V
Standby power consumption:<0.09mW
Remote control distance:>20m

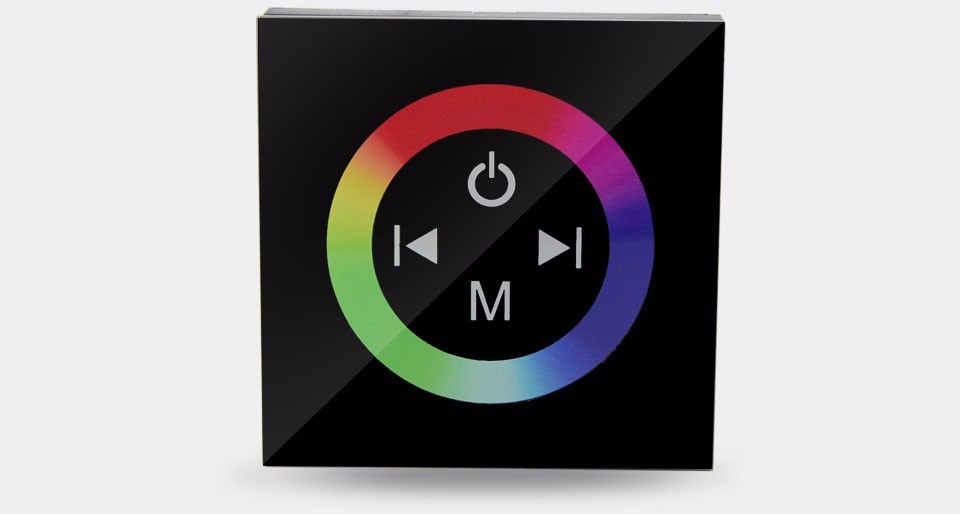

photo show:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
2-3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not
urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers"questions;
2. If anything goes wrong with the products"quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its;
temperature after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box pack
ndl
1.Payment terms: 30% TT before production, full payment before delivery.
2.Delivery time:5-30days after payment.
3.Shipping port: Shenzhen or buyer’s customized port.
4.Tracking number will be sent to you once we ship out the goods.
5.Disounts are negotiable according to large quantities.
6. 1piece/color box,then seveval in export carton . led
