Introduction:

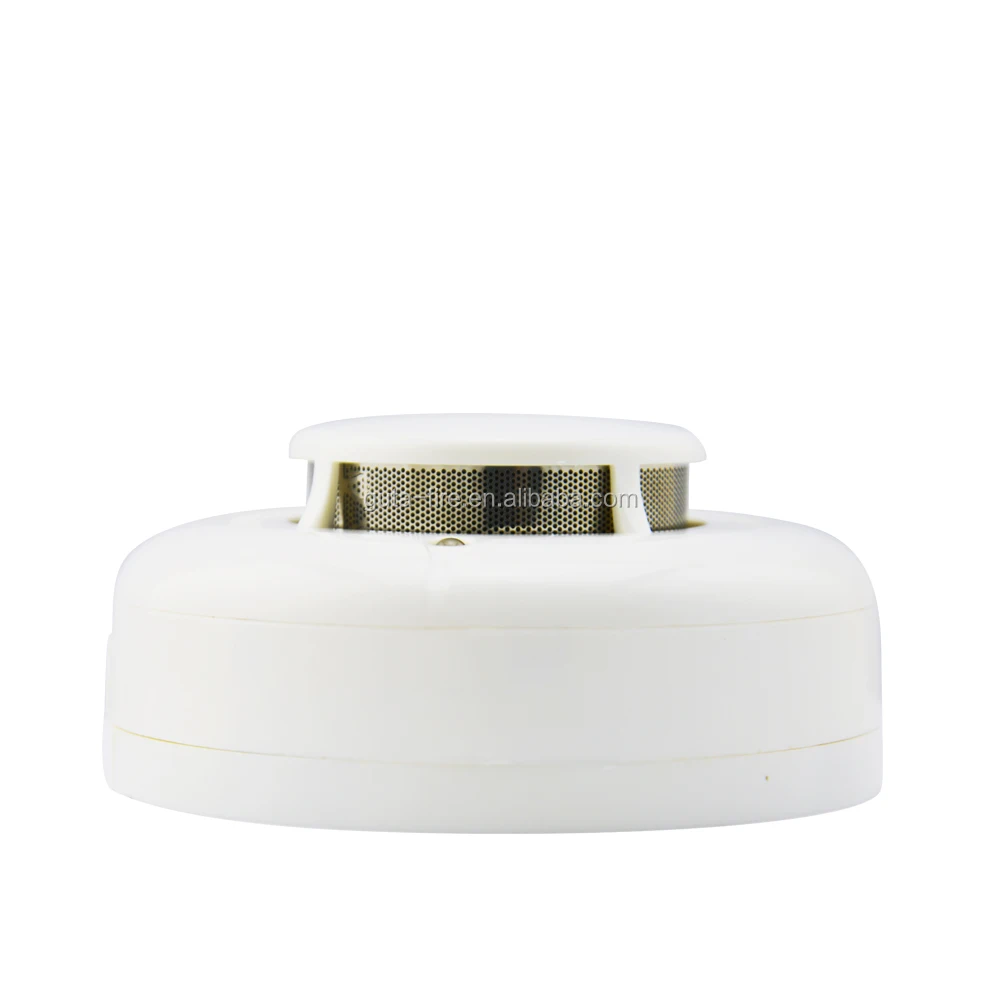

Asenware AW-D101 smoke detector is an intelligent smoke detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific ID, which allows the panel to continuously monitor specific detector location (point). It reduces the maintenance cost
and makes it easier to maintain the system.
Features
• Addressable-analog communication
• Low standby current for continuous monitoring (≤2.5mA)
• Two-wire connection
• Two LEDs (RED), blinks in normal condition and becomes stationary during fire
• Remote test from Panel
Spacing
Spacing of detector must be followed by standard EN 54 or NFPA 72. NFPA 72
suggests for low airflow application spacing of 9.1 m for ceiling height up to 3.15 m can
be applicable. However, please follow the specific codes and local codes for specific
applications.
| Model No. | AW-D101 |
| Operating Voltage Range | 18V-28VDC |
| Work Current | ≤2.5mA |
| Temperature | -10℃ to 50℃ |
| Smoke Sensitivity | 0.2-0.3 dB/m |
| Standard Number Ref | EN 57-7:2000 |

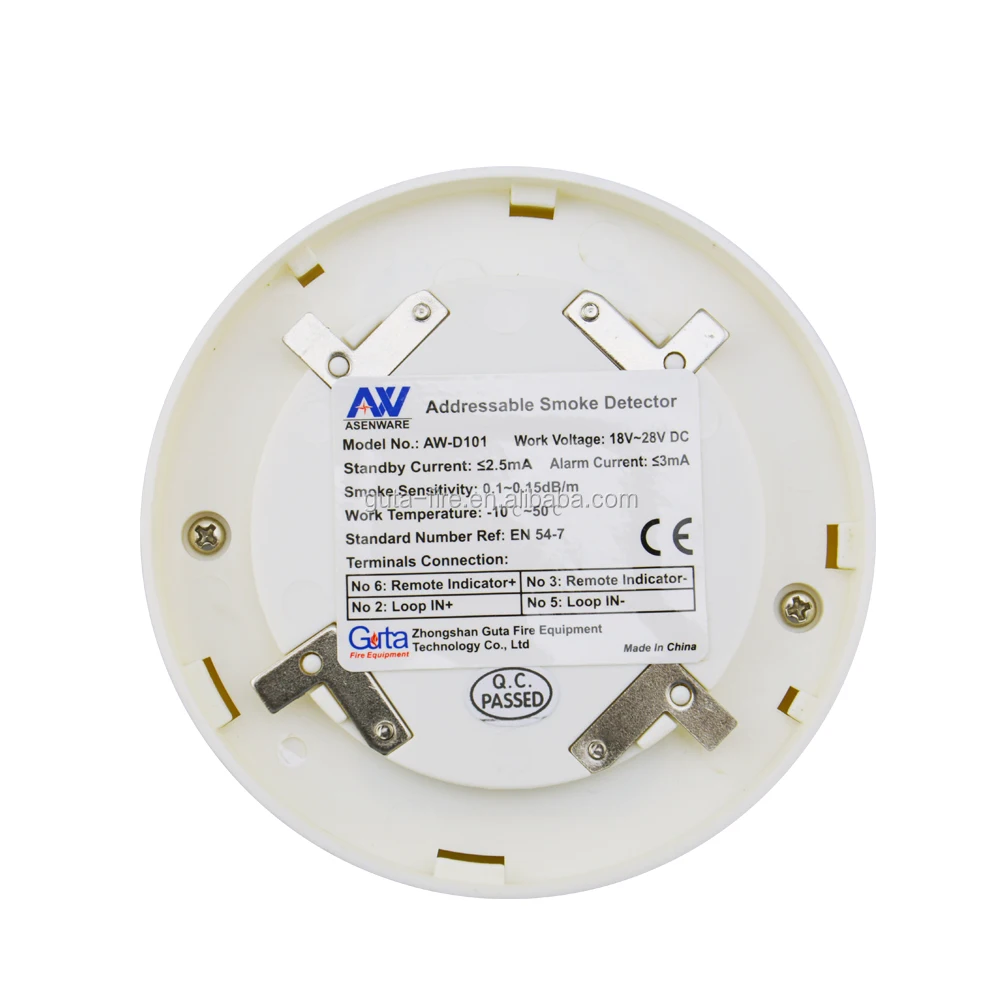

| Terminals Connection | No 6: Remote Indicator+ |
| No 3: Remote Indicator- | |
| No 2: Loop IN+ | |
| No 5: Loop IN- |
Installation

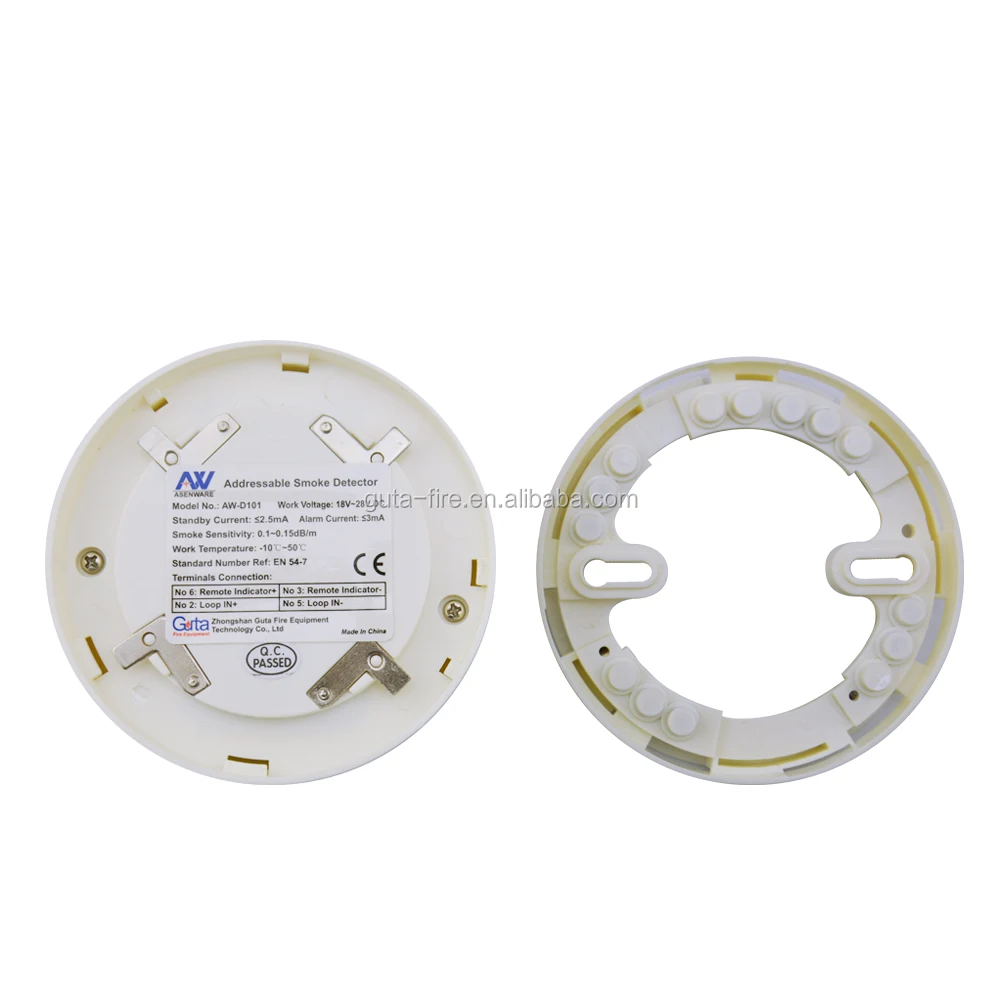

AW-D101 addressable detector use a separate base to simplify the installation and
maintenance. For proper installation, terminal connections to be followed as shown
below.
