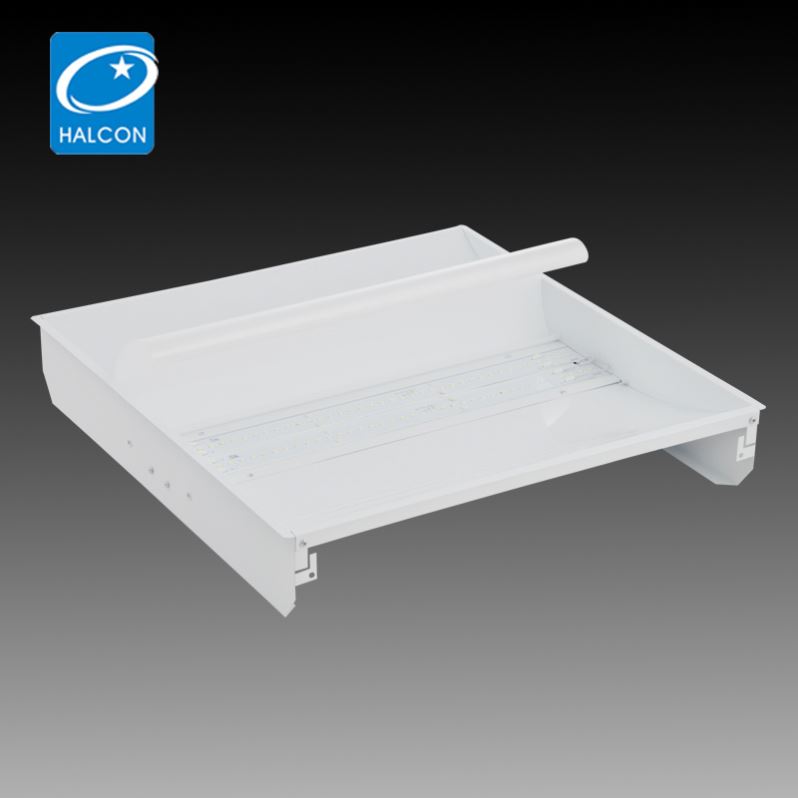

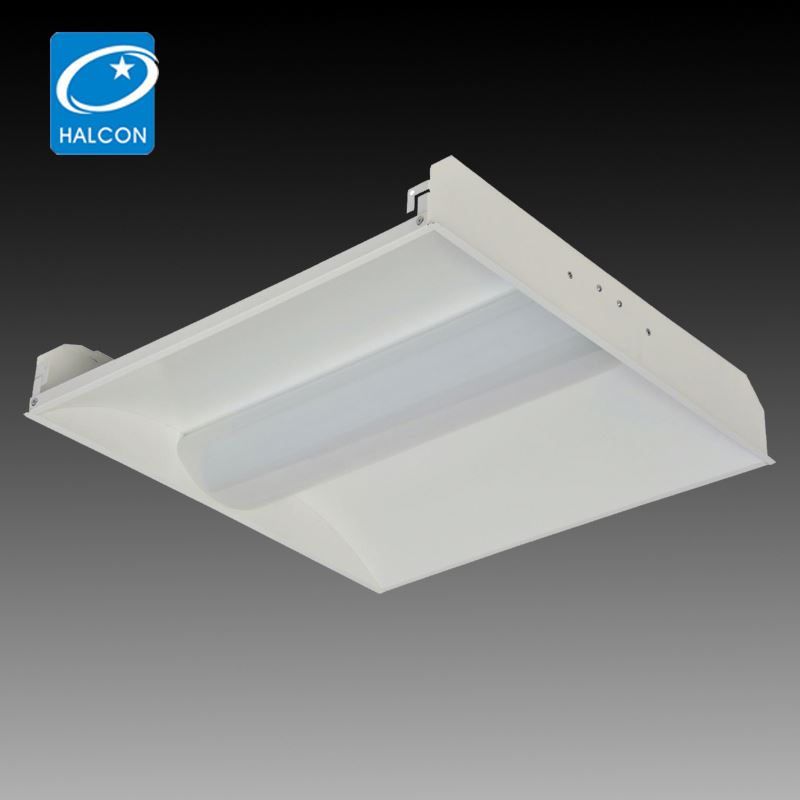

LED troffer lights
ITEM NO.: HG-L249
| Specifications: |
| Housing: 0.6mm steel sheet with high quality pwoder coated |
| Lens: High transfer Milk Acrylic material |
| Installation: Recessed mounted |
| Electrical Components: |
| Wattage: 36W/42W/50W |
| LED type: SMD2835,0.2W Famous brand led chip |
| Lumen: 110 lm/W |
| Color Temperature: 3000K,4000K & 5000K |
| Lifetime: >50,000 hours |
| LED Driver: UL 120-277V LED Driver |
| Voltage: 120-277V/60Hz |
| Installation: Ceiling or wall mounted. |
| Model | Lamp | Lamp size | Package Size | pcs/ctn |
| HG-L249-36W | LED,36W | 605x605x85mm | 640x640x115mm | 1 |
| HG-L249-36W | LED,36W | 1210x305x85mm | 1240x340x115mm | 1 |
| HG-L249-42W | LED,42W | 1204x604x85mm | 1240x640x115mm | 1 |
| HG-L249-50W | LED,50W | 1204x604x85mm | 1240x640x115mm | 1 |
| HG-L249-68W | LED,68W | 1204x604x85mm | 1240x640x115mm | 1 |
ITEM NO.: HG-L248
| Specifications: |
| Housing: 0.6mm steel sheet with high quality pwoder coated |
| Lens: High transfer Milk Acrylic material |
| Installation: Recessed mounted |
| Electrical Components: |
| Wattage: 36W/42W/50W |
| LED type: SMD2835,0.2W with famous brand led chip |
| Lumen: 110 lm/W |
| Color Temperature: 3000K,4000K & 5000K |
| Lifetime: >50,000 hours |
| LED Driver: UL 120-277V LED Driver |
| Voltage: 120-277V/60Hz |
| Installation: Ceiling or wall mounted. |
| Model | Lamp | Lamp size | Package Size | pcs/ctn |
| HG-L248-36W | LED,36W | 604x604x75mm | 640x640x95mm | 1 |
| HG-L248-42W | LED,42W | 1204x604x75mm | 1240x640x95mm | 1 |
| HG-L248-50W | LED,50W | 1204x604x75mm | 1240x640x95mm | 1 |
Trade Terms: FOB Zhongshan
Shipping:By sea/by air/by DHL,Fedex,UPS and so on
Ports: Zhongshan, Shenzhen, Yantian, Shekou, Guangzhou
Payment terms:T/T /L/C at sight
Sample: availiable
Production capacity:1000pcs/day
MOQ:100PCS
Sampe lead time:7-10 working days after receipt of payment
Delevery time:30-35 working days after receipt of deposit
Packing:Export carton with foam
Halcon is a middle-scale size factory but with professional engineer team for working with all clients from the industry,Architectural,Retail,Display&commercial using markets like super store,office and goverment buildings,Halcon can design and produce all kinds of lighting products which consists of Iron aluminum parts&plastic parts etc.
The high bay lighting is widely used in the exhibition hall, shopping mall, warehouse, workshop, stadium, office,suppermarket,gymnasium etc.
