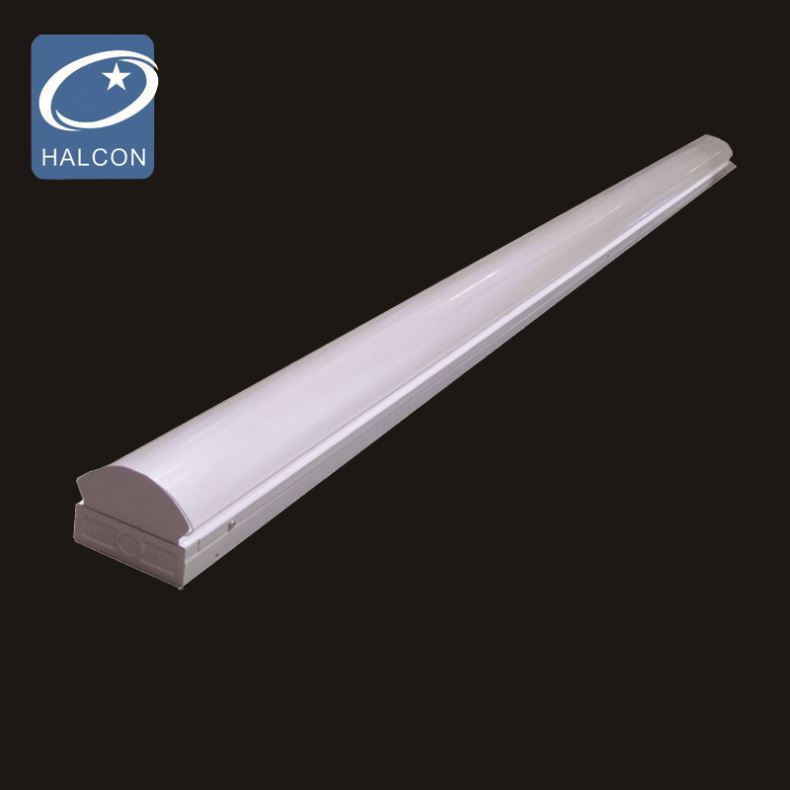

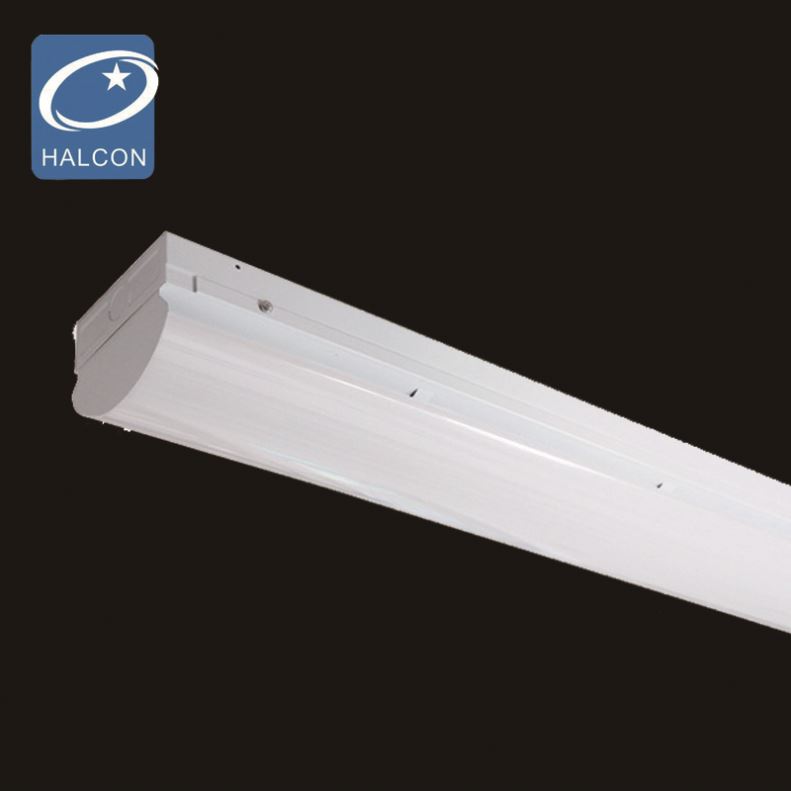

LED linear batten light
| Specifications: |
| Housing: 0.5mm thickness iron sheet with white powder coated. |
| Diffuser: 2.6mm thickness LED Frosted prismatic Acrylic material |
| End Caps: White ABS material |
| Electrical Components: |
| Wattage:40W,63W,85W |
| LED type: SMD2835, famous brand led chip |
| Lumen: 110 lm/W |
| Color Temperature: 3000K, 4000K & 5000K |
| Lifetime:50,000 hours |
| LED Driver: UL listed 0-10 dimmable LED driver |
| Voltage: 120-277/60Hz |
| Installation: Ceiling or wall mounted. |
LABELS
ETL and cETL Listed, approved for dry/damp location unless otherwise noted
OPTIONS:
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
LED SYSTEM
| Model | Lamp | Lamp size | Package Size | pcs/ctn |
| HG-L206-24W | LED,24W | 1219x115x90mm | 1210x365x240mm | 6 |
| HG-L206-40W | LED,40W | 1219x115x90mm | 1210x365x240mm | 6 |
| HG-L206-63W | LED,63W | 2419X115x90mm | 2410x365x240mm | 6 |
| HG-L206-85W | LED,85W | 2419X115x90mm | 2410x365x240mm | 6 |
Trade Terms:
Trade Terms: FOB Zhongshan
Shipping:By sea/by air/by DHL,Fedex,UPS and so on
Ports: Zhongshan, Shenzhen, Yantian, Shekou, Guangzhou
Payment terms:T/T /L/C at sight
Sample: availiable
Production capacity:1000pcs/day
MOQ:100PCS
Sampe lead time:7-10 working days after receipt of payment
Delevery time:30-35 working days after receipt of deposit
Packing:Export carton with foam
Remarks:
1. Halcon’s business principle: honesty, efficiency, sincerity
2. Advantage: designer with over 5 years’ experience + strict control on quality +
direct factory price + excellenct commnication group
