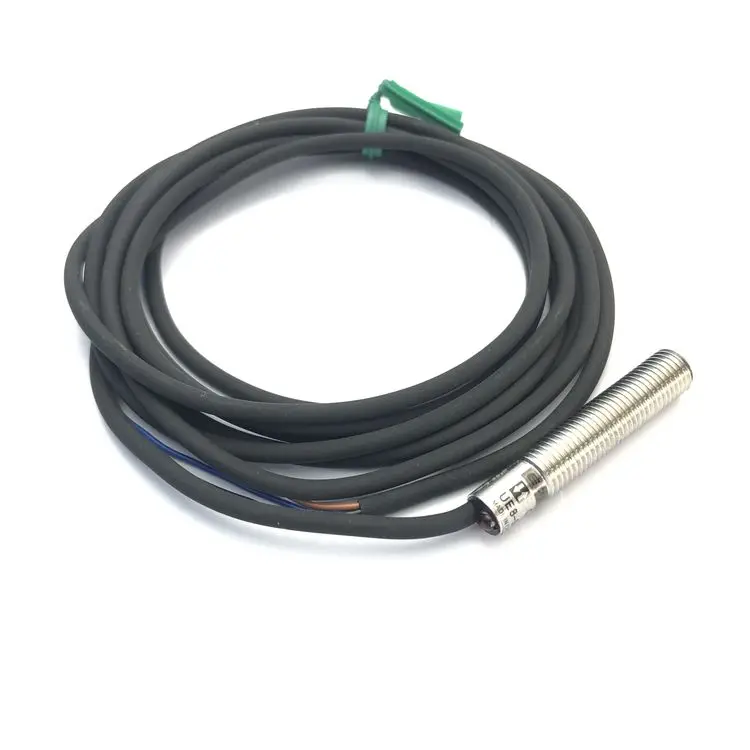

Photoelectric beam UE8-D30N diffuse reflective infrared sensor photoelectric
|
Model |
UE8-D30N |
|
Type |
Diffuse reflection sensor |
|
Brand |
HEYI |
|
Usage |
objection location detection |
|
Detection distance
|
30mm (white paper 30*30mm)
|
|
Movement Differential
|
20% or lower than the detection distance
|
|
Light source
|
Infrared diode(940nm)
|
|
Power voltage
|
DC 12 -24 V ± 10% pulsation (p-p) 10% lower
|
|
current consumption
|
lower than 30mA
|
|
Output control
|
The voltage of the load power supply is below DC24V,
load current is below 80mA,
(The residual voltage is below 1V)
NPN type voltage output
|
|
Circuit protection
|
Power reverse link protection/Output short circuit protection/Mutual interference prevention
|
|
Response time
|
Action or reset below 30ms
|
|
Lighting
|
Incandescent lamp 3,000lx, Sunlight 10,000lx
|
|
Ambient temperature
|
working temperature: -25 to 55 °C, preservation temperature: -30 to 70 °C (Non freezing or dew) |
| Ambient humidity | working temperature: 35 to 85 % RH, preservation temperature: 35 to 95% RH (Non freezing or dew) |
|
Insulation resistance
|
more than 20MΩ (DC500V)
|
|
Voltage resistance
|
AC500V |
|
Anti vibration resistance
|
10-55Hz, Up and low amplitude 1.5mm, each 2 hour for X,Y, Z
|
|
Impact resistance
|
500m/s X, Y , Z 3 times in each direction
|
|
Protective structure
|
IEC standard IP66
|
|
Connection mode
|
Wire extraction type, standard wire length 2m
|
|
Weight
|
about 80g
|
|
Case material
|
Stainless steel
|
SIZE DIAGRAM
