Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG16000SE3
- Rated Voltage:
- 220/380, 230/400V
- Rated Current:
- 15A
- Speed:
- 3000RPM
- Frequency:
- 50Hz
- Product Name:

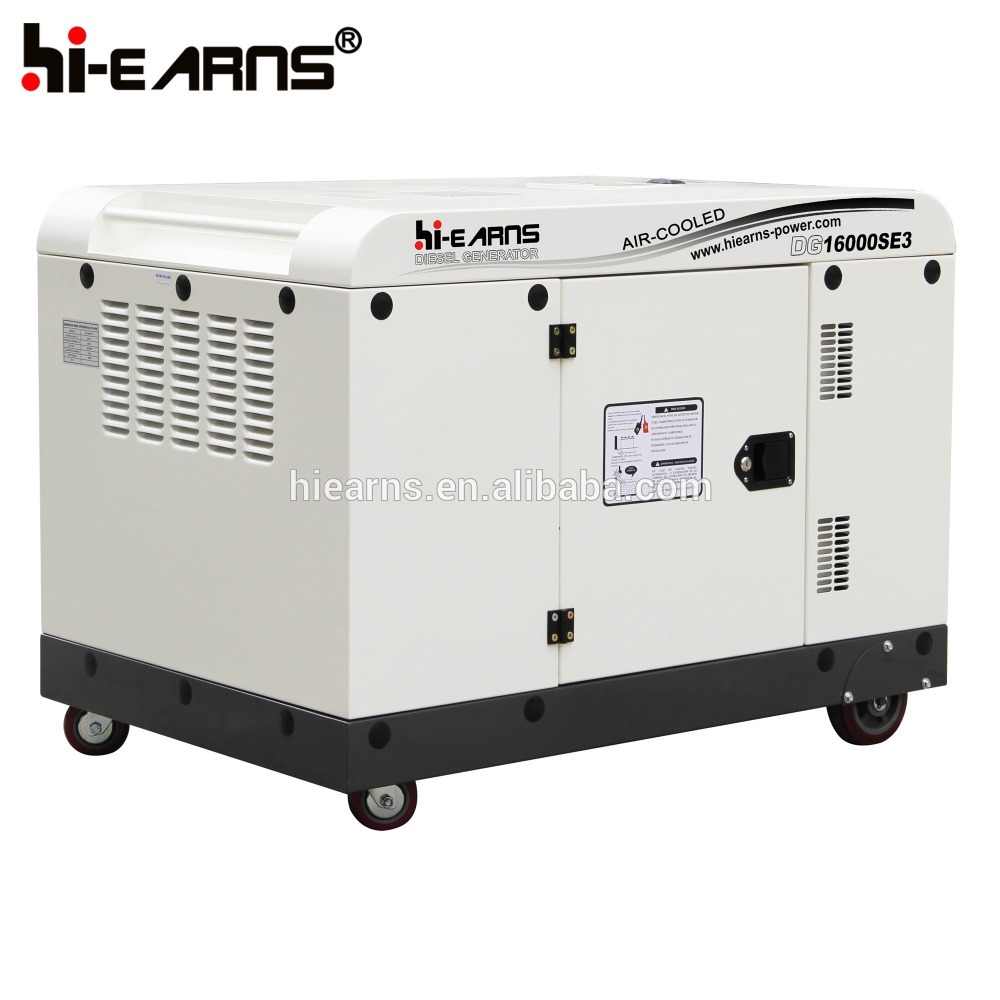

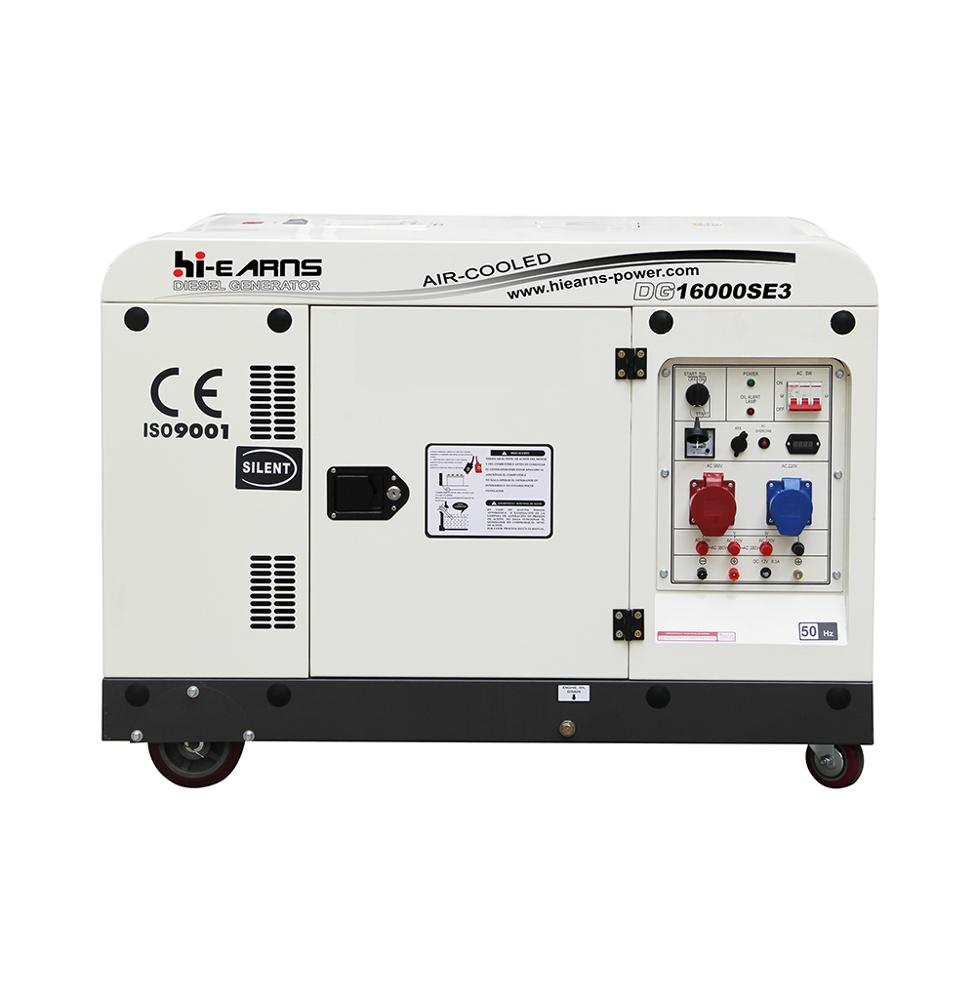

- 10KW silent diesel generator
- hour meter, three phase, wheels:
- optional, depend on you
- panel:
- normal or digital, depend on you
- rated output:
- 10KW
- max. output:
- 12KW lester diesel generator
- portable type:
- with four wheels, portable
- automatic machine:
- with automatic transfer switch
- Warranty:
- 1 Year
- Certificate:
- CE, ISO
- Alternator:
- 100% Copper
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 122X82X93 cm
- Single gross weight:
- 360.0 kg
- Package Type:
- carton with plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 5 >5 Est. Time(days) 15 20 To be negotiated
Related Products
Main product
| GENERATOR | Model | DG16000SE3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 11 | 12 | |
| Rated output(kw) | 10 | 11 | |
| Rated. AC voltage(v) | 120, 220, 230, 240, 220/380, 230/400 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase / three phase | ||
| Alternator type | self-excited, 2-pole alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR2V92F | |
| Engine type | Twin-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 92× 75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 4 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 1220× 820× 930 | |
Net weight(kg)36020FT22
♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-1000KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor,
concrete cutter, power trowel, farm machinery and so on
♦ Use famous brand spare parts
♦ ISO, CE, GS approved supplier
♦ One year warranty, complete spare parts for after-sales services
♦ Low price with good quality, reliable performance
♦ Easy to start and operate, convenient to move
♦ Low fuel consumption, easy maintenance
♦ Our logo or OEM
