Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG6500SEW
- Rated Voltage:
- 220V
- Rated Current:
- 0-180A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 60HZ
- Product Name:
- 2KW diesel welder generator
- Main function:
- Welder
- Welding current:
- 0-180A
- Welding rod diameter:
- 3.2mm-4.0mm
- Alternator:
- 100% copper wires
- Engine:
- 186FA
- Color:
- Request
- Certificate:
- CE/ISO9001
- Warranty:
- 1 Year
- Options:
- Customer's Logo
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- carton with wooden plate
- Port
- FOB SHANGHAI
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 15 >15 Est. Time(days) 20 To be negotiated
Related Products

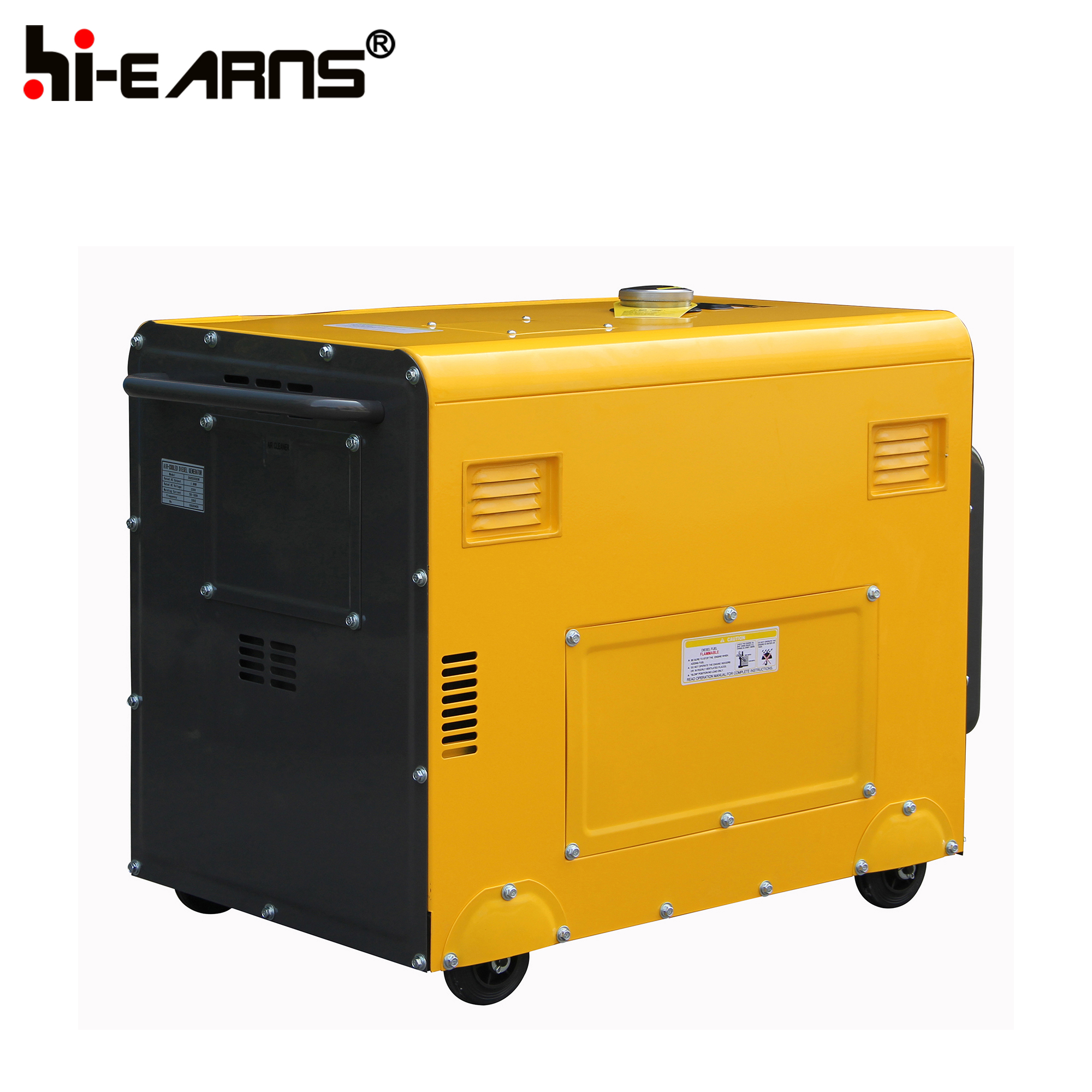

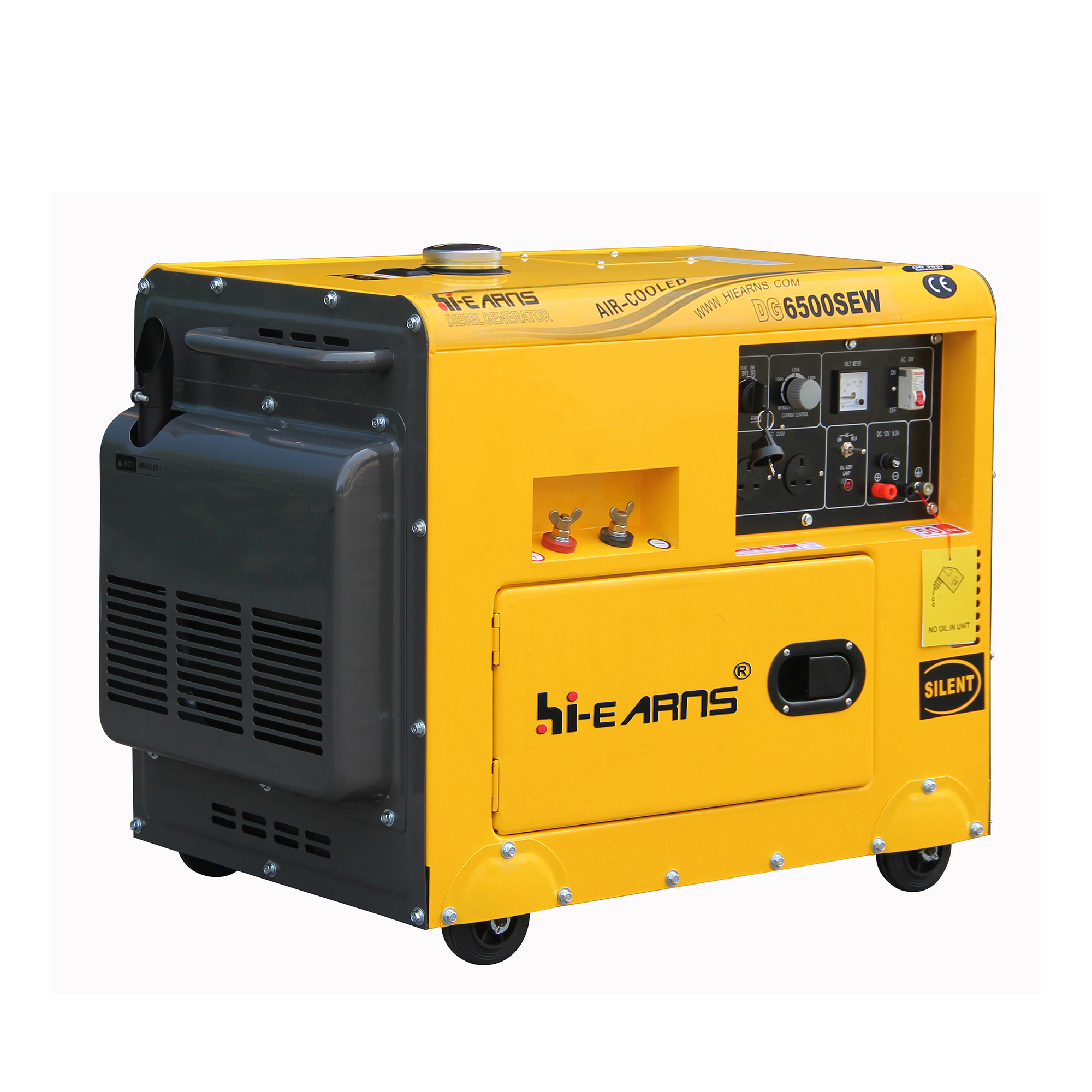

2KW Air-cooled single cylinder silent type diesel welder generator
GENERATOR
| Model | DG6500SEW | |
| Frequency(HZ) | 50 | 60 | |
| Rated.AC voltage(V) | 230 | 220 | |
| Rated current(A) | 7.8 | 9.1 | |
| Rated output(KVA) | 1.8 | 2.0 | |
| Rated speed(rpm) | 3000 | 3600 | |
WELDER | Welding no-load voltage(V) | 55-65 | |
| Working voltage(V) | 26-30 | ||
| Rated current (A) | 160 | ||
| Range of current(A) | 0-180 | ||
| Welding efficiency | 60% | ||
| Power factor (cosΦ ) | 1 | ||
| Phase | 1 | ||
| Noise level(at 7m) | 68-72db | ||
ENGINE | Engine model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Displacement capacity(cc) | 418cc | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 520×760 | |
| Net weight(kg) | 160 | ||
| 20FT | 72 | ||
Silent air-cooled DG
