Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns genset
- Model Number:
- DG12000SE
- Rated Voltage:
- 110, 220, 230, 240V
- Rated Current:
- 39A
- Speed:
- 3000rpm
- Frequency:
- 50HZ
- engine:
- two cylinder 2V86 diesel engine
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric

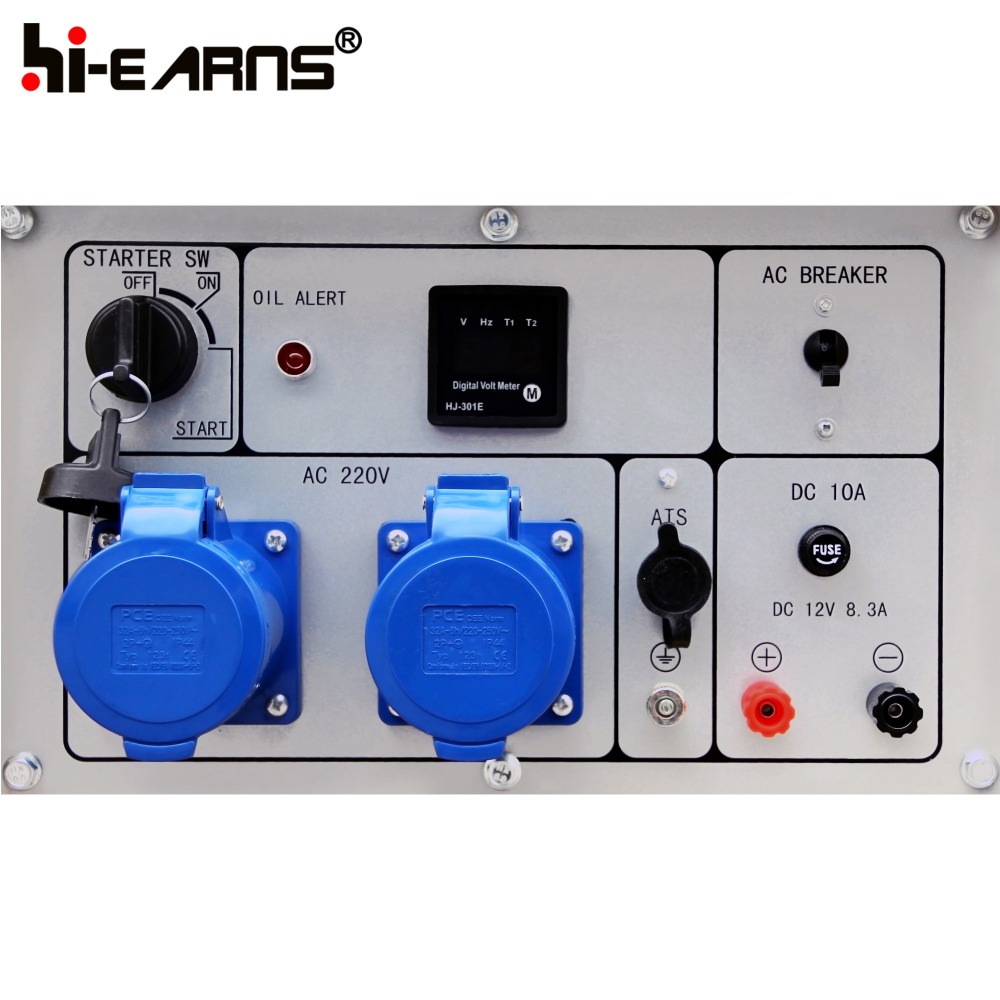

- Panel:
- Common/Digital panel/ATS
- Structure:
- Skylight/rings
- Whee1:
- 6inch wheel
- Design:
- New
- Noise:
- 75dB
- Power factor:
- 1
- Engine type:
- HR2V86F
Supply Ability
- Supply Ability:
- 200 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:125x75x89cm
Delivery time: 20 days
One 20FT can load 26 pcs.
One 40HQ can load 56pcs.
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 10 >10 Est. Time(days) 15 20 To be negotiated
Related Products
DG12000SE 9KW two-cylinder air-cooled diesel generator set
| GENERATOR | Model | DG12000SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 9 | 9.5 | |
| Rated output(kw) | 8.5 | 9 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 9.4 | 8.4 | |
| ENGINE | Model | 2V86 | |
| Engine type | Two-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.7 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 1230× 750× 840 | |
| Net weight(kg) | 305 | ||
| 20FT | 26 | ||
