Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hiearns
- Model Number:
- GF2-15000SE
- Rated Voltage:
- 220, 230, 240V
- Rated Current:
- 45.5A
- Speed:
- 1500rpm
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Singlephase
- Engine type:
- EV80
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:135X66X84cm
Delivery time: 20 days
One 20FT can load 24 pcs.
One 40HQ can load 75pcs.
- Port
- FOBshanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 10 >10 Est. Time(days) 15 20 To be negotiated
Related Products

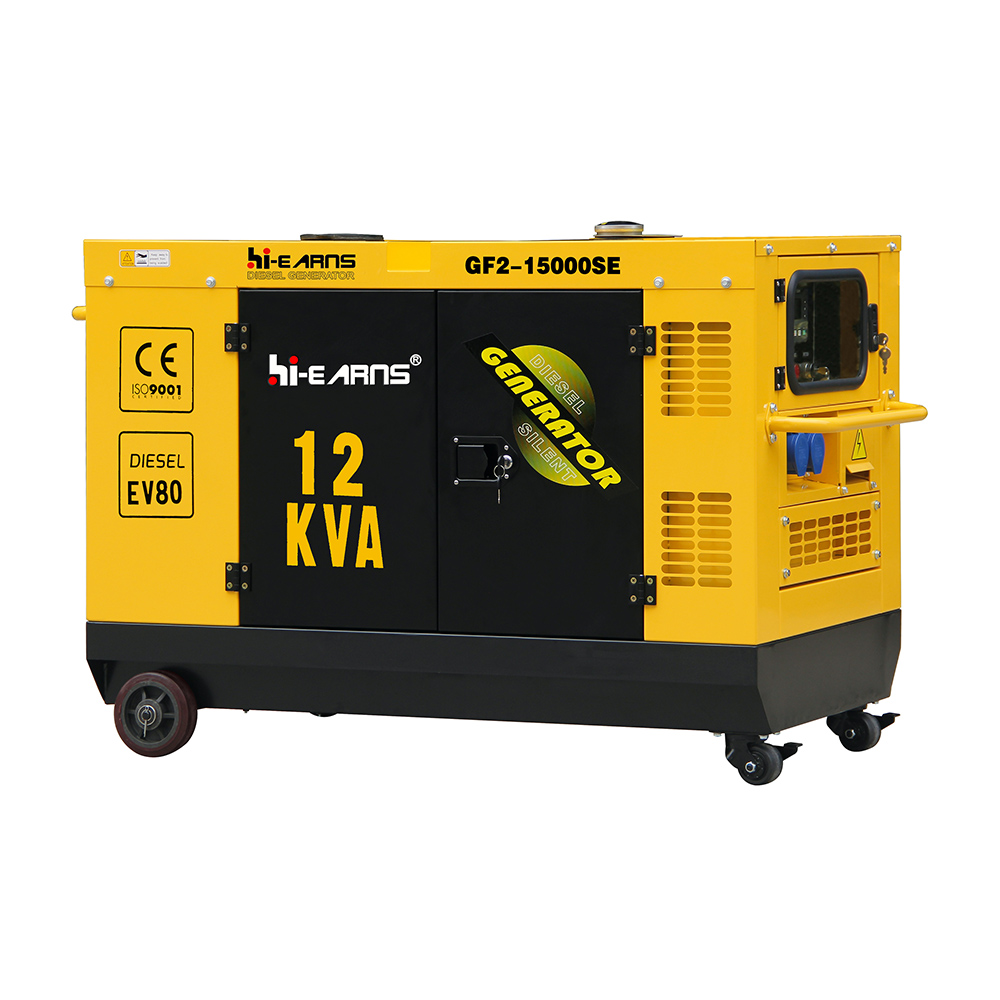

GF2-15000SE -10KW silent two cylinder water cooled diesel generator
| Model | GF2-15000SE | ||
| GENERATOR | Frequency (HZ) | 50 | 60 |
| Generator speed (rpm) | 3000 | 3600 | |
| Max.output (KW) | 10 | ||
| Rated output(KW) | 9 | ||
| Rated AC voltage(V) | 120, 220, 230, 240, 220/380, 230/400, 240/415 | ||
| Power factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Indicator light | 2pcs | ||
| Alternator type | Self-excited | ||
| Starting system | Electric | ||
| Noise level (Dba/7m) | 75dB | ||
| Fuel tank capacity (L) | 37 | ||
| Continuous running time (hr) | 11 | ||
| ENGINE | Engine model | EV80 | |
| Engine type | V-twin cylinder, 4-stroke water-cooled diesel engine | ||
| Bore×stroke (mm) | 80×79 | ||
| Displacement (cc) | 794 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication Oil Volume (L) | 2.3 | ||
| Fuel Consumption rate (g/kw.h) | 260 | ||
| Combustion System | Vortex type | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC output socket | 2 | ||
| AC circuit breaker | 4 | ||
| Oil warning light | YES | ||
| Oil alert | YES | ||
| 2×6 inch fixed wheels and 2×4 inch universial wheels | YES | ||
| OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | OPTIONAL | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| DIMENSIONS | Pack Dimention (LxWxH) (cm) | 128x71x91 | |
| Gross Weight (kgs) | 260 | ||
| Net Weight (kgs) | 255 | ||
| 20FT loading pcs | 26 | ||
| 40HQ loading pcs | 81 | ||
