1.silent, electric, with 36AH storage battery
2.low fuel consumption
3.with four solid wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

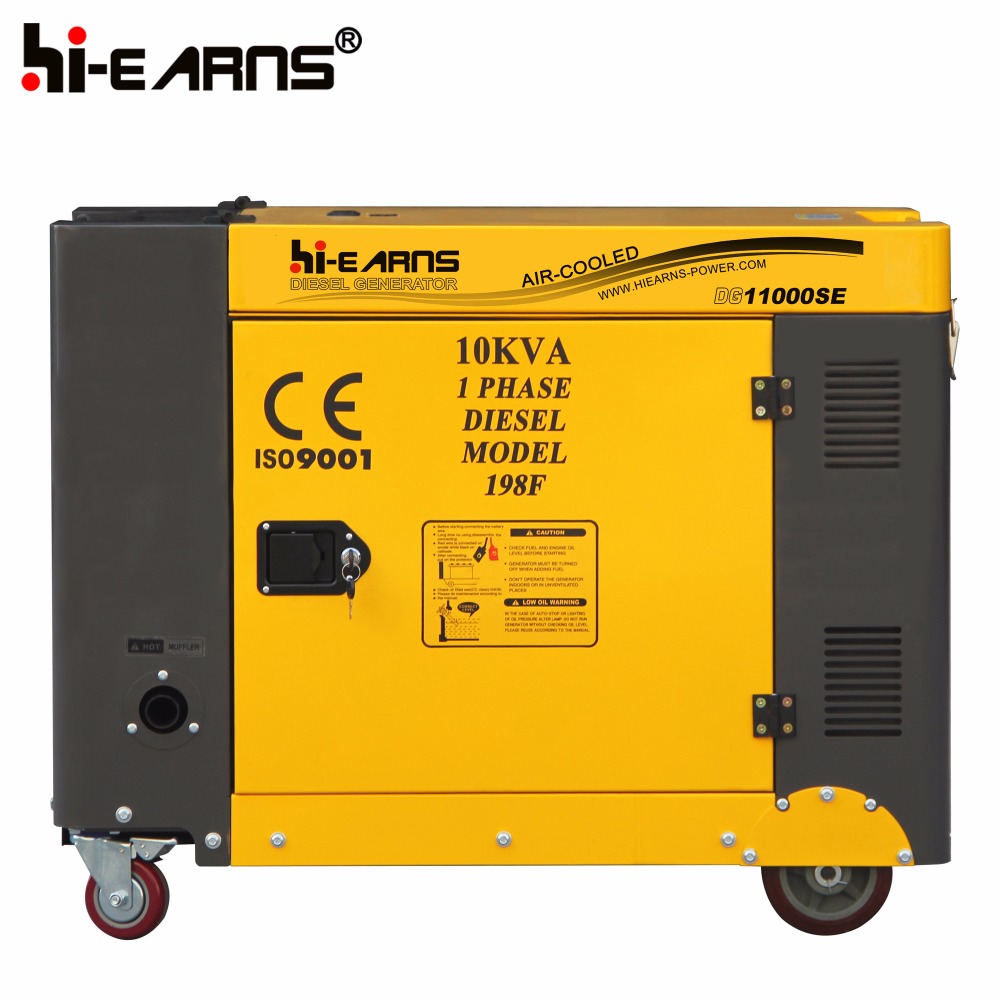

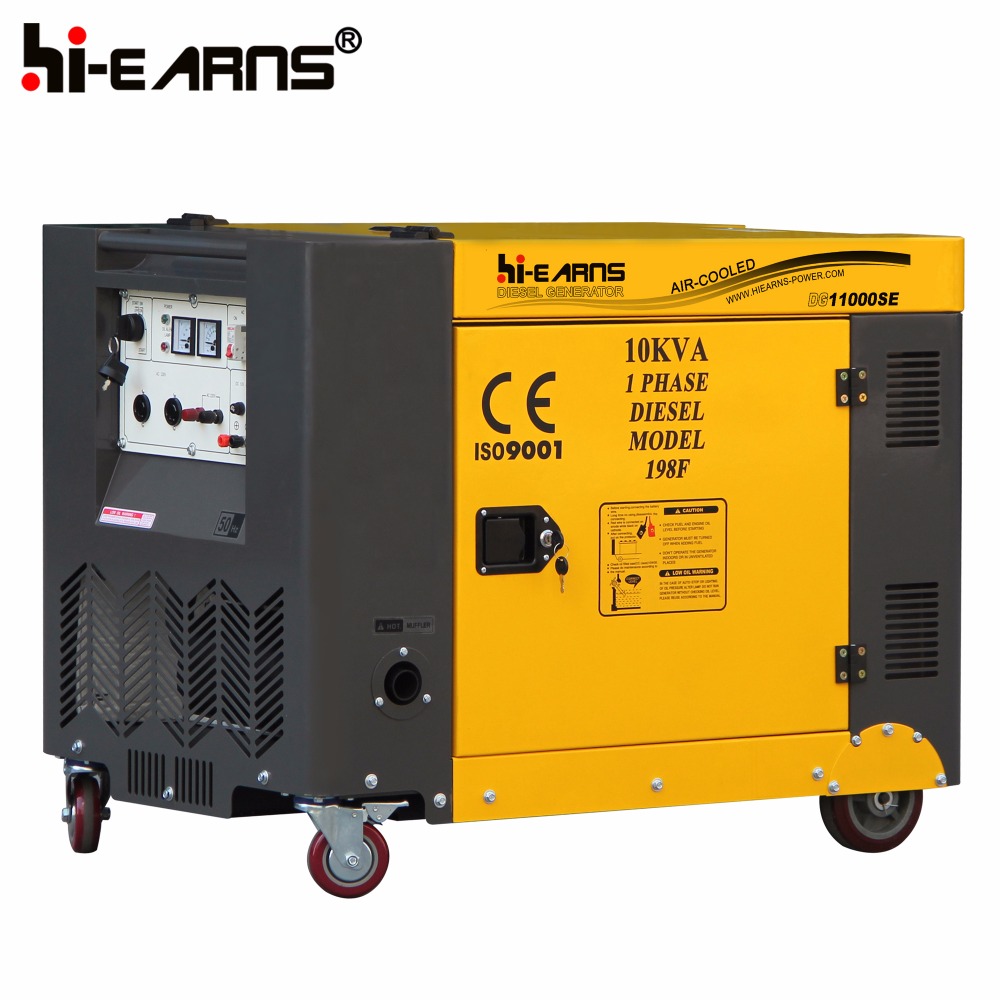

Air-cooled single cylinder diesel generator
| Model | DG11000SE | |
| Generator | Frequency(Hz) | 50 |
| Max. output(KW) | 8 | |
| Rated output(KW) | 7.5 | |
| Rated AC voltage(V) | 220,230,240,220/380,230/400 | |
| Power factor | 1 | |
| DC output(V/A) | 12/8.3 | |
| Phase | Single phase/Three phase | |
| Alternator type | Self-excited,2-pole, Single/ Three alternator | |
| Starting system | electric | |
| Noise level(7m)(dB) | 72-75 | |
| Fuel tank capacity(L) | 30 | |
| Continuous work(H) | 12 | |
| ENGINE | Engine Model | HR198FA |
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×Stroke | 98×84 | |
| Fuel Consumption rate g/kw/h | ≤230 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume(L) | 1.65 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Package size(LxWxH)(mm) | 106×72×87 |
| Net Weight(kgs) | 205 | |
| Gross Weight (kgs) | 225 | |
| 20FT loading pcs | 30 | |
| 40HQ loading pcs | 96 | |
