Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-40KW/50KVA
- Rated Voltage:
- 220/380V,230/400V,240/415V
- Rated Current:
- 76A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- 75dB
- Power factor:
- 0.8
- Phase:
- Three
- Engine type:
- YC4FA75L-D20
Supply Ability
- Supply Ability:
- 10 Set/Sets per Day
Packaging & Delivery
- Packaging Details
- Bubble wrap with plastic film or wooden with iron sheet
- Port
- Shanghai port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products

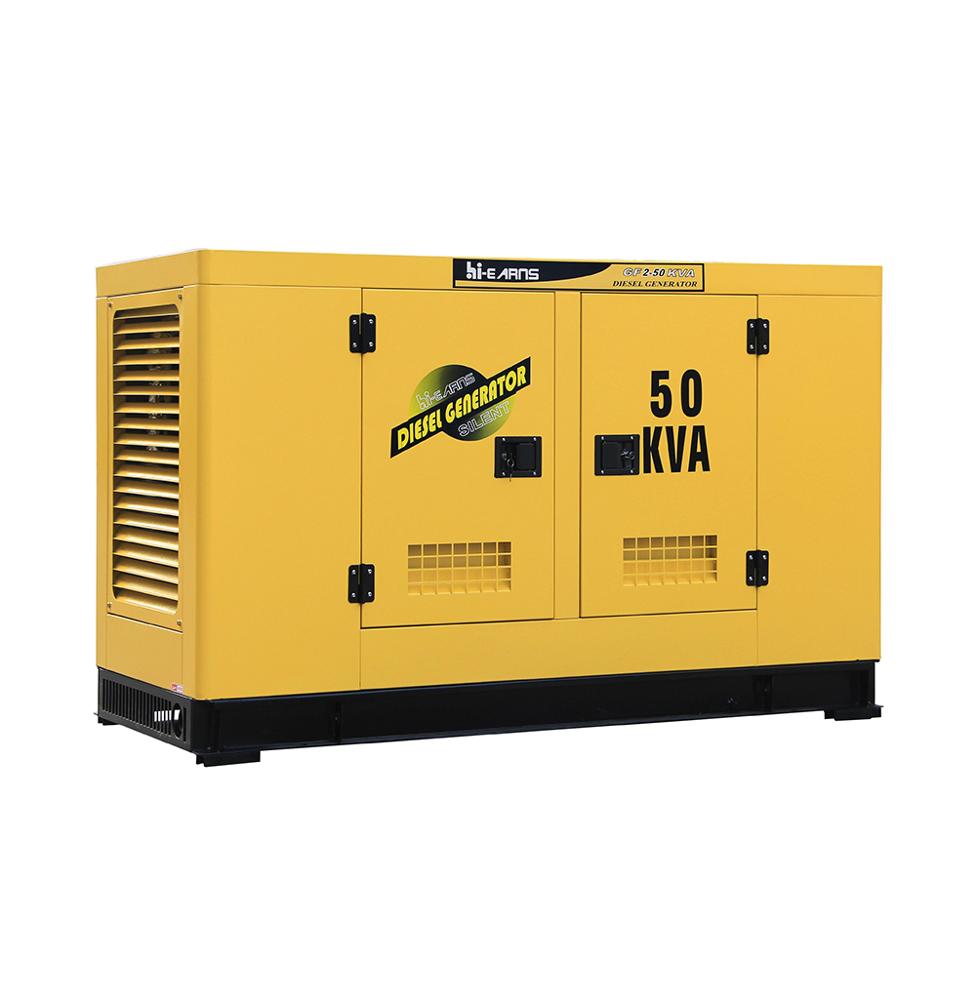

GF2-40KW/50KVA silent three phase water cooled diesel generator
| Voltage | Frequency (HZ) | Phase | Power factor | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 254/440 | 50 | 3 | 0.8 | 74 | 45/56 | 40/50 |
| 240/415 | 50 | 3 | 0.8 | 78 | 45/56 | 40/50 |
| 230/400 | 50 | 3 | 0.8 | 81 | 45/56 | 40/50 |
| 220/380 | 50 | 3 | 0.8 | 85 | 45/56 | 40/50 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Yuchai Engine YC4FA75L-D20 | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke (mm) | 96×103 | |||||
| Start Method | Electric Start | |||||
| Combustion Chamber Type | Direct Injection | |||||
| ALTERNATOR DATA | ||||||
| Power Factor | 0.8 | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:1.80(m)×0.75(m)×1.45(m) | Overall Size:2.40(m)×1.00(m)×1.45(m) | |||||
| Weight:930kg | Weight:1450kg | |||||
