Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-30KW/40KVA
- Rated Voltage:
- 220/380V,230/400V
- Rated Current:
- 57A
- Speed:
- 1500RPM
- Frequency:
- 50/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- 70-75dB
- Power factor:
- 0.8
- Phase:
- Three phase
- Engine type:
- 4105D
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 212X88X130 cm
- Single gross weight:
- 800.0 kg
- Package Type:
- Bubble wrap with plastic film or wooden case with iron sheet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products

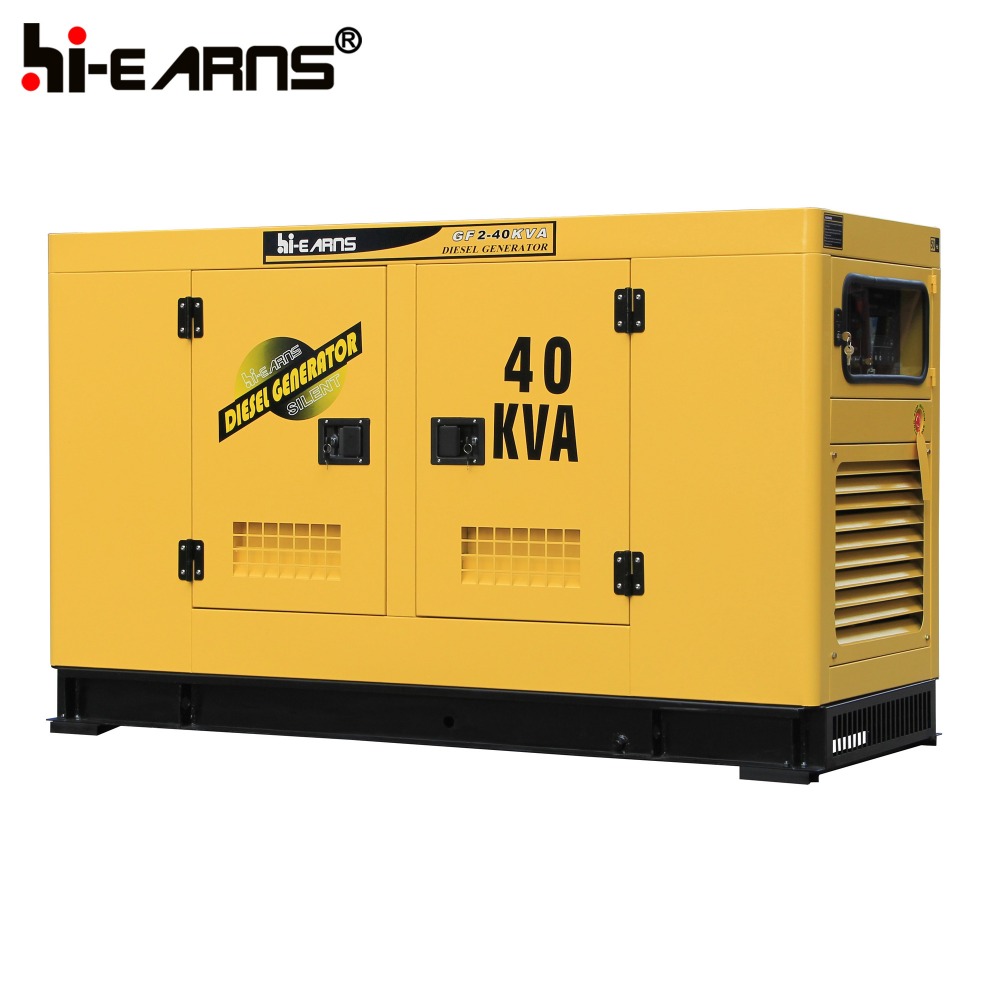

GF2-30KW silent three phase water cooled diesel generator
| MODEL | GF- 40KVA | |||||
| Standby Power (50HZ ) | 32KW / 40KVA | |||||
| Prime Power (50HZ ) | 30KW / 38KVA | |||||
| Voltage | Frequency (HZ) | Phase | P.F | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 415/240 | 50 | 3 | 0.8 | 56 | 32/40 | 30/37.5 |
| 400/230 | 50 | 3 | 0.8 | 58 | 32/40 | 30/37.5 |
| 380/220 | 50 | 3 | 0.8 | 61 | 32/40 | 30/37.5 |
| ENGINE DATA | ||||||
| Engine Type | Quanchai Engine 4105D. Four stroke,Water-cooled, Direct line | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption(≤g/kw.h) | ≤238 | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke (mm) | 105×118 | |||||
| Displacement (L) | 4.087 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation(g/kW·h) | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| Add Oil Capacity | 8L | |||||
| Alternator Data | ||||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size 1.9(m)×0.88(m)×1.18(m) | Overall Size 2.12(m)×0.88(m)×1.30(m) | |||||
| Net Weight 650kg | Net Weight 800kg | |||||
