Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-30KW/GF2-40KVA
- Rated Voltage:
- 220/380V,230/400V
- Rated Current:
- 57A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- 70-75dB
- Power factor:
- 0.8
- Phase:
- Three phase
- Engine type:
- K4100ZD
Supply Ability
- Supply Ability:
- 20 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- 1.PACKAGE METHOD:
Wooden with plastic films or bubble wrap with plastic film and wooden plate.
2.DELIVERY TIME:25days.
3.WARRANTY:One year.
4.20FT can load 6pcs, 40HQ can load 26pcs.
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products

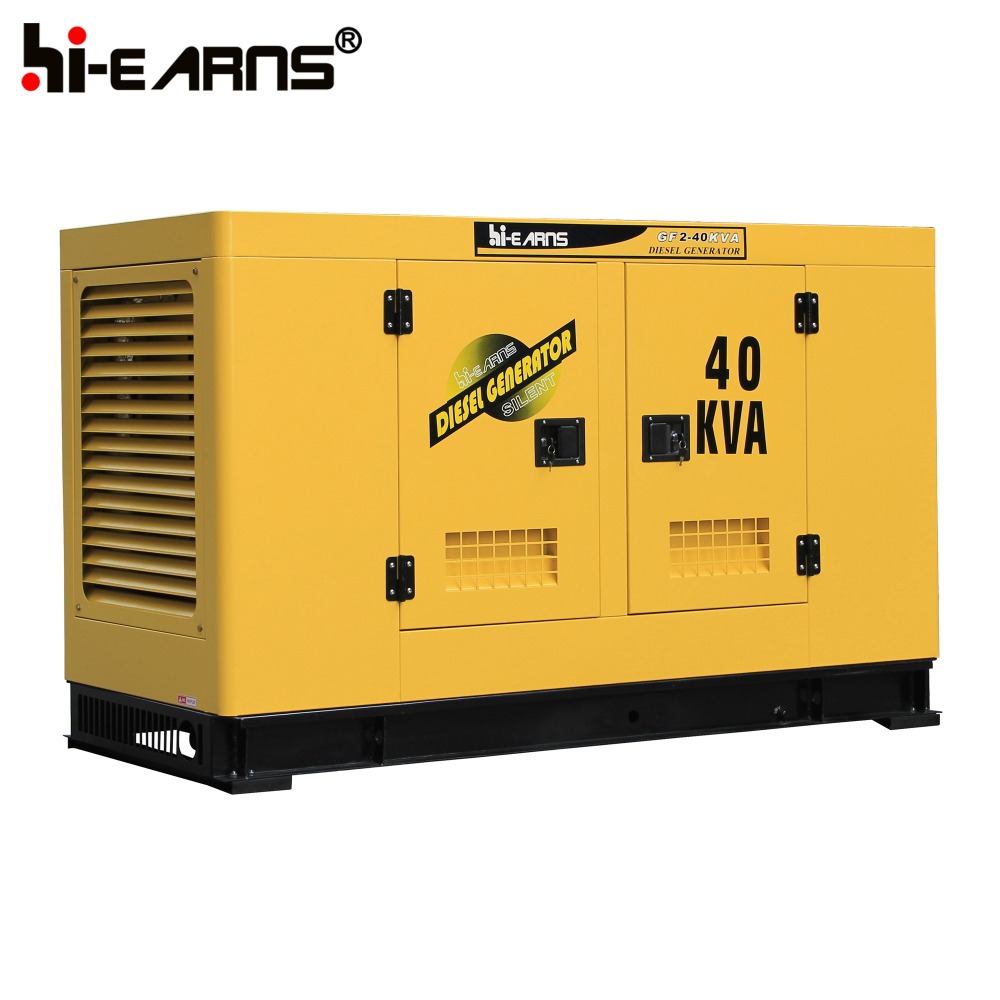

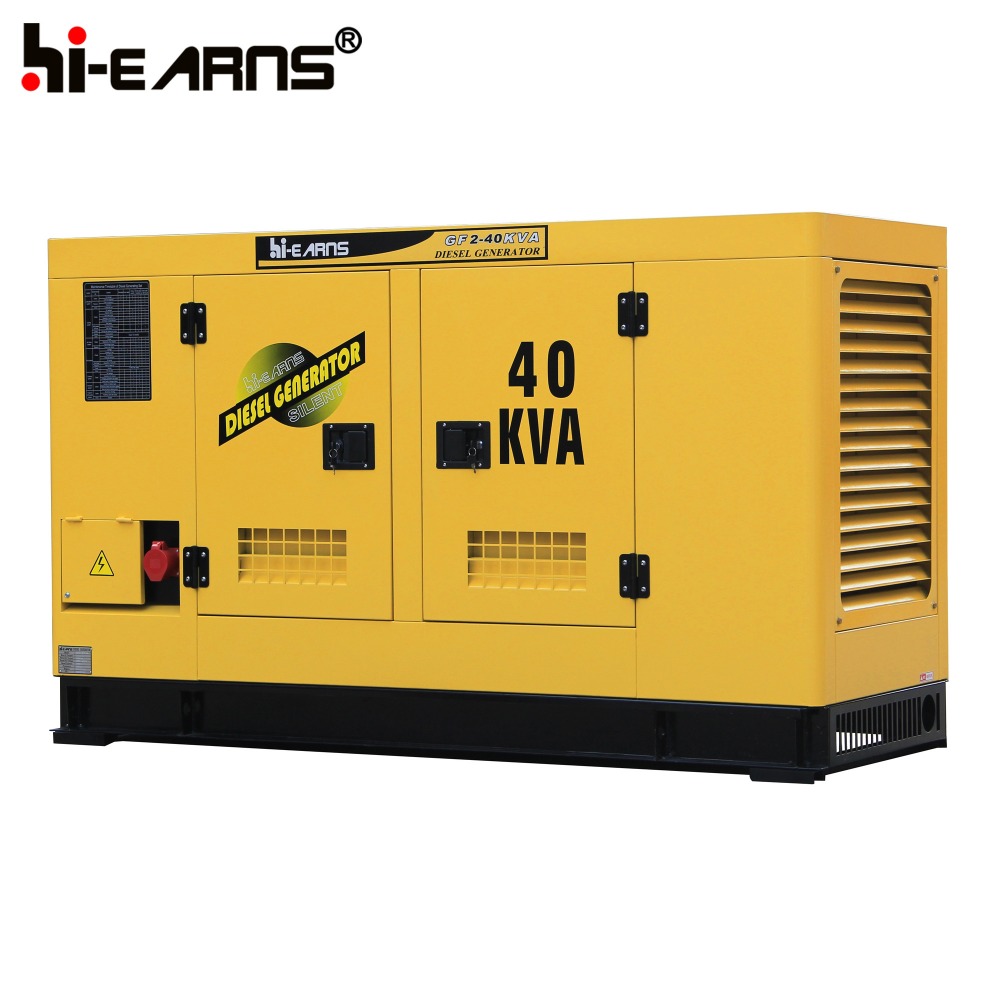

GF2-30KW silent three phase water cooled diesel generator
| Voltage | Frequency (HZ) | Phase | Power factor | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 254/450 | 50 | 3 | 0.8 | 126 | 32/40 | 30/38 |
| 240/415 | 50 | 3 | 0.8 | 133 | 32/40 | 30/38 |
| 230/400 | 50 | 3 | 0.8 | 139 | 32/40 | 30/38 |
| 220/380 | 50 | 3 | 0.8 | 145 | 32/40 | 30/38 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Weifang Huadong Engine K4100ZD. Four stroke,Water-cooled,Direct line,Turbo type | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption(≤g/kw.h) | ≤258 | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke (mm) | 100×115 | |||||
| Displacement(L) | 3.61 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation(g/kW·h) | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| Add Oil Capacity | 8L | |||||
| ALTERNATOR DATA | ||||||
| Power Factor | 0.8 | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 1 Phase | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:1.9(m)×0.9(m)×1.18(m) | Overall Size:2.17(m)×1(m)×1.26(m) | |||||
| Weight:810kg | Weight:860kg | |||||
