Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP30HCIE
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Sewage treatment/Building system/Agricultural/Power station
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- High Pressure
- Standard or Nonstandard:
- Standard
- Theory:
- Centrifugal Pump
- Color:
- Red and yellow
- Type:
- high pressure cast iron water pump
- Material:
- cast iron
- Design:
- New
- Noise:
- low
- Warranty:
- One Year
- Engine type:
- 14hp-HR192F
- Price:
- More competitive
Supply Ability
- Supply Ability:
- 200 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- 1.Packing way: Carton with plastic film.
2.Payment way: If less $10000, 100%T/T payment in advance.
If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment.
3.Producing day: 15-25days.
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated

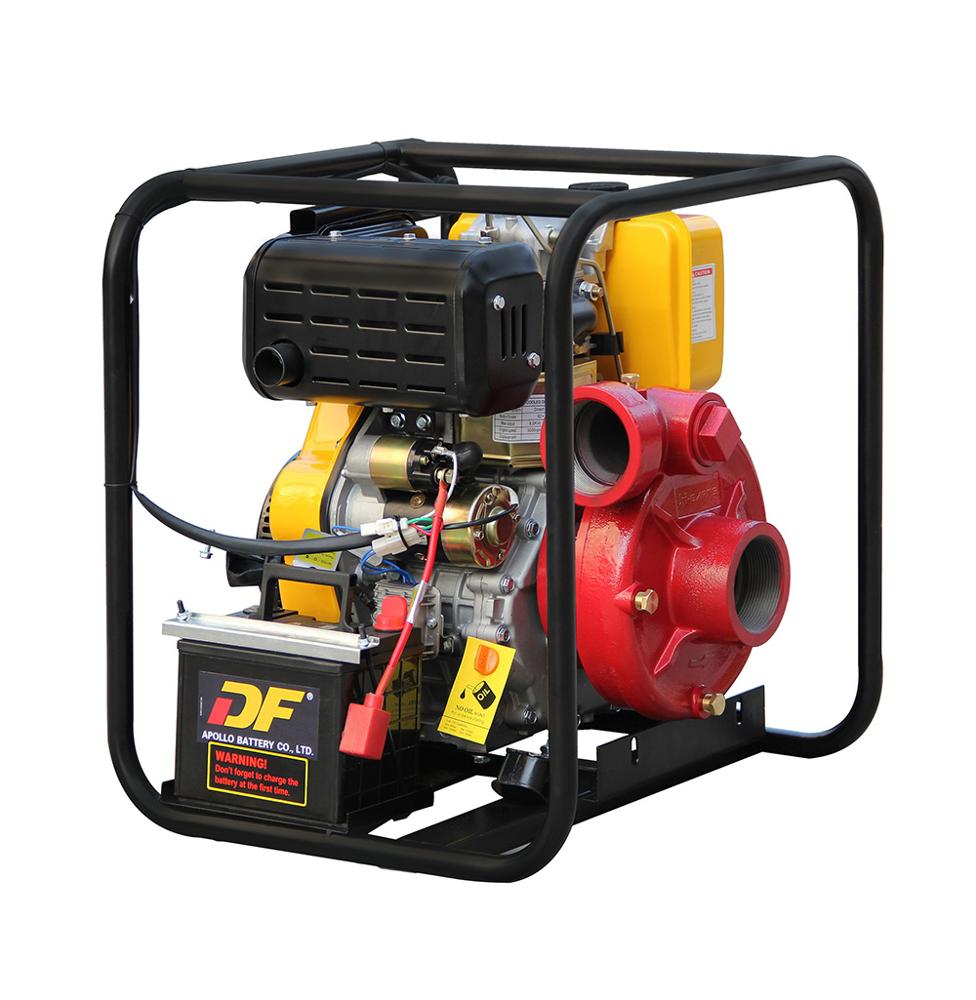

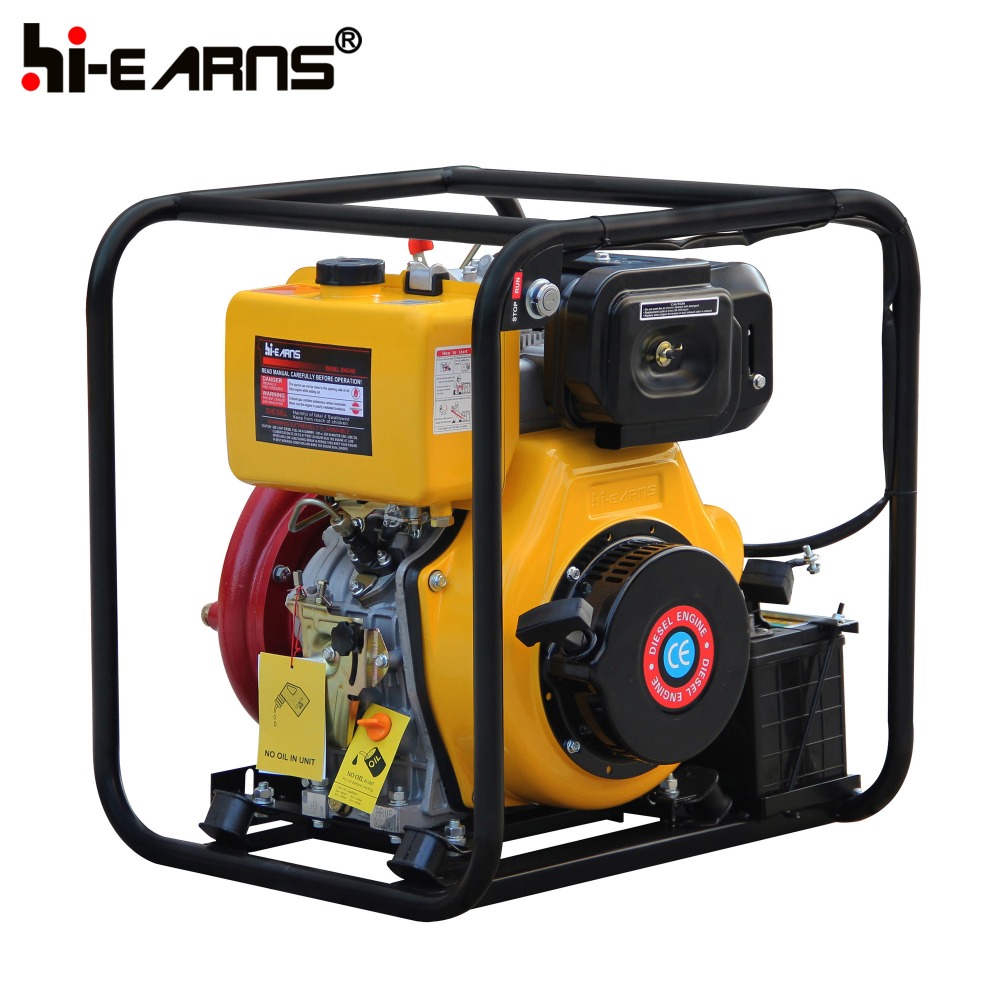

Diesel water pump(DP30HCIE)
| WATER PUMP | Model | DP30HCIE | |
| Suction,discharge port diameter[mm(in)] | 80(3"") | ||
| Cont.head(m) | 75 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 47 | ||
| ENGINE | Engine model | HR192FD | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92x75 | ||
Starting system | Recoil and Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 580×550×630 | |
| Net weight(kg) | 92 | ||
| 20FT | 120 | ||
