Home > Products > 80KW silent diesel generator 100kva generator price

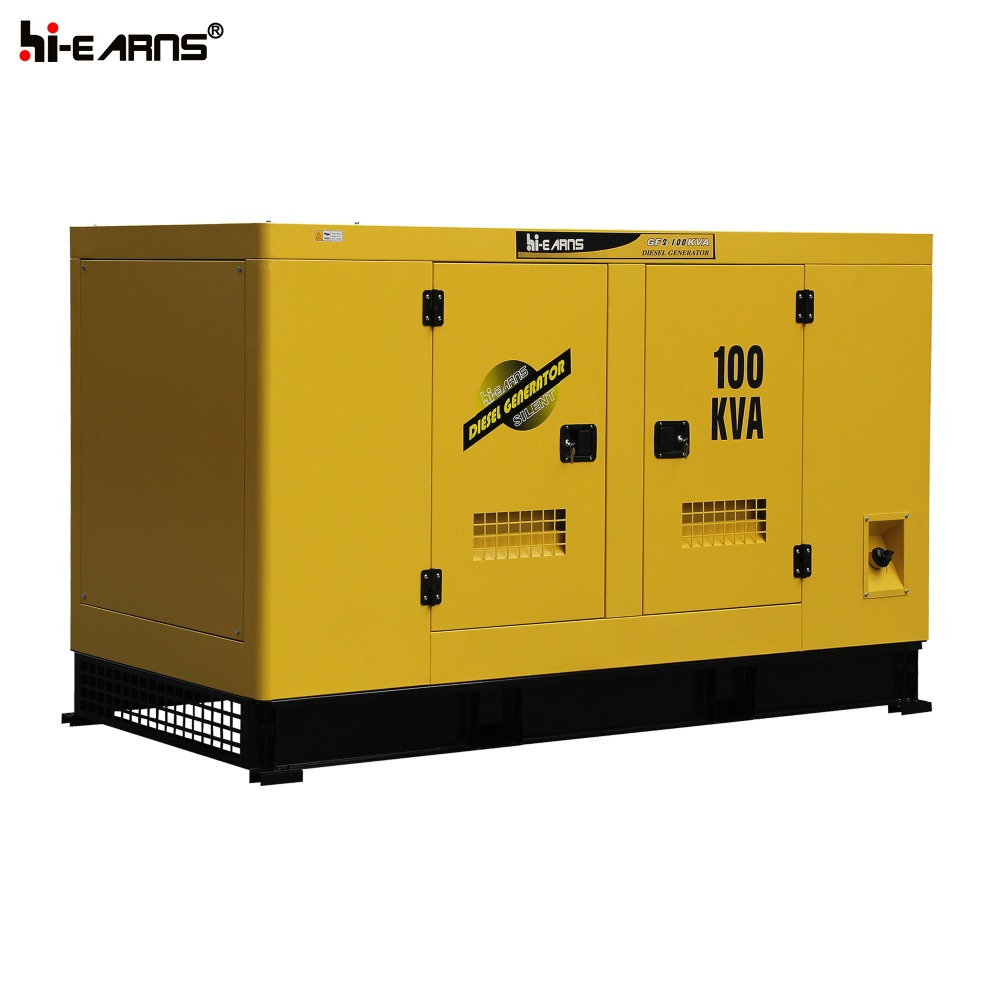

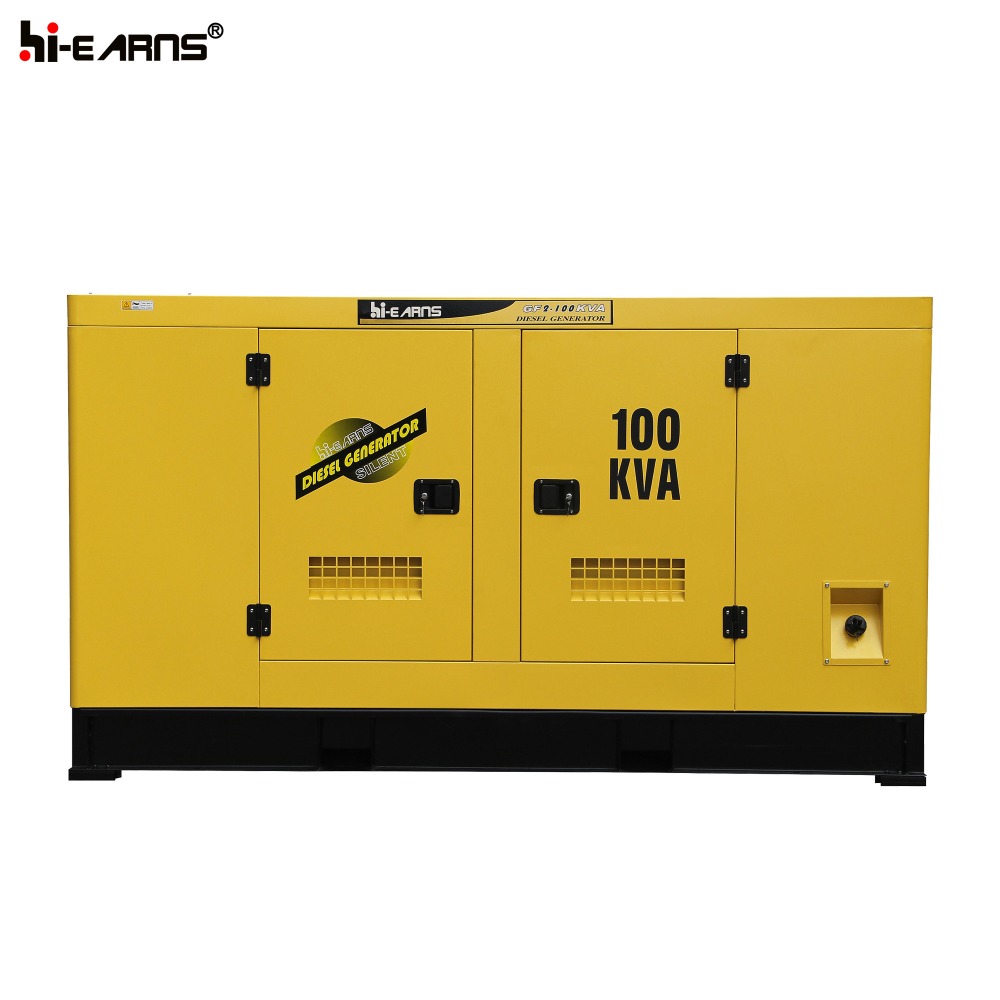

80KW silent diesel generator 100kva generator price
Click on the image to view the original image
Product： views：980KW silent diesel generator 100kva generator price
Branch： Hi-earns/OEM
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns/OEM
Model Number:
GF2-80KW/100KVA
Rated Power:
80KW/100KVA
Output Type:
AC Three Phase
Rated Voltage:
220/380V
Rated Current:
165A
Speed:
1500/1800rpm
Frequency:
50/60HZ
Engine brand:
Cummins diesel engine
Engine model:
6BT5.9-G2
Generator type:
Silent diesel generator
Control type:
Digital control panel
Alternator type:
copper wire Kaijili brushless alternator
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wrapped with bubble paper and hob
Port
Shanghai
Lead Time:
Shipped in 20 days after payment

80KW silent diesel generator 100kva generator price


* Original Cummin diesel engine, have warranty all over the world;

* 100% copper wire brushless alternator, copy stamford;

* 80KW/100KVA rated output, enough power;

* ATS function are optional;



ModelGF2-100KVA
Standby power(50HZ)87KW/109KVA
Prime power(50HZ)80KW/100KVA
Voltage(V)220/380V
Phase3
P.F(COSφ)      0.8
Standby Amps(A)165
Engine typeDCEC Cummins 6BT5.9-G1/G2, 4-stroke
Air intake systemturbo
Fuel system

A/AD type fuel pump

Fuel consumption(g/kw.h)

≤ 214

Cylinder arrangement

6 in line

Displacement5.9L
Bore x Stroke102 x 120(mm)
Compression Ratio17.5:1
Rated RPM1500rpm
Max.Standby Power at Rated RPM92KW/125HP
Governor TypeRSV Mechanical(Std)/Electronic(optional)
Max Water Temperature104 degree celsius
Alternator Data
Number of Phase3
Connecting Type3 Phase and 4 Wires, "Y" type connecting
Number of Bearing1
Power Factor0.8 Lag
Protection GradeIP23
Altitude≤ 1000m
Exciter TypeBrushless, self-exciting
Insulation Class,Temperature RiseH/H
Telephone Influence Factor(TIF)<50
THF<2%
Voltage Regulation, Steady State≤±1%
Alternator Capacity100KVA
Alternator Efficiencies90.4%
Air cooling Flow0.514m3/s
Overall Size2.7x1.1x1.5(m)
Weight1900kg



Company Information

♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.

♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)

♦  We attended every Canton Fair and some oversea Exhibition!

♦  ISO, CE, GS, ROHS certification for all over the world customer.







Our Services

♦ With all the advantages described above, so we DARE to supply 1 year warranty!

♦ Low price spare parts provided beyond warranty period.

♦ If you find one even more products match what you need, So do not hesitate to contact us by each of followed type:



Simon Yang



♦ Mobile/WhatsApp: +86-13775105526

♦ E-mail: server-wm1(at)hiearns.com

♦ SKYPE: ysdsimon

♦ TradeManager: cn200048131

♦ WeChat: SimonMrYang

♦ QQ: 568238531
