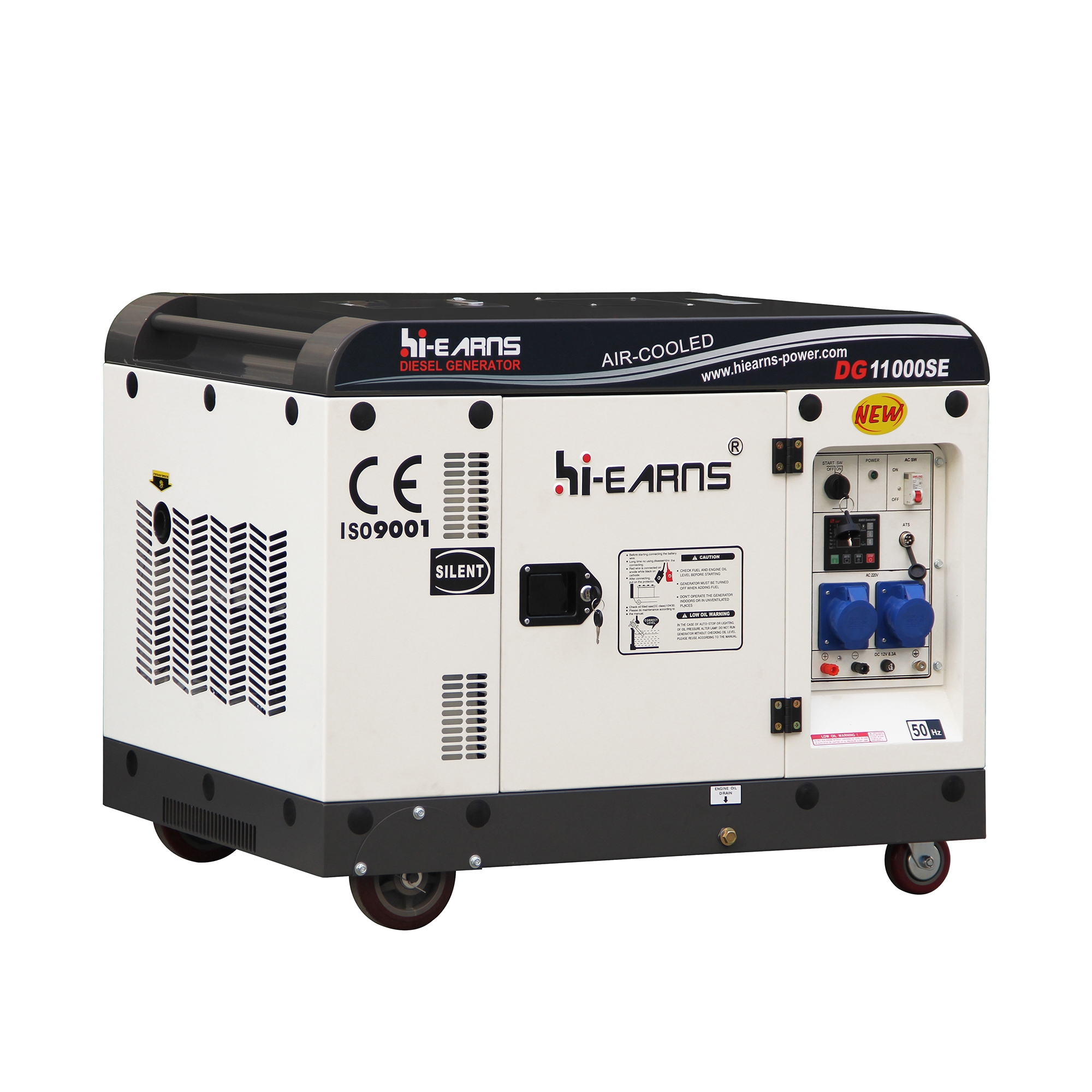

| Model | DG11000SE | ||
| Generator | Frequency(HZ) | 50 | |
| Max.output (kw) | 8.0 | ||
| Rated output(kw) | 7.5 | ||
| Rated.AC voltage(V) | 220,230,240 | ||
| Power factor(cos) | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | Self-excited,2-pole,Single phase alternator | ||
| Starting system | Electric | ||
| noise level(at 7m) | 68-72 | ||
| Fuel tank capacity(L) | 30 | ||
| Continuous work (hr) | 12 | ||
| Engine | Model | HR198FA | |
| Engine type | single-cylinder, vertical,4-stroke air-cooled diesel engine | ||
| Bore×stroke(mm) | 98×84 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct Injection | ||
Standard feature | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| Ac circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| DC circuit breaker | yes | ||
| 36AH battery | yes | ||
Optional feature | Calculagraph | Optional | |
| Big wheel | Optional | ||
| Three phase voltage | Optional | ||
| Current meter | Optional | ||
| ATS | Optional | ||
| Digital Panel | Optional | ||
| Remote control | Optional | ||
| Welding | Optional | ||
| Dimension | Dimension(L×W×H)(mm) | 1130×780×860 | |
| Net weight(kg) | 220 | ||
| 20FT | 30 | ||
| 40FT | 96 | ||
air-cooled generator
