- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP20E
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- irrigation
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Theory:
- Centrifugal Pump
- Standard or Nonstandard:
- Standard
- Diesel water pump:
- Diesel water pump
- cont.head:
- 26m
- self-priming time:
- 70s/4m
- max.suction head:
- 8m
- engine model:
- HR170F
- engine type:
- single-cylinder,vertical,4 -stroke air-cooled diesel engine
- starting system:
- electric
- displacement:
- 211cc
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 52X48X67 cm
- Single gross weight:
- 55.0 kg
- Package Type:
- carton box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated

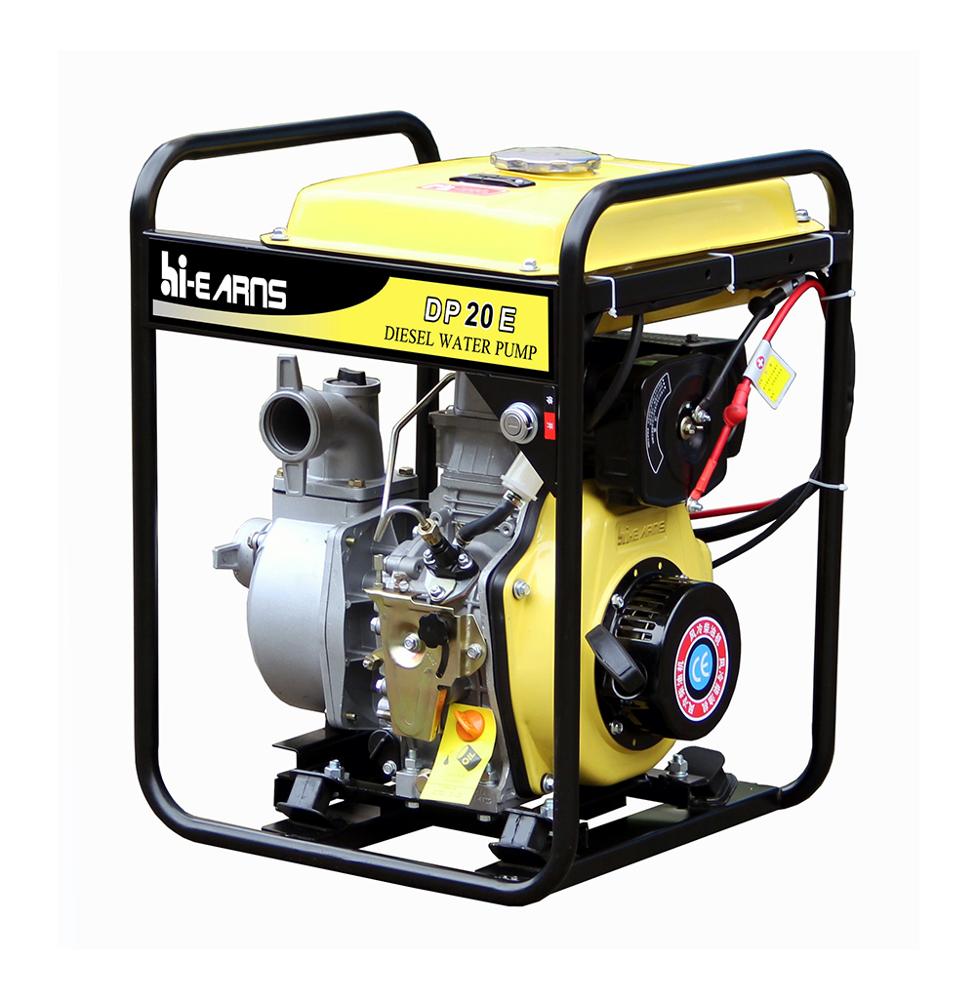

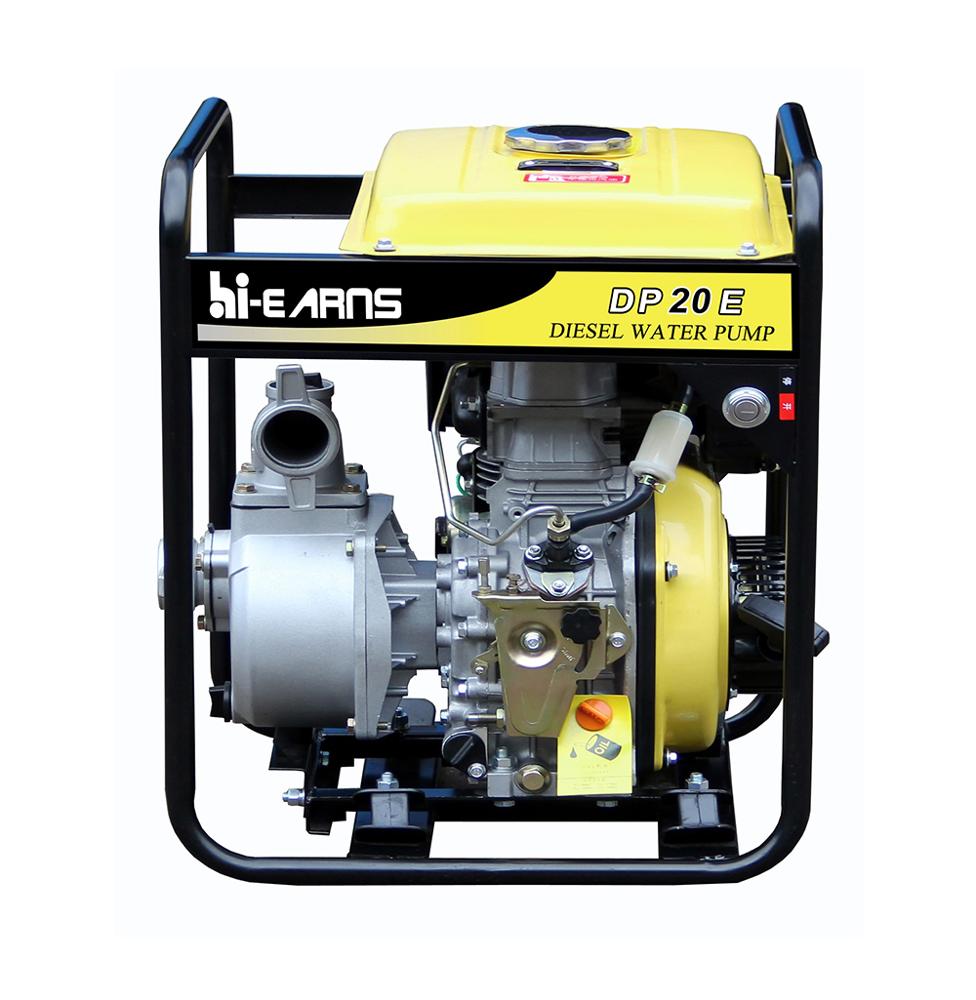

Diesel water pump 2 inch electric start big fuel tank diesel water pump prices
| WATER PUMP | Model | DP20 | |
| Suction,discharge port diameter[mm(in)] | 50(2") | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170F | |
| Speed(rpm) | 3600 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 211 | ||
Bore*stroke(mm) | 70*55 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 2.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 490×420×530 | |
| Net weight(kg) | 55 | ||
| 20FT | 240 | ||
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
