Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000E
- Rated Voltage:
- 220,230,380,240,415
- Rated Current:
- 11A
- Speed:
- 3000RPM
- Frequency:
- 50HZ, 50/60HZ
- Type:
- 7.5kva diesel generator
- engine:
- air-cooled diesel engine 198
- Frame:
- open frame
- Color:
- Optional
- Phase:
- Single Phase/3 Phase
- Control panel:
- Common/digital/ATS
- Noise:
- Low level
- Warranty:
- 1 Year
- Certificate:
- ISO, CE
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 77X54X70 cm
- Single gross weight:
- 151.0 kg
- Package Type:
- plywood pallet with carton

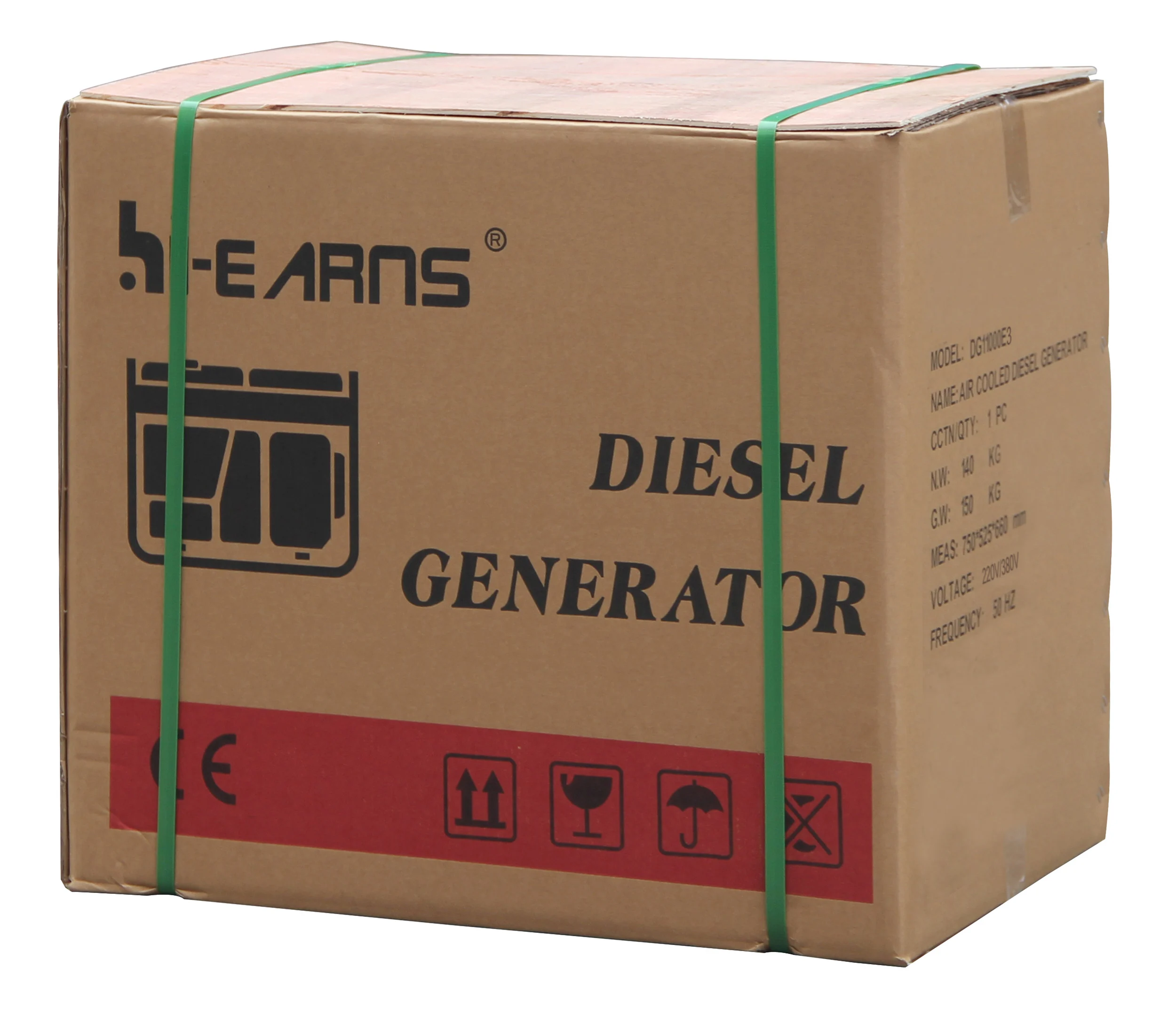

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 50 >50 Est. Time(days) 15 20 To be negotiated
Related Products

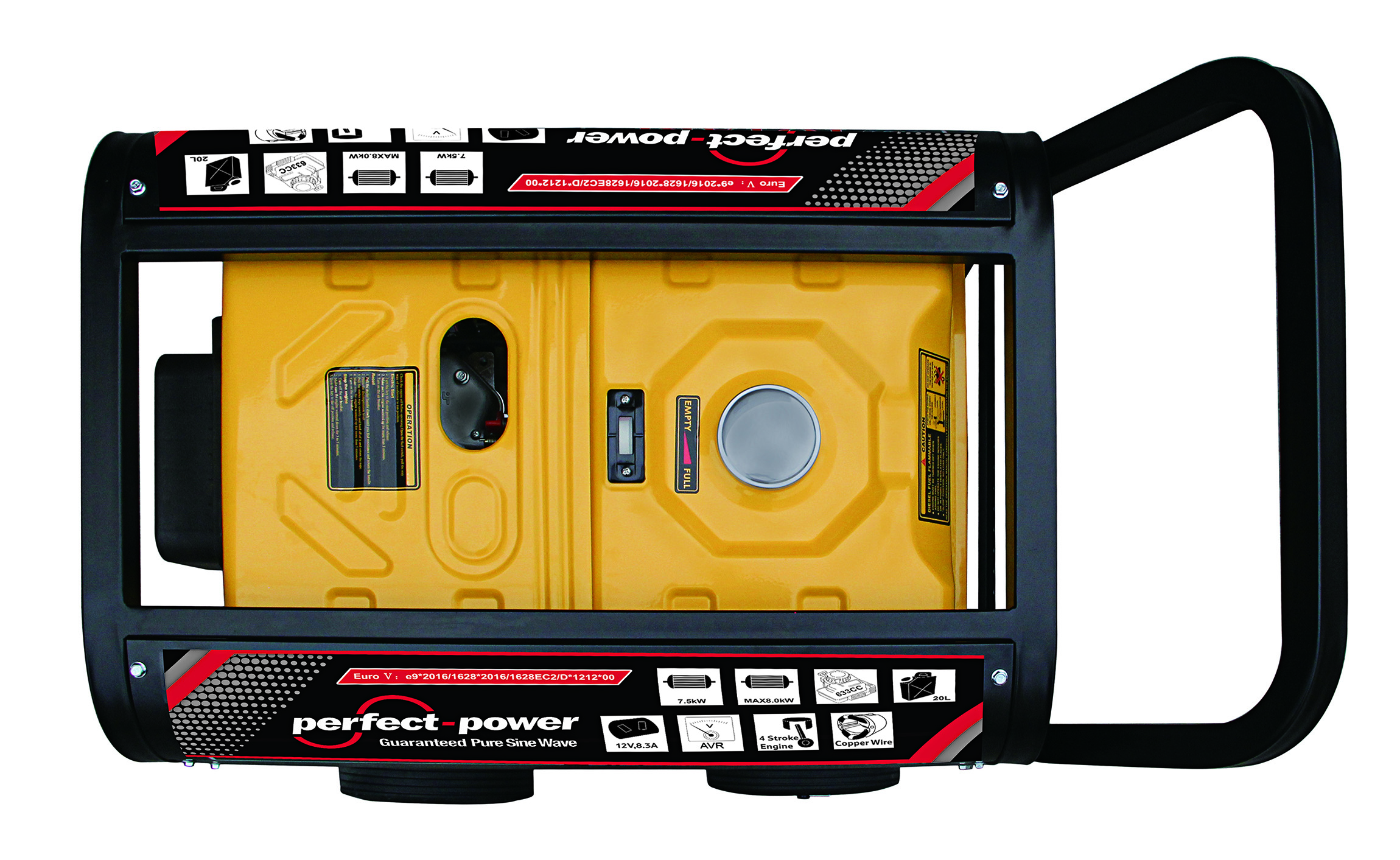

7.5kva portable diesel generator set DG11000E
| Model | DG11000E | |
| Generator | Frequency(Hz) | 50 |
| Max. output(KW) | 8 | |
| Rated output(KW) | 7.5 | |
| Rated AC voltage(V) | 220,230,240 | |
| Power factor | 1 | |
| DC output(V/A) | 12/8.3 | |
| Phase | Single phase | |
| Alternator type | Self-excited,2-pole | |
| Starting system | electric | |
| Noise level(7m)(dB) | 80-85 | |
| Fuel tank capacity(L) | 12.5 | |
| Continuous work(H) | 5 | |
| ENGINE | Engine Model | HR198FA |
| Engine Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Bore×Stroke | 98×84 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume(L) | 1.65 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Package size(LxWxH)(mm) | 770x540x700 |
| Net Weight(kgs) | 140 | |
| Gross Weight (kgs) | 150 | |
| 20FT loading pcs | 99 | |
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
