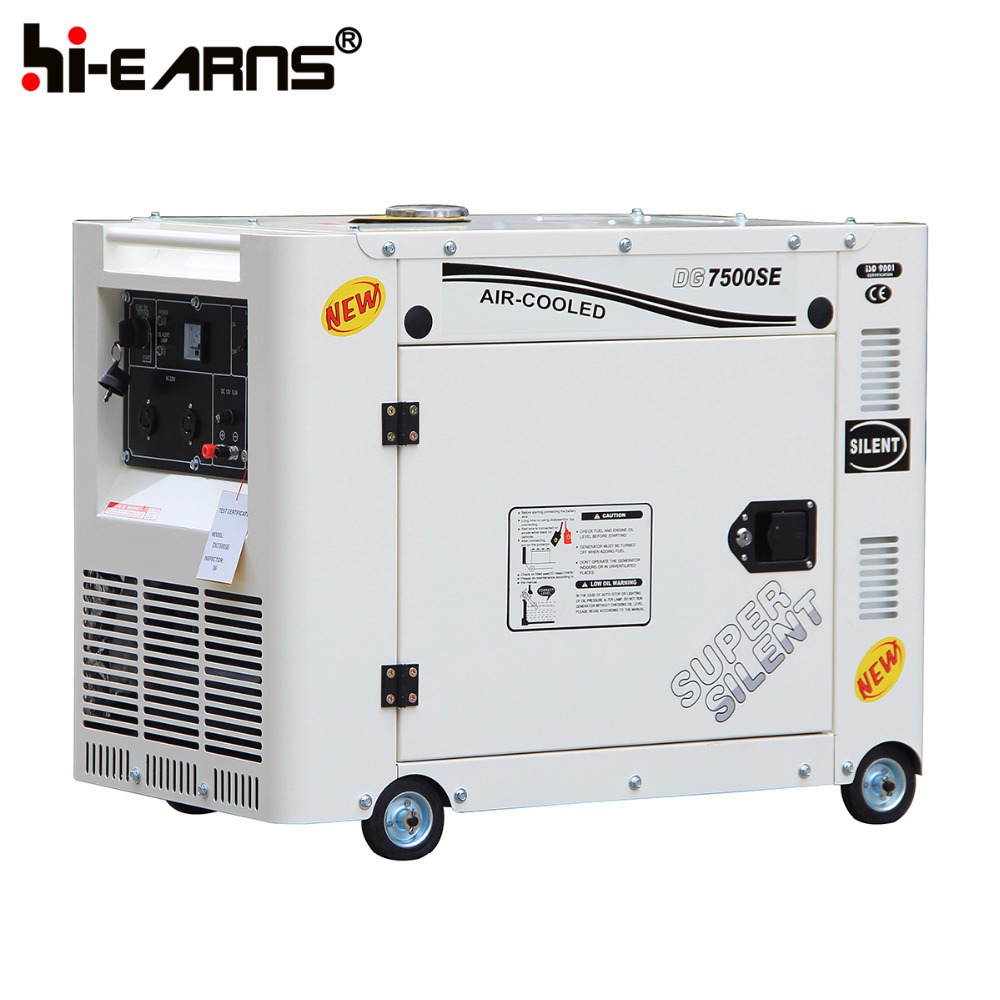

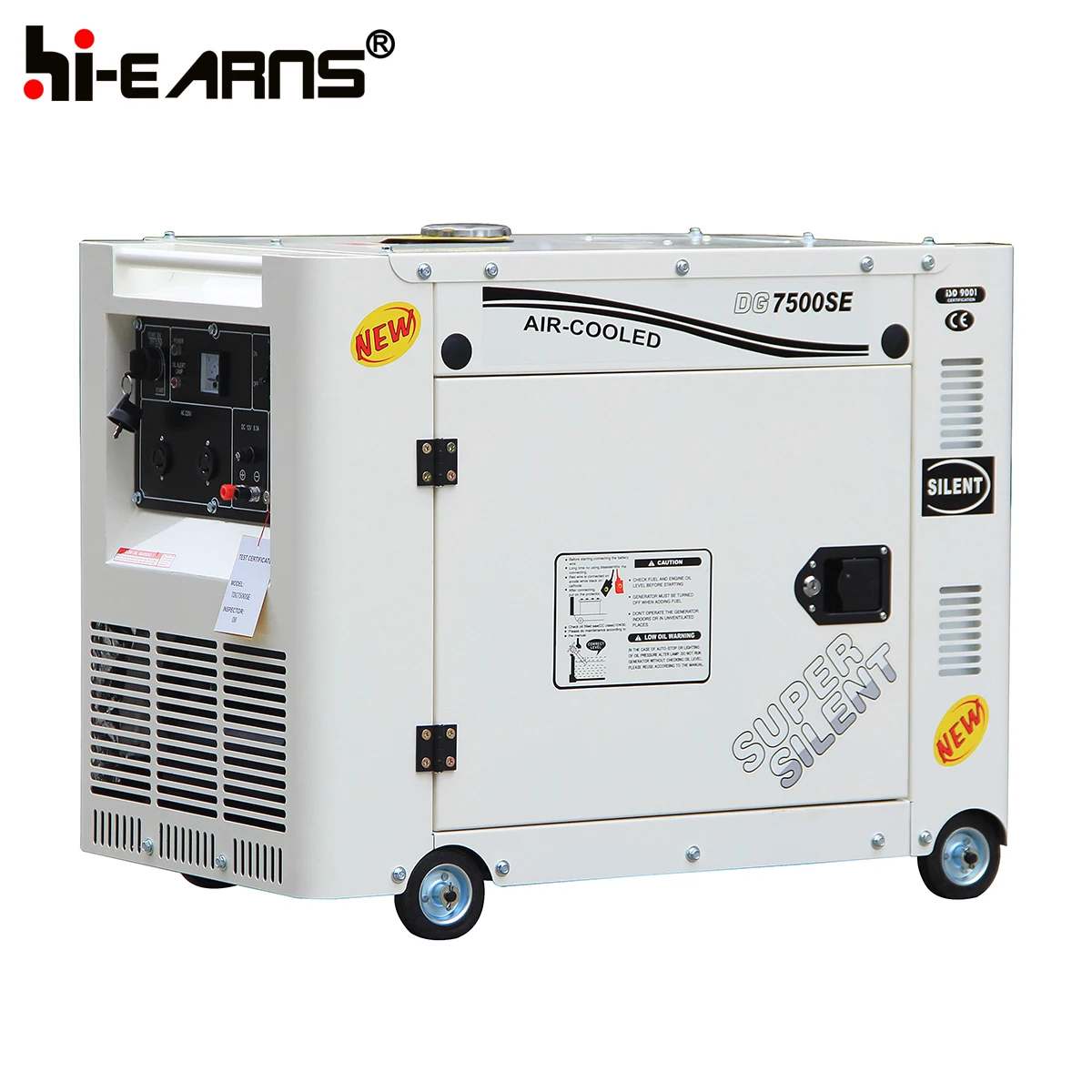

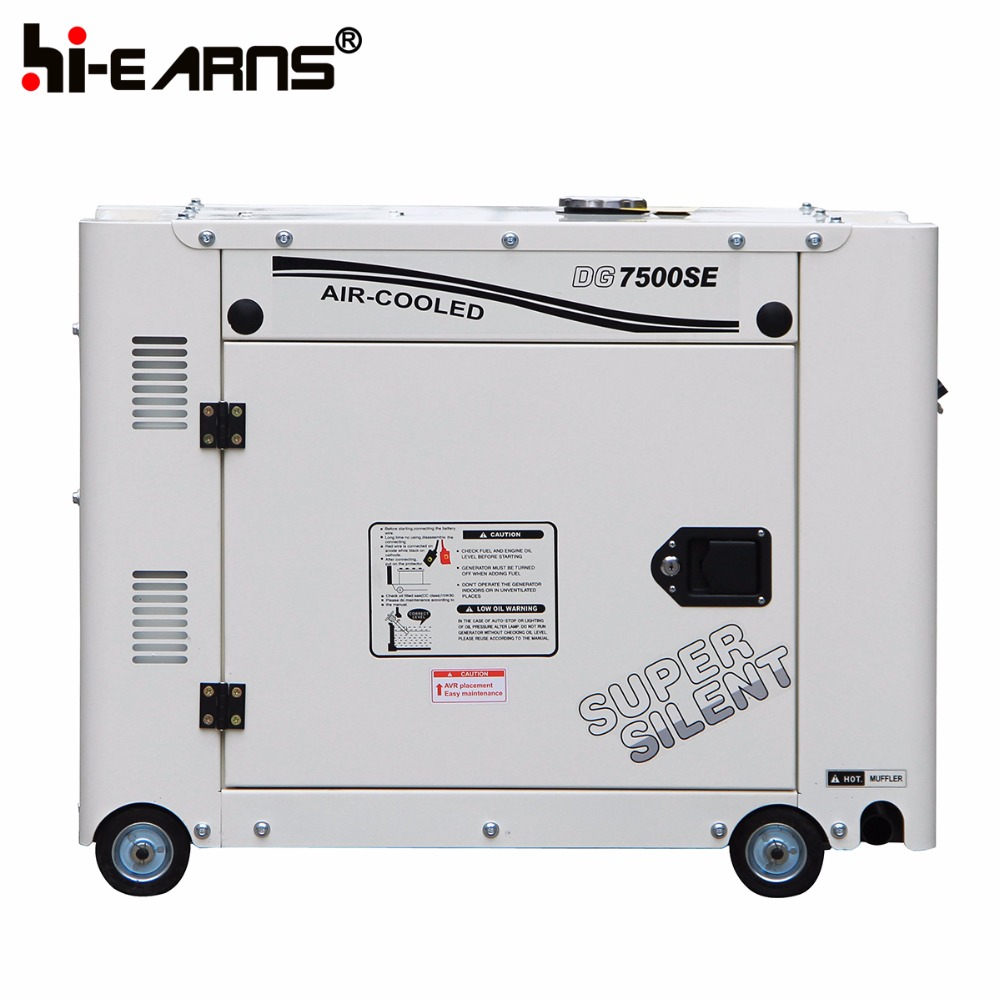

5.5kw portable silent diesel generator generator DG7500SE
| GENERATOR | Model | DG7500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.0 | 6.5 | |
| Rated output(kw) | 5.5 | 6.0 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.0 | 7.3 | |
| ENGINE | Model | HR188FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 88× 75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 710 | |
| Net weight(kg) | 160 | ||
| 20FT | 72 | ||
Advantages
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
