- Condition:
- New
- Stroke:
- 4 Stroke
- Cylinder:
- Single Cylinder
- Cold Style:
- Air-cooled
- Start:
- recoil
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Dimension(L*W*H):
- 510*490*570mm
- Weight:
- 50kg
- Certification:
- CE ISO
- Warranty:
- 1 Year, 1 year
- After-sales Service Provided:
- No overseas service provided
- Type:
- 10hp diesel engine
- Rated Power:
- 10hp
- Color:
- optional
- Starting system:
- Recoil, Electric
- Shaft types:
- thread
- Enging speed:
- 3000rpm,3600rpm
- Brand:
- Hiearns
- Certificate:
- CE, ISO
- OEM:
- Available
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 51X49X57 cm
- Single gross weight:
- 51.0 kg
- Package Type:
- carton box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 50 >50 Est. Time(days) 10 15 To be negotiated

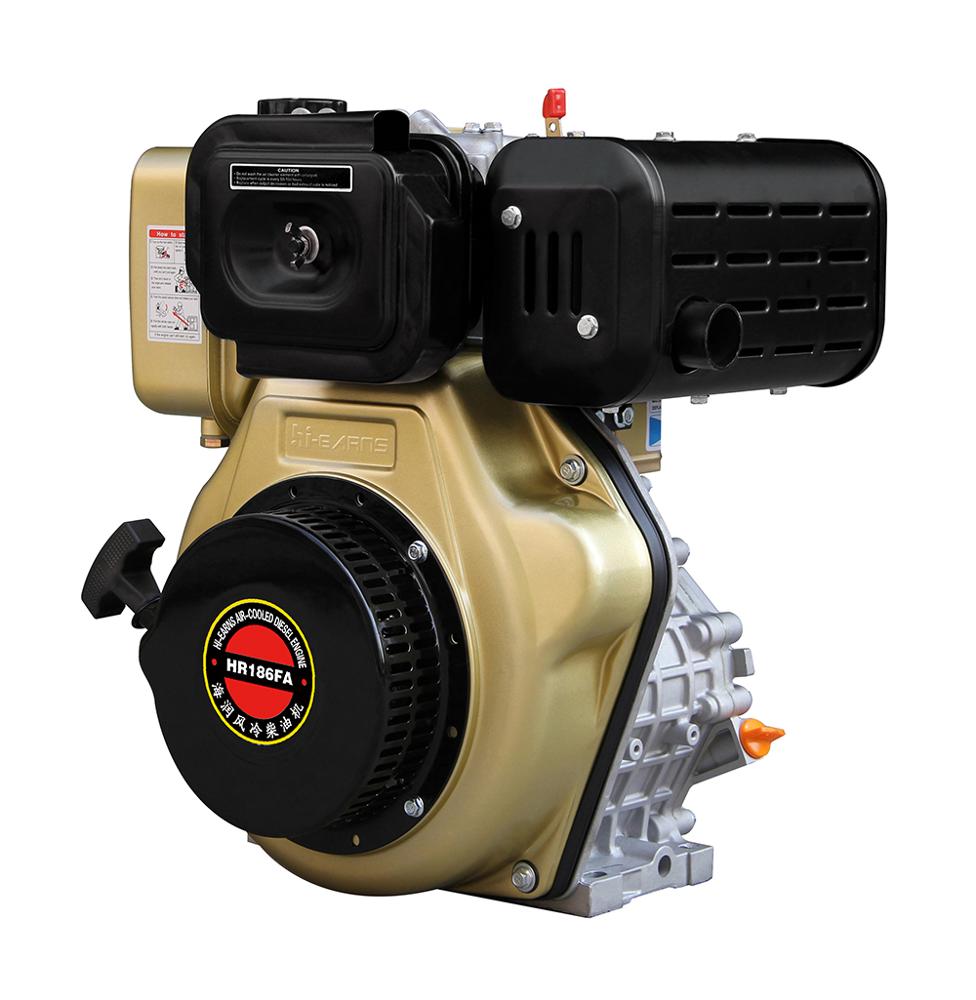

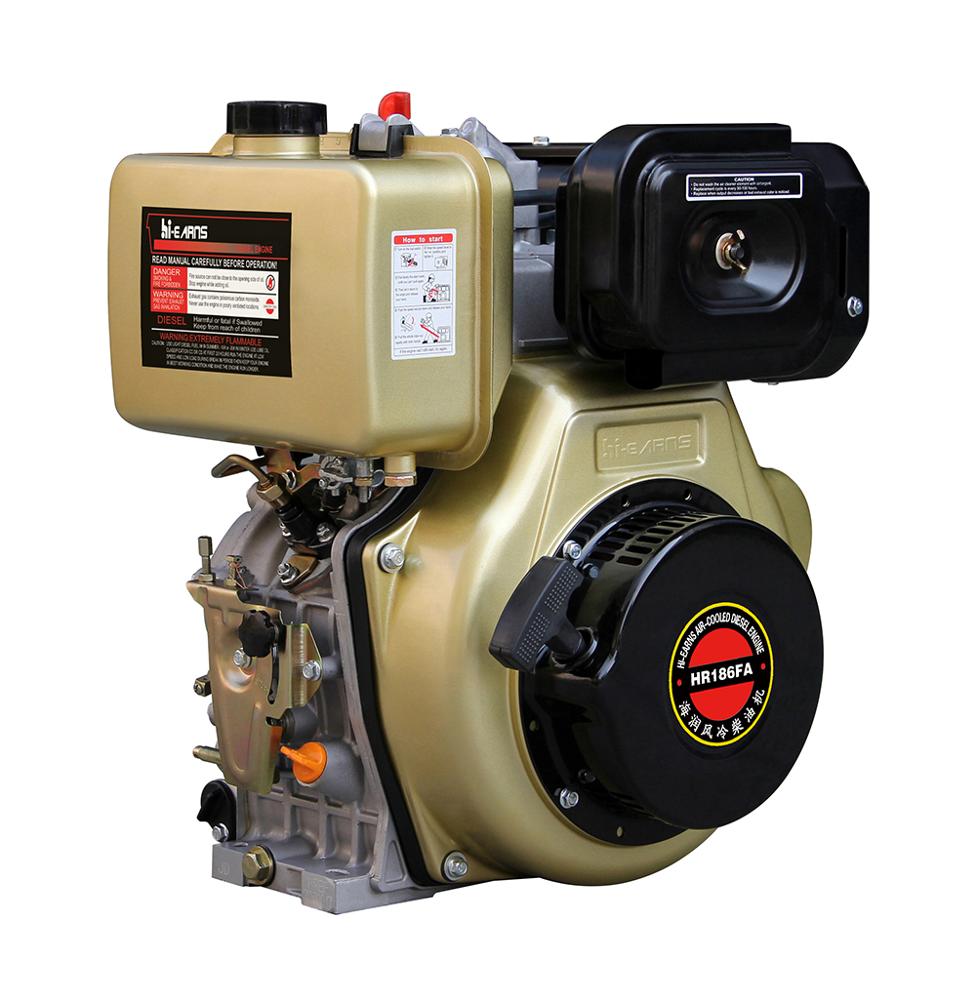

Changzhou 10hp diesel jet engine HR186F
| Model | HR170F | HR178F | HR178FA | HR186FS | HR186FA | HR188FA | ||||||
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |||||||||||
| Combustion System | Direct Injection | |||||||||||
| Bore× Stroke(mm) | 70× 55 | 78× 62 | 78× 64 | 86× 70 | 86× 72 | 88× 72 | ||||||
| Displacement capacity(cc) | 211 | 296 | 305 | 406 | 411 | 438 | ||||||
| Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000(1500) | 3600(1800) | 3000 | 3600 | 3000 | 3600 |
| Horse power(hp) | 4 | 6 | 7 | 9 | 10 | 12 | ||||||
| Max. output(kw) | 2.5 | 3 | 3.8 | 4.2 | 4.2 | 4.5 | 6 | 6.5 | 6.3 | 6.8 | 7.5 | 8 |
| Rated output(kw) | 2.3 | 2.5 | 3.5 | 3.8 | 3.8 | 4.2 | 5.5 | 6 | 5.8 | 6.3 | 7 | 7.5 |
| Fuel | o#or-10#light diesel oil | |||||||||||
| Fuel oil tank volume(l) | 2.5 | 3.5 | 3.5 | 5.5 | 5.5 | 5.5 | ||||||
| Lubricatiom oil volume(l) | 0.75 | 1.1 | 1.1 | 1.65 | 1.65 | 1.65 | ||||||
| Fuel oil consumption rate(g/kw. h) | 285 | ≤ 283 | ≤ 285 | ≤ 278 | ≤ 280 | ≤ 280 | ||||||
| Starting system | Recoil or Electric | |||||||||||
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |||||||||||
| Dimension(mm) | 332× 348× 416 | 383× 412× 450 | 417× 470× 494 | 417× 470× 494 | ||||||||
| Net weight(kg) | 28 | 34 | 35 | 48 | 59 | 59 | ||||||
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
