Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG16000SE
- Rated Voltage:
- 220,230,380,240,415
- Rated Current:
- 18.2A
- Speed:
- 3000/3600RPM
- Frequency:
- 50/60HZ, 50HZ
- engine:
- two-cylinder air-cooled diesel engine 2V92
- type:
- silent
- Color:
- Optional
- Phase:
- 1 Phase/3 Phase
- Control panel:
- Common/digital/ATS
- Rated output:
- 12KW
- Max. output:
- 13KW
- rpm:
- 3600
- ATS:
- optional
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 122X82X93 cm
- Single gross weight:
- 361.0 kg
- Package Type:

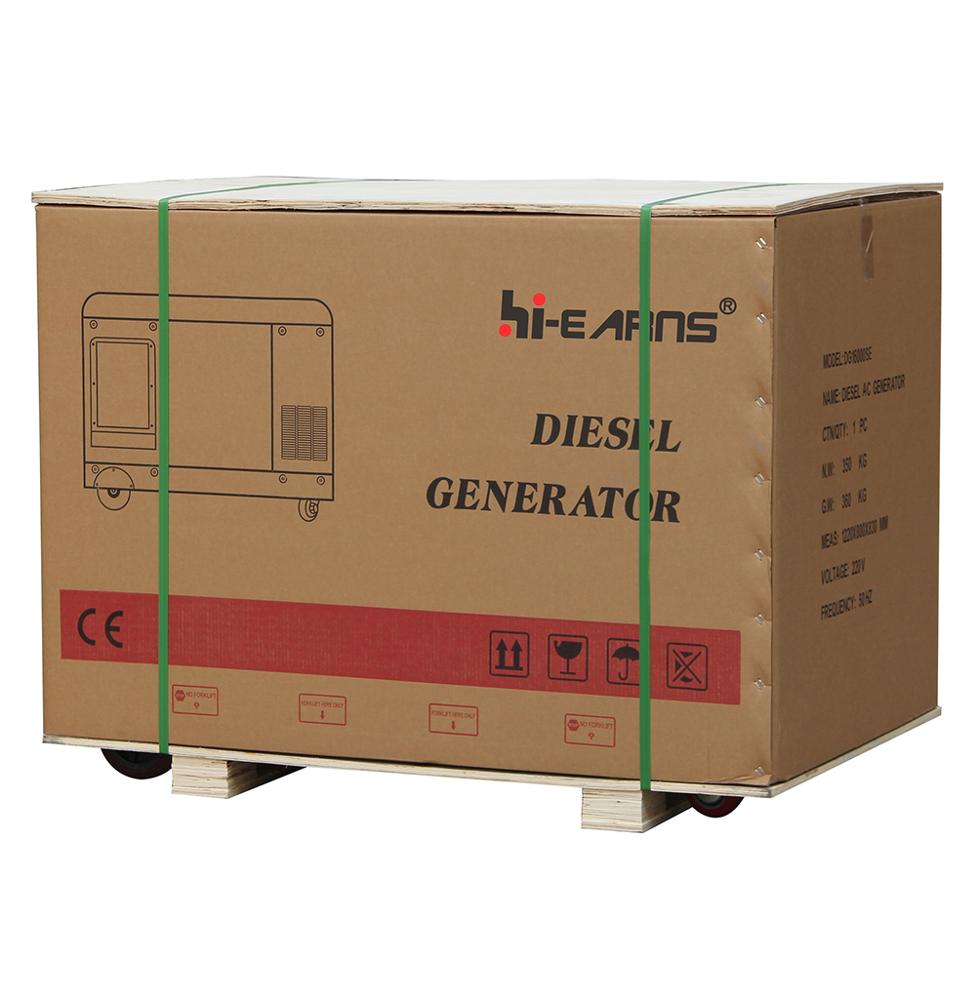

- plywood pallet with carton box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated

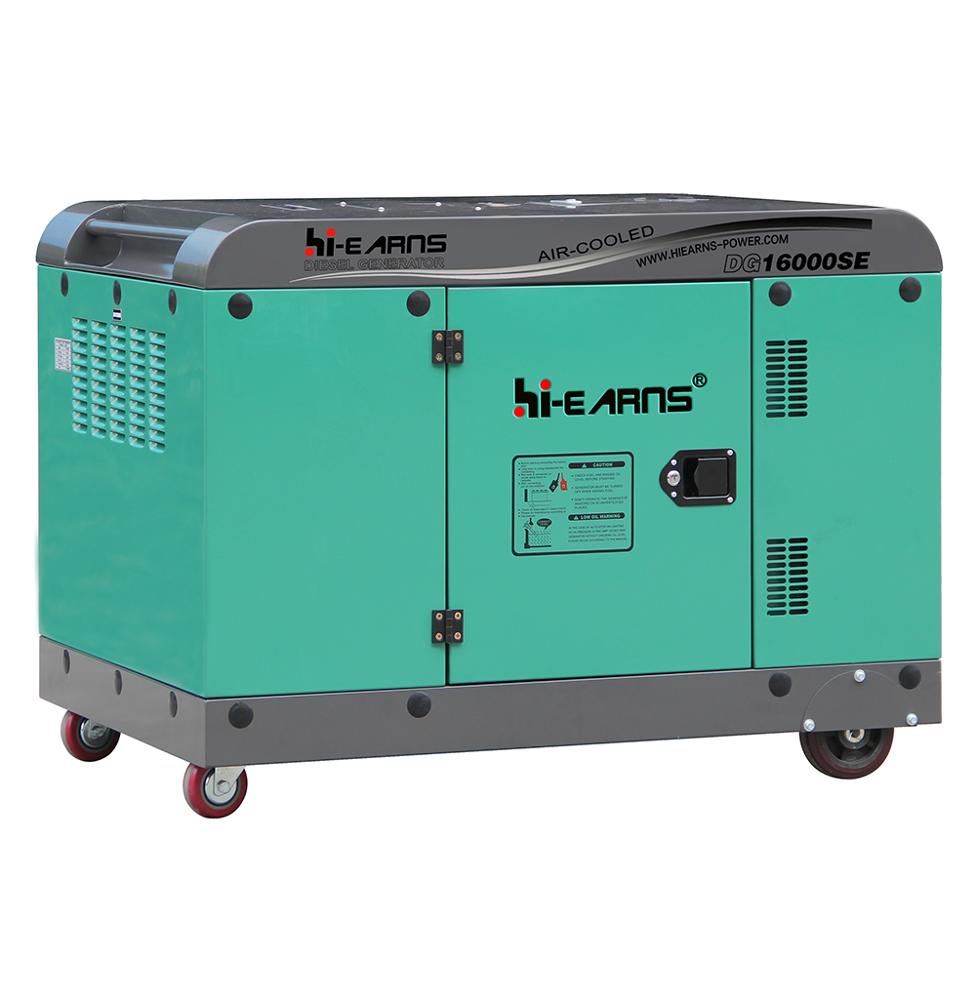

15KVA silent electric diesel generator price list DG16000SE
| Model | DG16000SE | |
| Generator | Frequency(Hz) | 50 |
| Max. output(KW) | 13 | |
| Rated output(KW) | 12 | |
| Rated AC voltage(V) | 120,220,230,120/240,220/380, 230/400 | |
| Power factor | 0.8 | |
| DC output(V/A) | 12/8.3 | |
| Phase | Single phase/Three phase | |
| Alternator type | Self-excited,2-pole, Three alternator | |
| Starting system | electric | |
| Noise level(7m)(dB) | 75 | |
| Fuel tank capacity(L) | 30 | |
| Continuous work(H) | 8 | |
| ENGINE | Engine Model | HR2V92FA |
| Engine Type | Twin cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×Stroke | 92×75 | |
| Fuel Consumption rate g/kw/h | ≤230 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume(L) | 4 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Package size(LxWxH)(mm) | 1210x820x930 |
| Net Weight(kgs) | 310 | |
| Gross Weight (kgs) | 325 | |
| 20FT loading pcs | 24 | |
| 40HQ loading pcs | 48 | |
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
