Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG16000SE
- Rated Voltage:
- 220,230,240
- Rated Current:
- 54.5A
- Speed:
- 3000/3600rpm
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Single phase
- Engine type:
- HR2V92FAE
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:121X82X93cm
Delivery time: 30 days
One 20FT can load 24 pcs.
One 40HQ can load 96pcs.
- Port
- FOB shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 10 >10 Est. Time(days) 15 To be negotiated
Video Description
Related Products
Product Description
1.silent, electric, with 45AH storage battery
2.low fuel consumption
3.with four solid wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

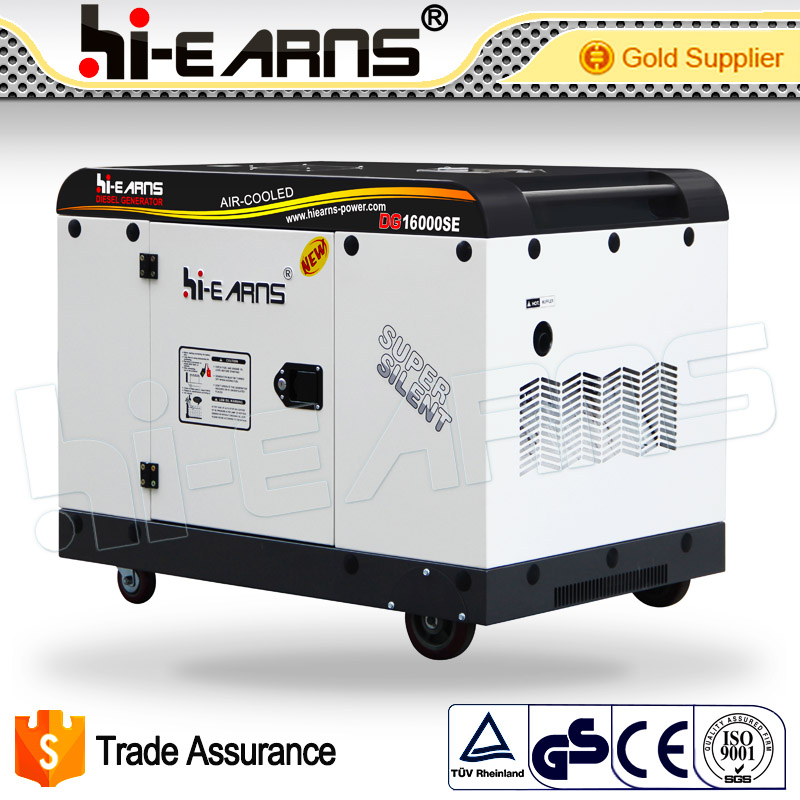

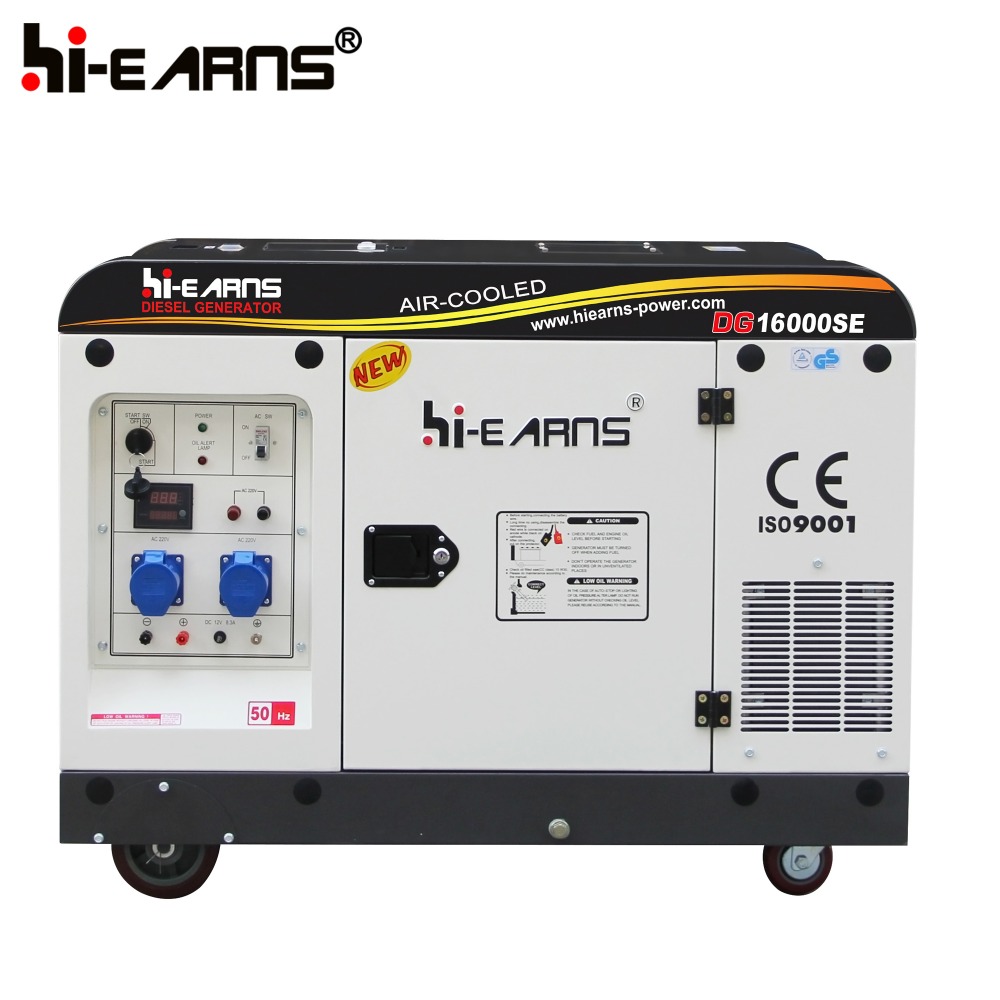

DG16000SE 12KW electric silent air-cooled diesel generator
Model | DG16000SE | |
Generator | Frequency(Hz) | 50 |
Max. output(KW) | 13 | |
Rated output(KW) | 12 | |
Rated AC voltage(V) | 110,220,230,240 | |
Power factor | 1 | |
DC output(V/A) | 12/8.3 | |
Phase | Single phase | |
Alternator type | Self-excited,2-pole, Singlealternator | |
Starting system | electric | |
Noise level(7m)(dB) | 75 | |
Fuel tank capacity(L) | 30 | |
Continuous work(H) | 8 | |
ENGINE | Engine Model | HR2V92FA |
Engine Type | Twin cylinder, vertical,4-stroke air-cooled diesel engine | |
Bore×Stroke | 92×75 | |
Fuel Consumption rate g/kw/h | ≤230 | |
Fuel | 0# or -10# light diesel oil | |
Lubrication Oil Volume(L) | 4 | |
Combustion System | Direct Injection | |
STANDARD FEATURES | Voltmeter | YES |
AC Output Socket | 2 | |
AC Circuit Breaker | YES | |
Oil warning Light | YES | |
Oil Alert | YES | |
OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
Calculagraph | OPTIONAL | |
Big wheel | OPTIONAL | |
Three phase voltage | OPTIONAL | |
Current meter | OPTIONAL | |
ATS | OPTIONAL | |
Remote control | OPTIONAL | |
Welding | NO | |
DIMENSIONS | Package size(LxWxH)(mm) | 1210x820x930 |
Net Weight(kgs) | 310 | |
Gross Weight (kgs) | 325 | |
20FT loading pcs | 24 | |
40HQ loading pcs | 48 |
