Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-20KW
- Rated Voltage:
- 220,230,240V
- Rated Current:
- 91A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Single phase
- Engine type:
- Cummins 4B3.9-G1
Supply Ability
- Supply Ability:
- 20 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- 1.PACKAGE METHOD:
Wooden with plastic films or bubble wrap with plastic film and wooden plate.
2.DELIVERY TIME:25days.
3.WARRANTY:One year.
4.20FT can load 12pcs, 40HQ can load 26pcs.
- Port
- Shanghai or other Chinese port
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Video Description
Related Products

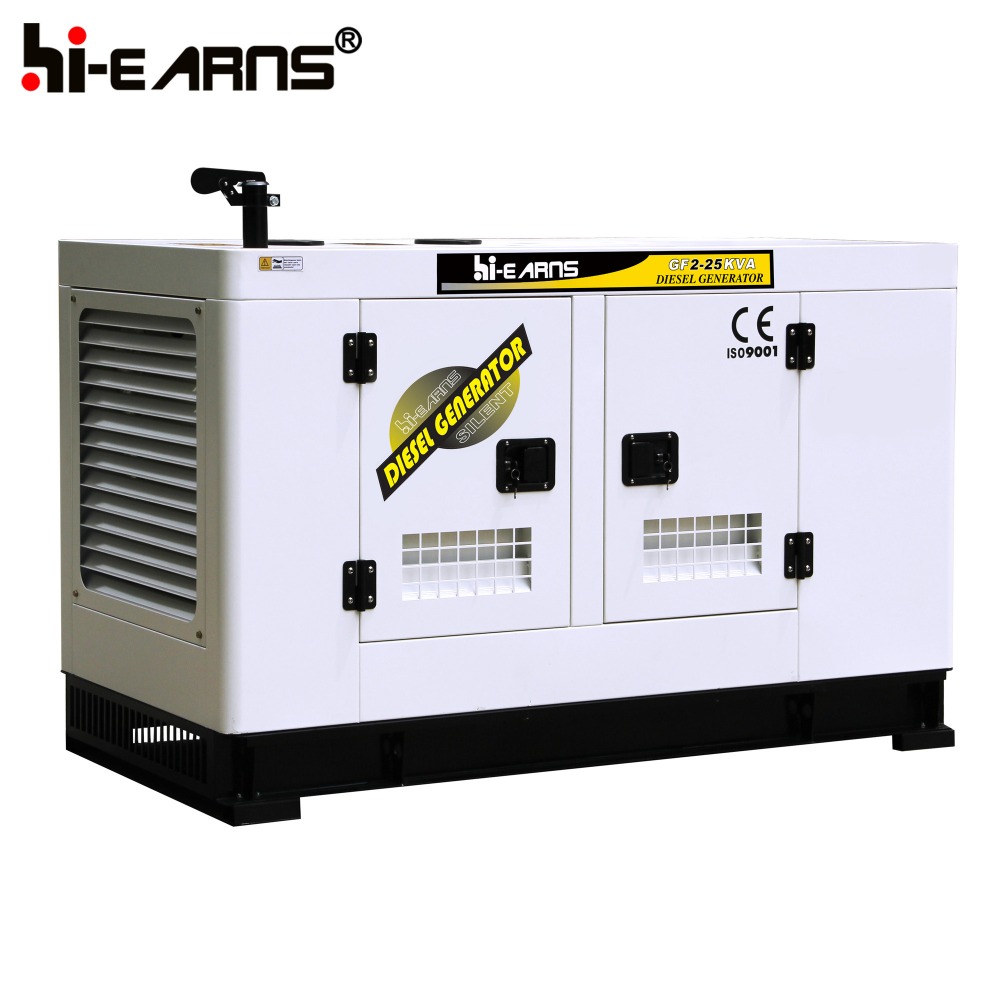

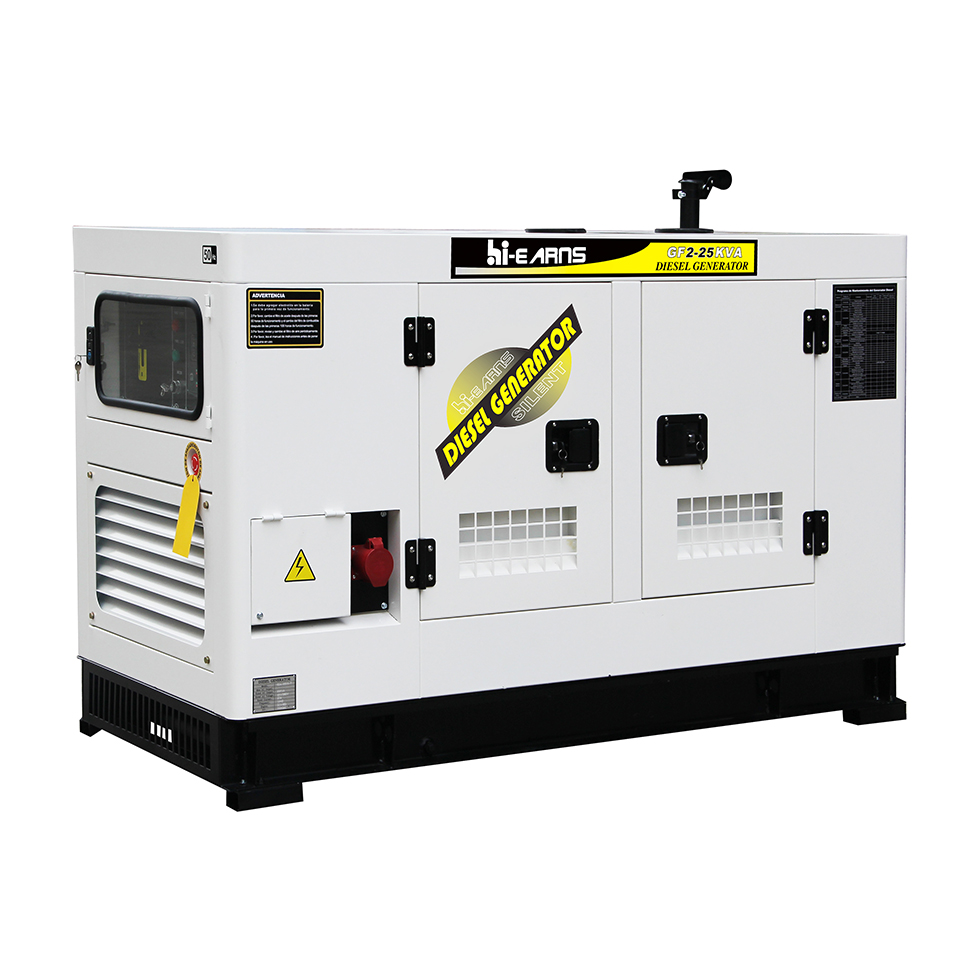

GF2-20KW silent single phase water cooled diesel generator
Voltage | Frequency (HZ) | Phase | Power factor | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
254 | 50 | 1 | 1 | 87 | 22 | 20 |
240 | 50 | 1 | 1 | 92 | 22 | 20 |
230 | 50 | 1 | 1 | 96 | 22 | 20 |
220 | 50 | 1 | 100 | 22 | 20 | |
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
ENGINE DATA | ||||||
Engine Type | DCEC Cummins 4B3.9-G1/G2,4-cycle | |||||
Air Intake System | Air natural | |||||
Fuel System | A type fuel pump | |||||
Fuel Consumption(≤g/kw.h) | ≤214 | |||||
Cylinder Number | 4 | |||||
Displacement | 3.9 | |||||
Bore×Stroke | 102×120(mm) | |||||
Compression Ratio | 16.5:1 | |||||
Rated RPM | 1500 | |||||
Max.Standby Power at Rated RPM | 27KW / 36.7HP | |||||
Governor Type | RSV Mechanical(Std) / Electronic(Optional) | |||||
Max Water Temperature | 104℃ | |||||
ALTERNATOR DATA | ||||||
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards. | ||||||
Number of Phase | 1 | |||||
Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
Number of Bearing | 1 | |||||
Power Factor | 1 | |||||
Protection Grade | IP23 | |||||
Altitude | ≤1000m | |||||
Exciter Type | Brushless,self-exciting | |||||
Insulation Class,Temperature Rise | H/H | |||||
Telephone Influence Factor(TIF) | <50 | |||||
THF | <2% | |||||
Voltage Regulation,Steady State | ≤±1% | |||||
Alternator Capacity | 27.5KVA | |||||
Alternator Efficiencies | 86.2% | |||||
Air Cooling Flow | 0.095m3/s | |||||
Dimension & Weight | ||||||
Open Type | Soundproof Type | |||||
Overall Size:1.80(m)×0.75(m)×1.35(m) | Overall Size:2.20(m)×1.00(m)×1.45(m) | |||||
Weight:876kg | Weight:1300kg | |||||
DIGITAL PANEL | ||||||
| ||||||
ATS+DIGITAL PANEL | ||||||
![]() |
