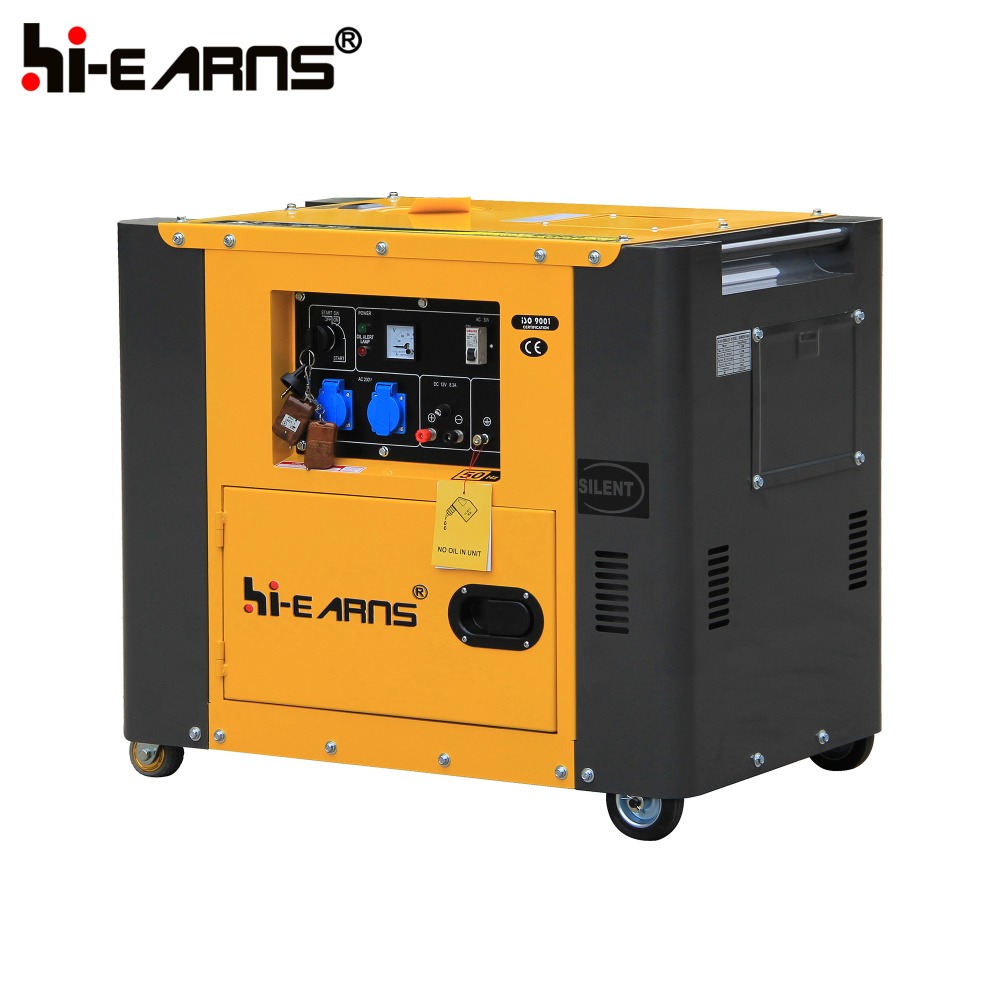

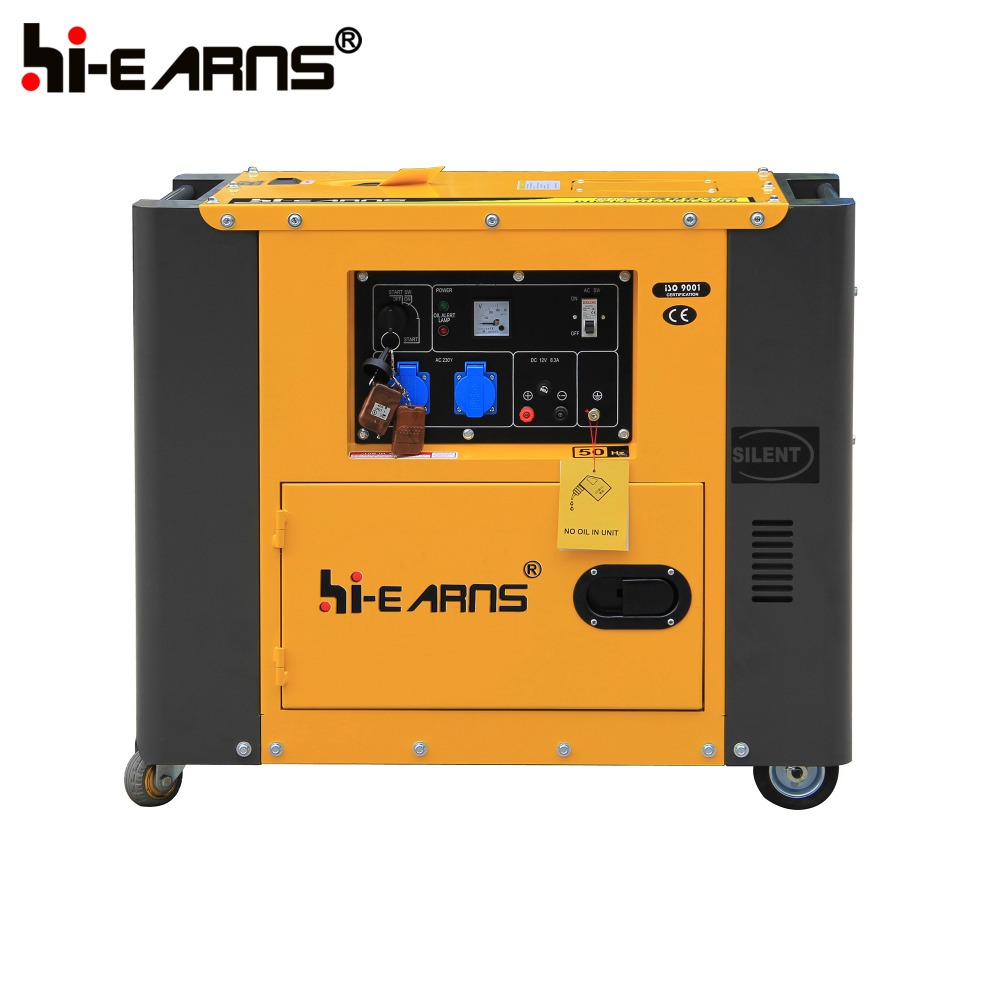

5KVA Keqiang type 186FA Air-cooled Silent diesel generator
| NERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5.0 | 5.5 | |
| Rated output(kw) | 4.6 | 5.0 | |
| Rated. AC voltage(v) | 220,230,240,220/380,230/400,240/415 | ||
| Power factor(cosΦ ) | cosΦ =0.8 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 65~68 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8 | ||
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | No | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 890×520×780 | |
| Net weight(kg) | 160 | ||
| 20FT | 72 | ||
| 40HQ | 156 | ||
air-cooled generator
