Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-200KW/250KVA
- Rated Voltage:
- 220V/380,230/380,240/415V
- Rated Current:
- 380A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- digital panel/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- three
- Engine type:
- SC9D340D2
Supply Ability
- Supply Ability:
- 50 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Wooden with plastic film
Delivery time: 25 days
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products

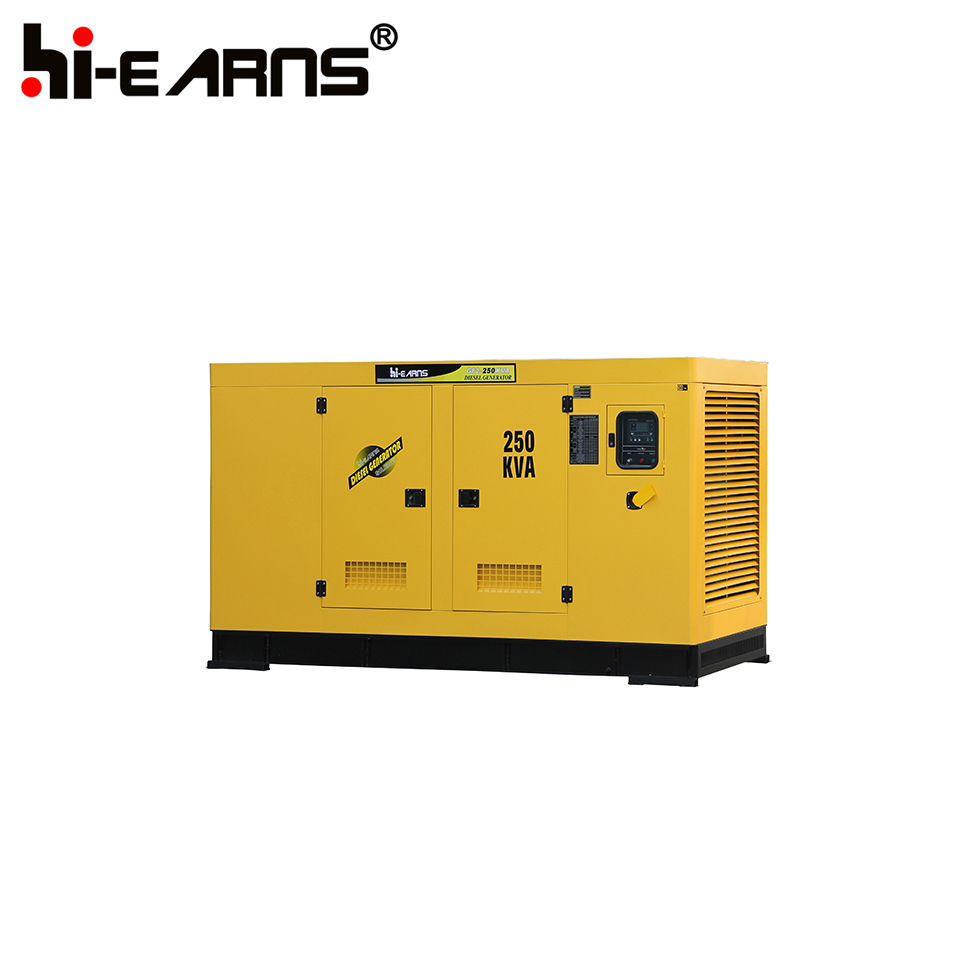

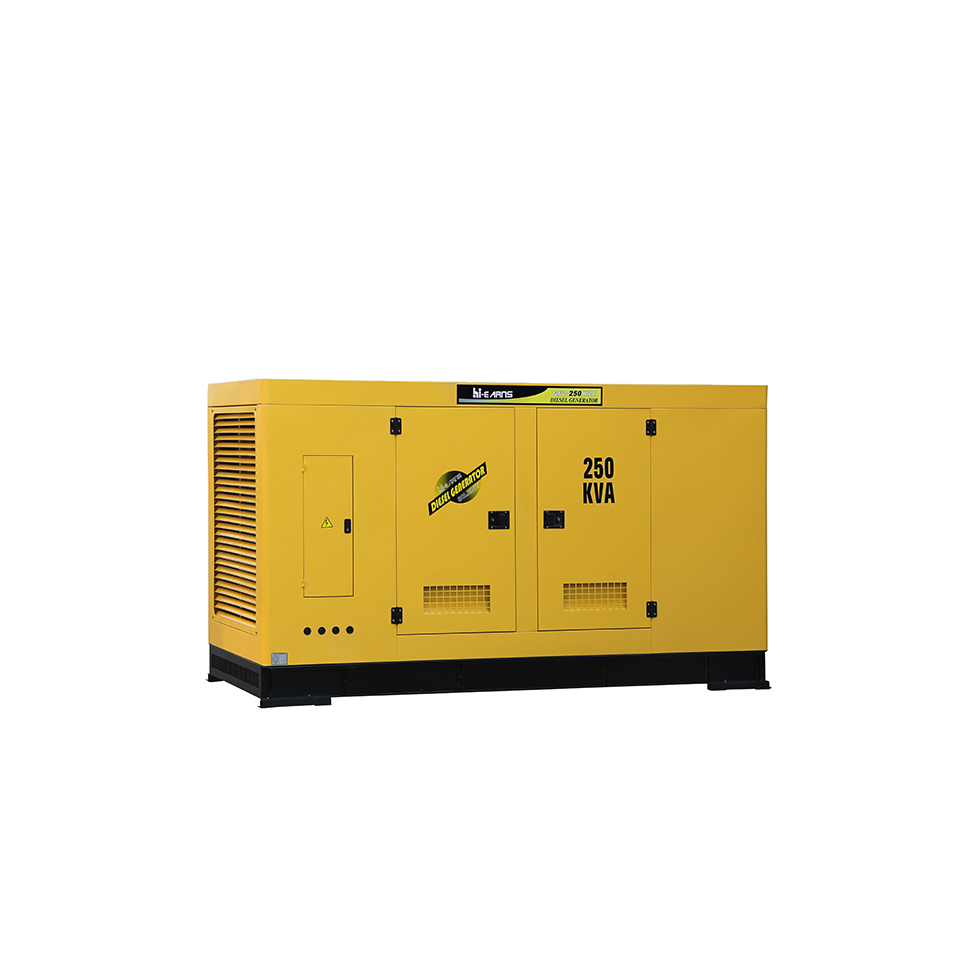

GF2-250KVA silent three phase water cooled diesel generator
| MODEL | GF- 250KVA | |||||
| Standby Power (50HZ ) | 212KW / 265KVA | |||||
| Prime Power (50HZ ) | 200KW / 250KVA | |||||
| Voltage | Frequency (HZ) | Phase | P.F | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 348 | 212/265 | 200/250 |
| 415/240 | 50 | 3 | 0.8 | 369 | 212/265 | 200/250 |
| 400/230 | 50 | 3 | 0.8 | 383 | 212/265 | 200/250 |
| 380/220 | 50 | 3 | 0.8 | 403 | 212/265 | 200/250 |
| ENGINE DATA | ||||||
| Model | SC9D340D2 | |||||
| Diesel Generator Type | Direct injection,Direct line,Four stroke, Water-cooled | |||||
| Cylinder Number | 6 | |||||
| Bore×Strokemm) | 135×155 | |||||
| Compression Rate | 14.8:1 | |||||
| Total Displacement (L) | 13.3 | |||||
| Rated Fuel Consumption (g/kW·h) | 210 | |||||
| Timing Method | Mechanical Governor | |||||
| ALTERNATOR DATA | ||||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Rated Speed Regulation % | 5% | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size (mm):2550×1200×1340 | Overall Size (mm):2800×1300×1440 | |||||
| Weight :1820kg | Weight :1870kg | |||||
