Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP20E
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Sewage treatment/Building system/Agricultural/Power station
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- diesel water pump:
- water pump
- engine:
- HR170F
- color:
- optional
- Design:
- New
- Warranty:
- 1 Year
- Engine type:
- 4-strock
- Quality:
- Best
- Life time:
- Longer
- Price:
- More competitive
- Certificate:
- ISO9001 CE
- CE Certified.
- Valid from 2014-01-08 until 2025-09-08
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 52X48X67 cm
- Single gross weight:
- 57.0 kg
- Package Type:
- Carton
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 >20 Est. Time(days) 15 To be negotiated

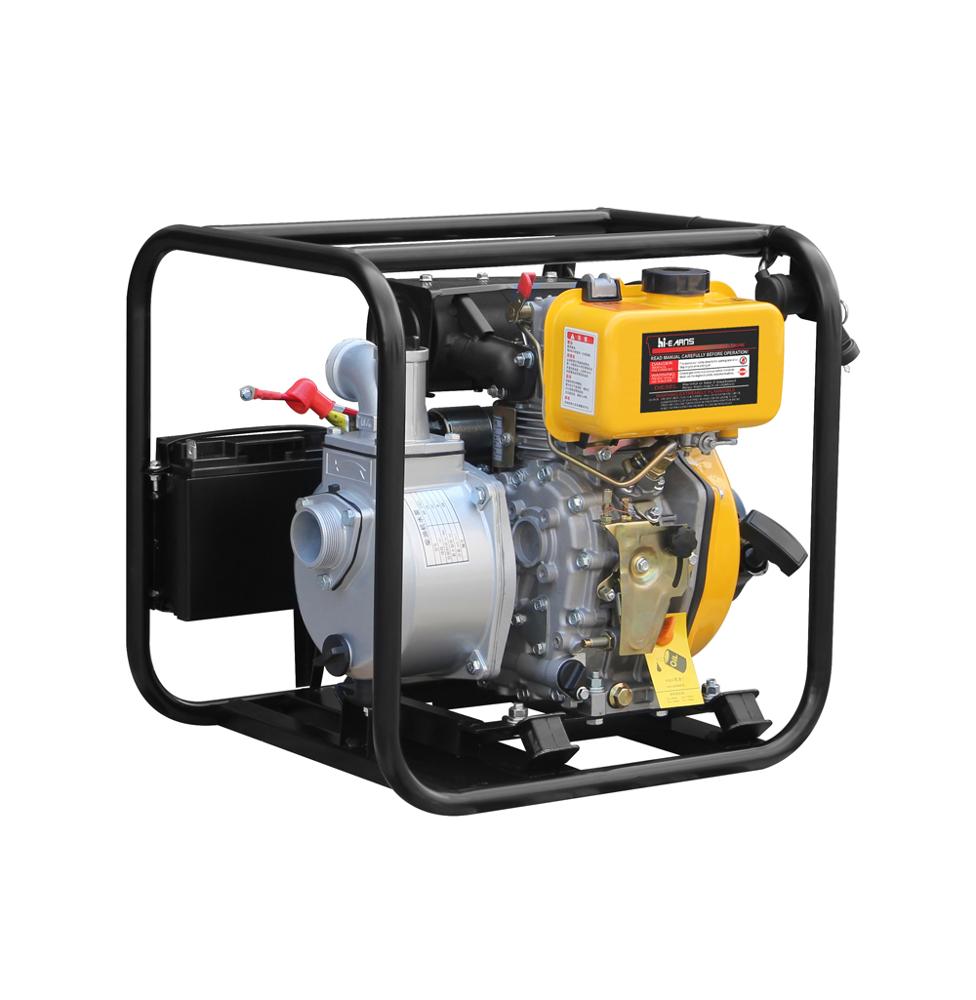

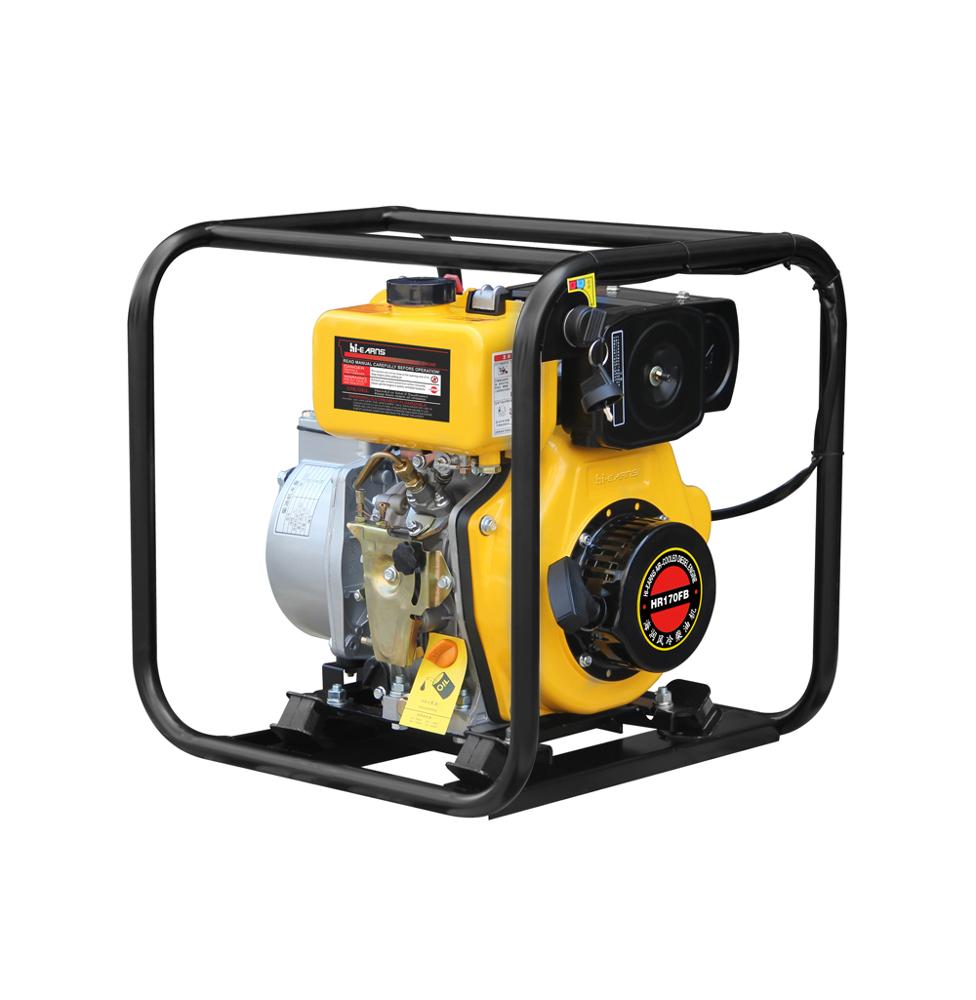

diesel water pump(DP20E)
| WATER PUMP | Model | DP20E | |
| Suction,discharge port diameter[mm(in)] | 50(2") | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170F | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 211 | ||
Bore*stroke(mm) | 70*55 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 12.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 520×480×670 | |
| Net weight(kg) | 55 | ||
| 20FT | 144 | ||
1.Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products,and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2.Customer First:
We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.
3.Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4.Low fuel consumption, easy maintenance
5.Certification: CE,ISO etc.
6.Our logo or OEM
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
