Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG12000SE/DG12000SE3
- Rated Voltage:
- 220/380
- Rated Current:
- 32A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- type:
- portable silent generator
- engine:
- 198FA
- alternator:
- 100% copper wires
- Control panel:
- Common/digital/ATS
- Output:
- 7.5KW
- Running speed:
- 3000rpm
- Phase:
- Single phase or Three phase
- Options:
- Customer's Logo
- Certificate:
- CE/ISO9001
- Warranty:
- 1 Year
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 108X75X88.5 cm
- Single gross weight:
- 254.0 kg
- Package Type:
- Carton with plywood plate
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 30 >30 Est. Time(days) 15 25 To be negotiated
Related Products
1.silent, electric, with 36AH storage battery
2.low fuel consumption
3.with four solid wheel
4.good quality and after sales service

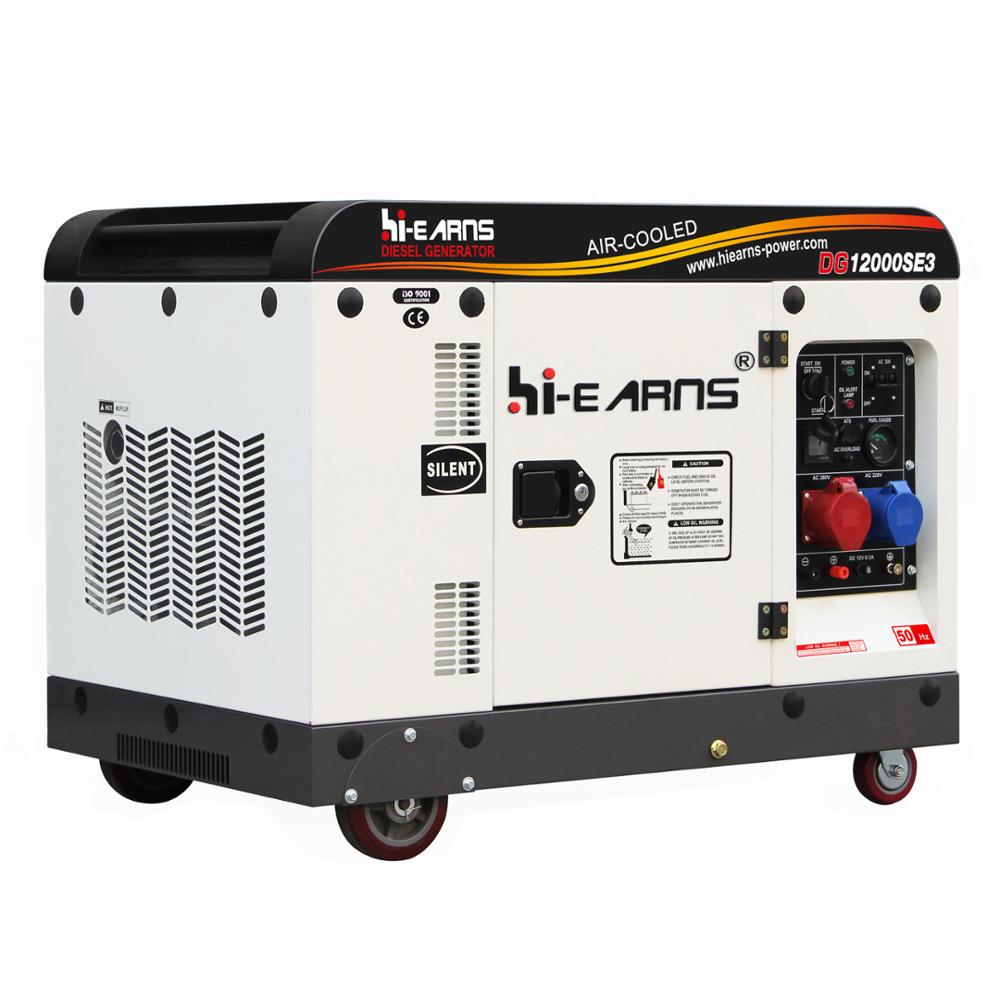

Air-cooled single cylinder 7.5kva generator price with diesel engine
| Model | DG12000SE(3) | |
| Generator | Frequency(Hz) | 50 |
| Max. output(KW) | 8 | |
| Rated output(KW) | 7.5 | |
| Rated AC voltage(V) | 120,220,230,240,220/380,230/400 | |
| Power factor | 1 | |
| DC output(V/A) | 12/8.3 | |
| Phase | Single phase / Three phase | |
| Alternator type | Self-excited,2-pole, Single phase / Three alternator | |
| Starting system | electric | |
| Noise level(7m)(dB) | 72-75 | |
| Fuel tank capacity(L) | 27 | |
| Continuous work(H) | 12 | |
| ENGINE | Engine Model | HR198FA |
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×Stroke | 98×84 | |
| Fuel Consumption rate g/kw/h | ≤230 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume(L) | 1.65 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Package size(LxWxH)(mm) | 1080x750x885 |
| Net Weight(kgs) | 234 | |
| Gross Weight (kgs) | 254 | |
| 20FT loading pcs | 30 | |
| 40HQ loading pcs | 96 | |
