Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns: diesel water pump
- Model Number:
- DP40
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- clean water
- Power:
- 10HP
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Theory:
- Centrifugal Pump
- engine:
- 186FA 10HP
- color:
- optional
- diesel water pump model:
- DP40 4 inch
- diesel water pump power:
- 186FA 10HP diesel engine, 4 inch
- Product name:
- 4 inch DP40 hand start 186FA 10hp diesel water pump
- Certificate:
- ISO9001:2008
- Warranty:
- 1 Year
- Name:
- 4 inch DP40 hand start 186FA 10hp diesel water pump
- Feature:
- High Efficiency
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Carton
- Port
- FOB SHANGHAI or CIF destination port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 101 - 200 >200 Est. Time(days) 5 10 15 To be negotiated

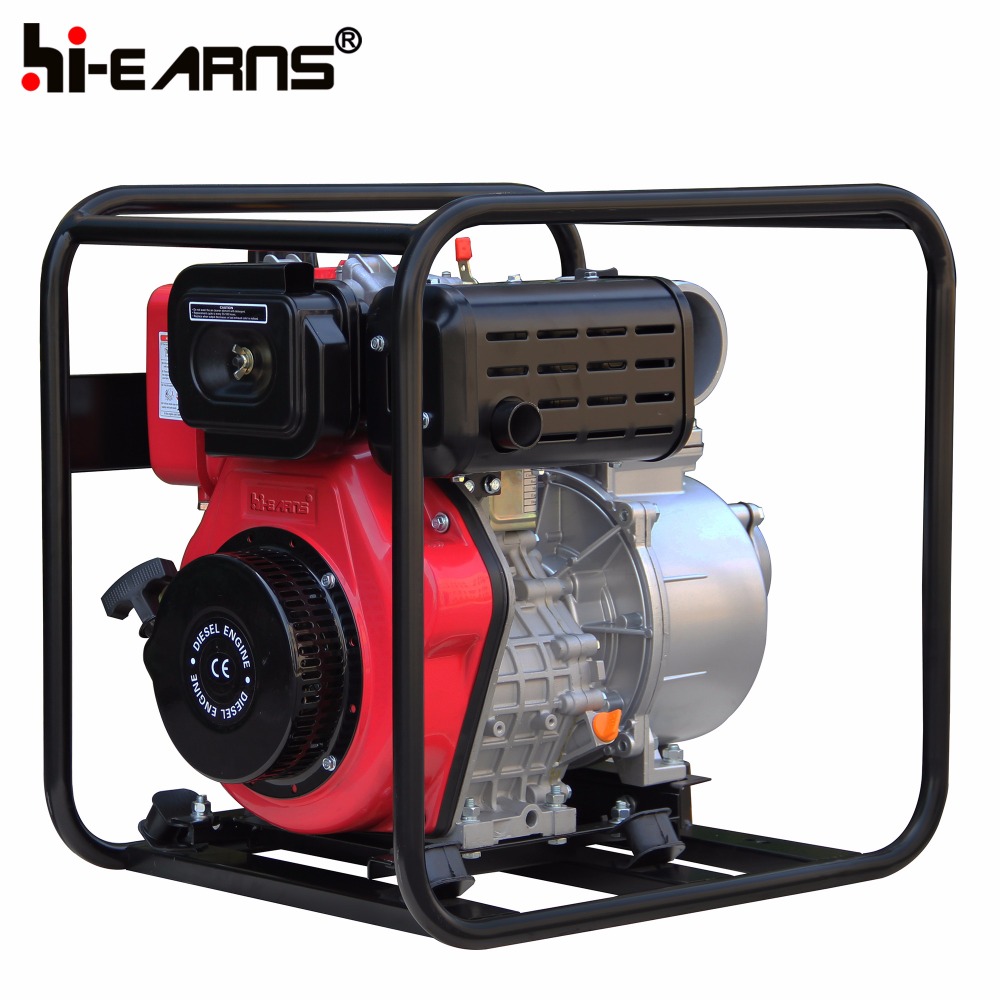

4 inch DP40 hand start 186FA 10hp diesel water pump
♦ Use good brand spare parts, big cont. head
♦ Portable type, easy to move and lifting, portable diesel powered DP40 water pump
♦ We are factory, have low price spare parts and timely technical support
Related Products
| WATER PUMP | Model | DP40 | |
| Suction,discharge port diameter[mm(in)] | 100(4"") | ||
| Cont.head(m) | 31 | ||
| Self-priming time(s/4m) | 180 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 96 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 285 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| 406 | |||
| 86*72 | |||
| Recoil or Electric | |||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 645×475×605 | |
| Net weight(kg) | 69 | ||
| 20FT | 99 | ||
