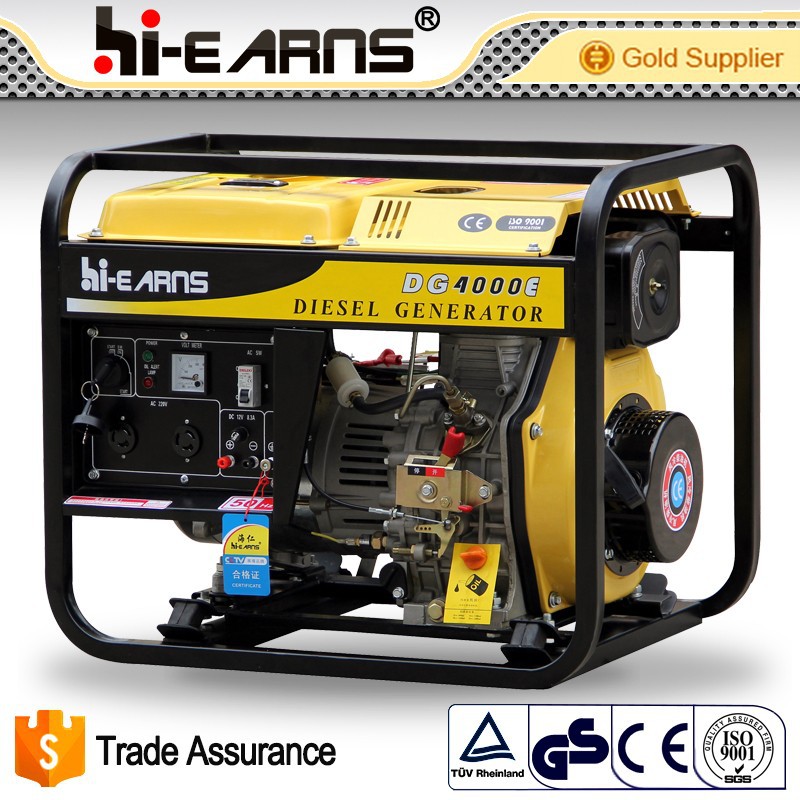

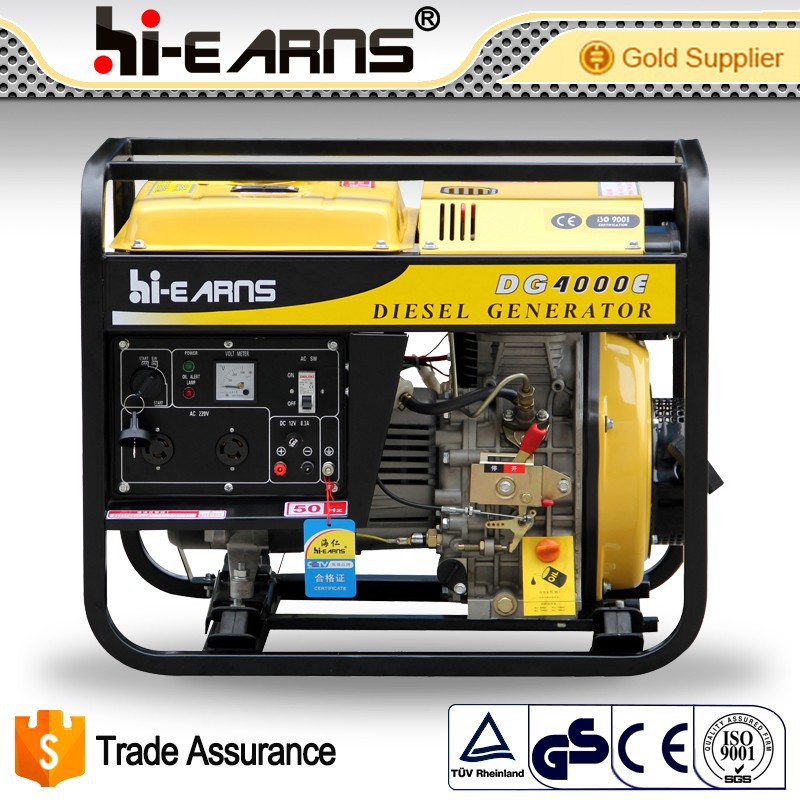

Open frame air-cooled portable 3KVA diesel generator
♦DG4000E model: With 7HP HR178F air cooled diesel engine and 100% copper wire KETE alternator ensure a 3KW rated output, and 3.2KW max. output!
♦Electric start with 20AH battery;
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap.
| GENERATOR | Model | DG4000 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 3.3 | 3.5 | |
| Rated output(kw) | 3 | 3.3 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Recoil or Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 9.2 | 8.5 | |
| ENGINE | Model | HR178FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 78× 64 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.1 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 700× 480× 590 | |
| Net weight(kg) | 65 | ||
| 20FT | 130 | ||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
Care & Maintenance
About Us
Exhibition
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
