Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000E
- Rated Voltage:
- 220,120/240,220/380
- Rated Current:
- 20.9A
- Speed:
- 3000/3600rpm
- Frequency:
- 50HZ/60HZ
- diesel generator:
- portable diesel generator
- color:
- optional
- frame:
- diff. pipe dimension for your choice
- max.output:
- 8.0kw
- rated output:
- 7.5kw
- phase:
- single or three phase
- Starting system:
- electric
- bore*stroke:
- 98*84
- Fuel Tank Capacity:
- 27L
- Certificate:
- CE/ISO9001
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 95X63X72 cm
- Single gross weight:
- 161.0 kg
- Package Type:
- carton box with plywood coverplate
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated
Related Products

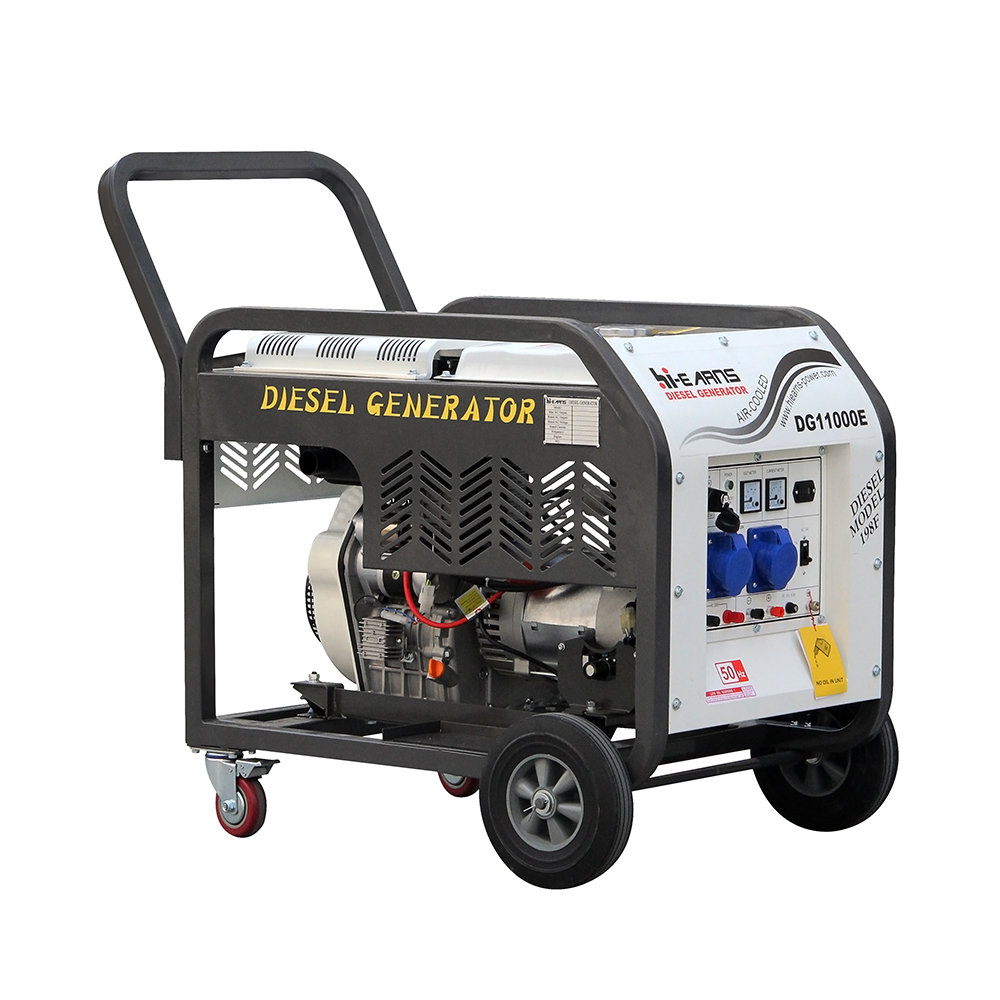

7.5KW aire cooled portable diesel generator DG11000E
| GENERATOR | Model | DG11000E |
| Frequency(HZ) | 50 | |
| Max. output(kw) | 8.0 | |
| Rated output(kw) | 7.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | |
| Power factor(cosΦ ) | cosΦ =1 | |
| DC output (v) | 12V/8.3A | |
| Phase | Single phase | |
| Alternator type | self-excited, 2-pole, single phase alternator | |
| Starting system | Electric | |
| Operating noise level(at 7m) | 80~85 | |
| Fuel tank capacity(L) | 27 | |
| Continues work(hr) | 11 | |
| ENGINE | Model | HR198FA |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Bore× stroke(mm) | 98×84 | |
| Fuel | 0# or -10# light diesel fuel | |
| Lubrication oil volume(L) | 1.65 | |
| Combustion system | Direct lnjection | |
| STANDARD FEATURES | Voltmeter | yes |
| AC Output Socket | 2 | |
| AC circuit breaker | yes | |
| Oil warning light | yes | |
| Oil alert | yes | |
| OPTIONAL FEATURES | DC circuit breaker | optional |
| Calculagraph | optional | |
| Big Wheel | optional | |
| Three phase voltage | optional | |
| Current meter | optional | |
| ATS | optional | |
| Remote control | optional | |
| Welding | optional | |
| DIMENSIONS | Dimension(L× W× H)(mm) | 920×720×705 |
| Net weight(kg) | 155 | |
| 20FT | 63 |
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
