Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG8500SE
- Rated Voltage:
- 220,230,240V
- Rated Current:
- 27.2A
- Speed:
- 3000rpm
- Frequency:
- 50/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- panel:
- Voltmeter/AC switch
- Engine:
- 192FD
- Alternator:
- SENCI or KETE
- Rated output:
- 6KW/6.5KW
- Type:
- Silent and electric
- Warranty:
- One Year
- Wheel:
- Solid rubber wheel /universal wheel
- Design:
- New
- Noise:
- 68-72dB
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 91X53.5X70 cm
- Single gross weight:
- 155.0 kg
- Package Type:
- carton with plywood
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 20 25 To be negotiated

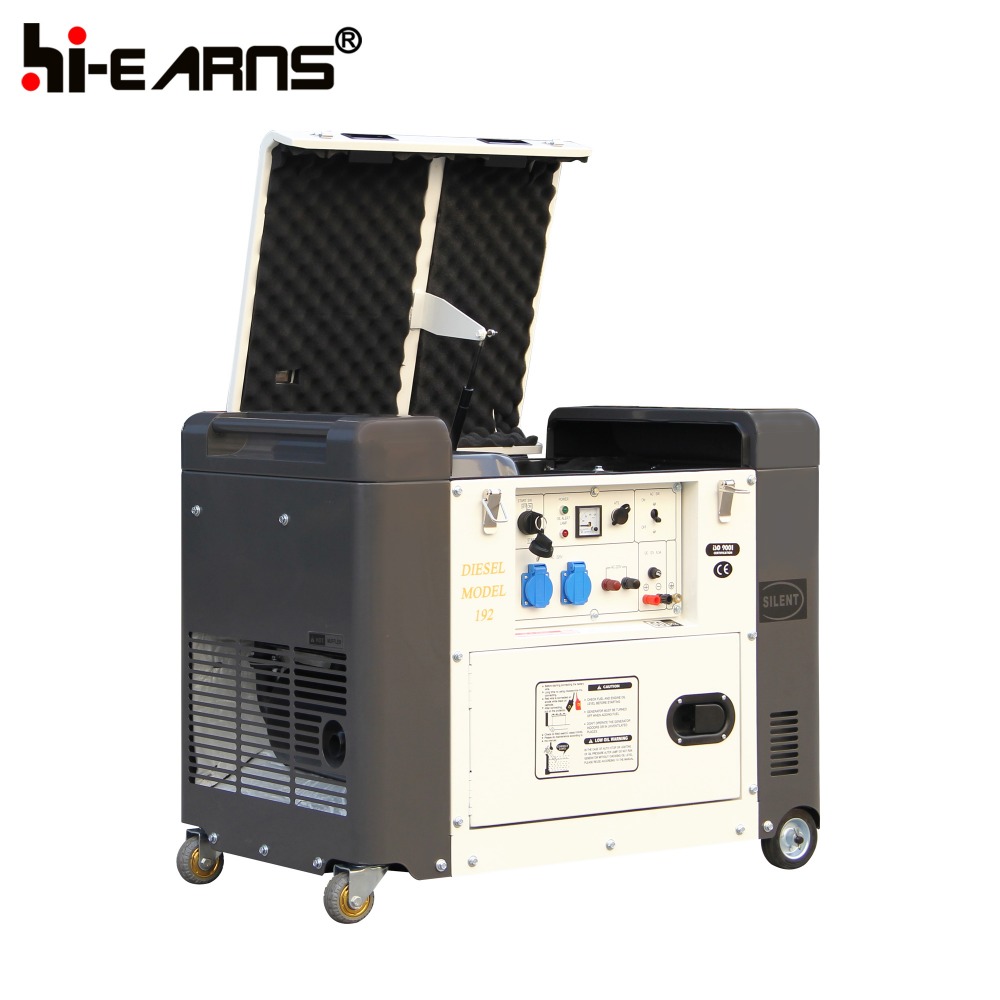

DG8500SE 6KW silent air cooled diesel generator
| GENERATOR | Model | DG8500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.5 | 7 | |
| Rated output(kw) | 6.0 | 6.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 72~75 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 6.5 | 6 | |
| ENGINE | Model | HR192FD | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 92× 75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 920× 560× 780 | |
| Net weight(kg) | 155 | ||
| 20FT | 72 | ||
air-cooled generator
