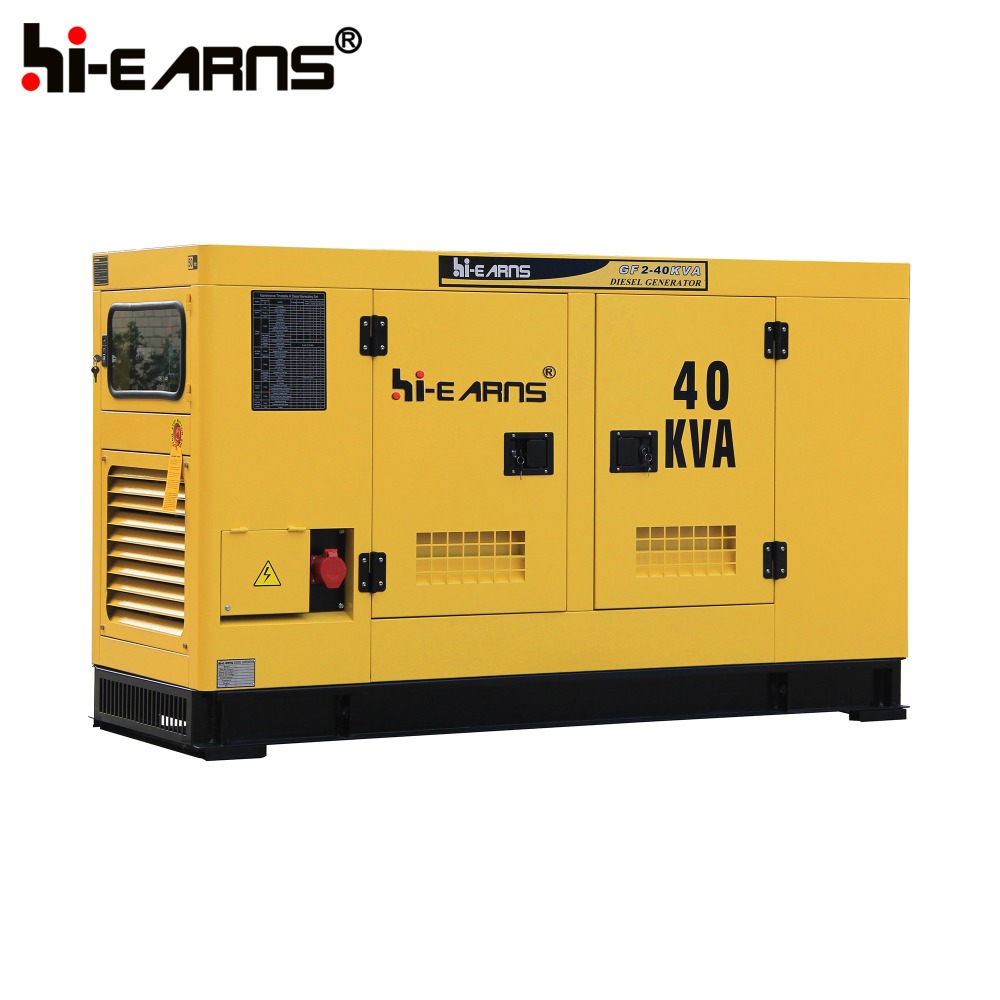

50KVA 40KW Silent type Water cooled diesel generator set
| Genset Model | WEIFANG HUADONG ENGINE TACHNICAL DATA | |
| Genset Model | GF2-40KW | |
| Engine Data | Engine Model | R4105D |
| Engine Type | Four stroke,Water-cooled,Direct line,Turbo type | |
| Rated Output | 40KW / 50KVA | |
| Max. Output | 43KW / 54KVA | |
| Voltage (V) | 380/220 | |
| Current (A) | 75 | |
| Frequency (HZ) | 50 | |
| Rated RPM (r/min) | 1500 | |
| Cooling System | Forced Water-cooled | |
| Fuel Consumption (≤g/kw.h) | ≤231 | |
| Compression Ratio | 17:01 | |
| Bore×Stroke (mm) | 105X125 | |
| Displacement (L) | 4.33 | |
| Start Method | Electric Start | |
| Alternator Data | Power Factor | 0.8 Lag |
| Insulation Class | H | |
| Lubricating System | Pressure,Split,Complex | |
| exhaust Air Temperature (°C) | ≤600 | |
| Altitude | ≤1000m | |
| Environment Temperature (°C) | 40 | |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |
| Ignite sequence | 1-3-4-2 | |
| Intake Type | pressurize | |
| Rated Speed Regulation % | ≤±1% | |
| Phase | 3 | |
| Dimension | Silent Type"s Net Weight(kg) | 860 |
| Silent Type"s Dimension Length × Width × Height (mm) | 2150×950×1290 | |
| Silent Type"s 20FT Loading Quantity | 6PCS | |
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
