Home > Products > Water-cooled types of electric power generator

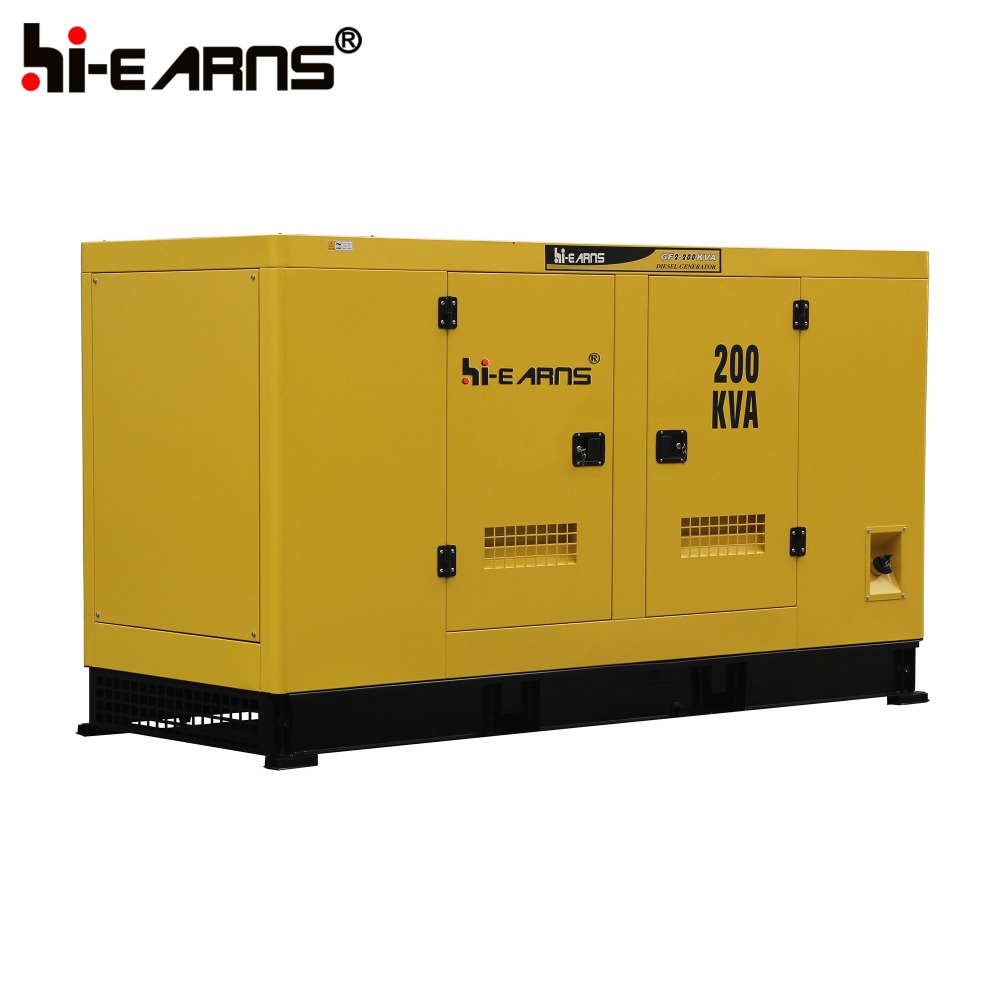

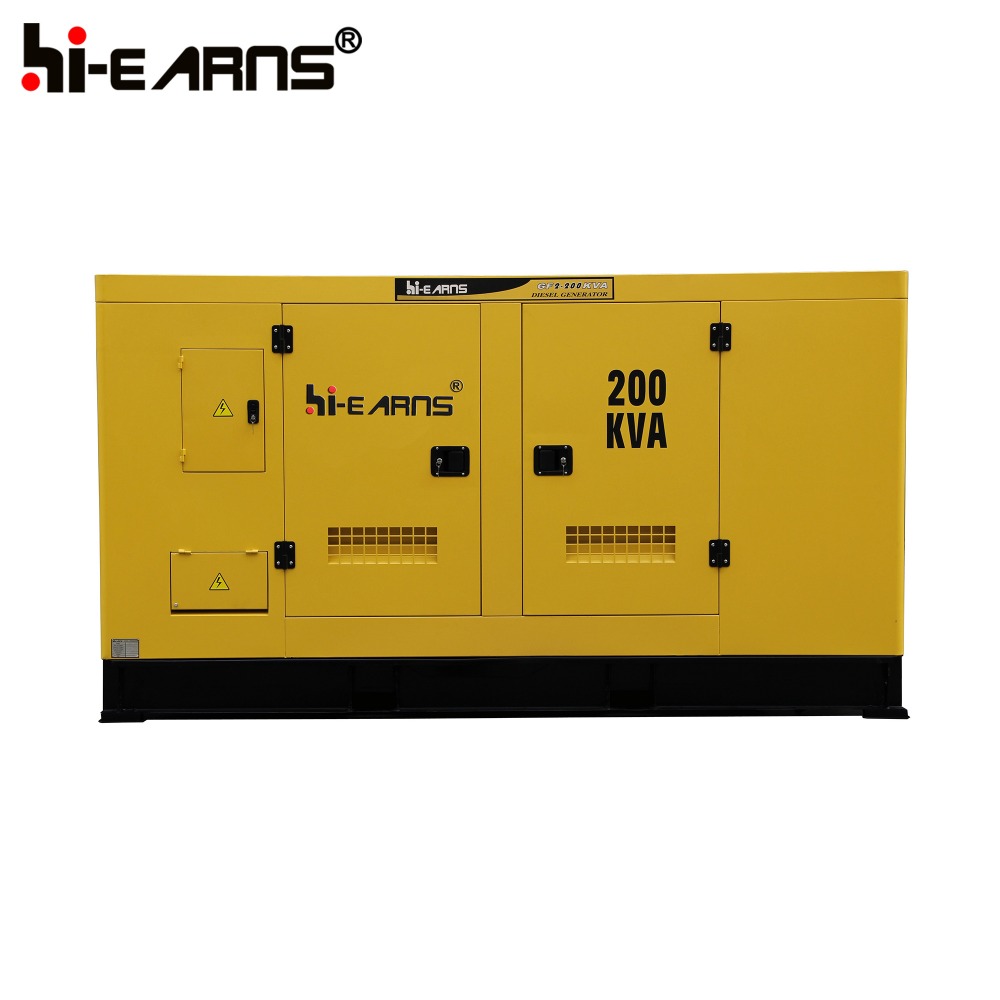

Water-cooled types of electric power generator
Click on the image to view the original image
Product： views：13Water-cooled types of electric power generator
Branch： Hi-earns
Size： 253X88X165 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:37
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-180KVA
Rated Power:
180KVA
Output Type:
AC Three Phase
Rated Voltage:
220/380, 230/400V
Speed:
1500rpm/1800rpm
Frequency:
50/60HZ
noise level:
silent

Packaging & Delivery

Selling Units:
Single item
Single package size:
253X88X165 cm
Single gross weight:
1900.0 kg
Package Type:
Carton with plastic film.
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 12 - 10>10
Est. Time(days)1020To be negotiated

Water-cooled silent type diesel generator set(GF2- 180KVA )


ModelGF2-188KVA
Standby power(50HZ)160KW/200KVA
Prime power(50HZ)145KW/181KVA
Voltage(V)220/380V
Phase3
P.F(COSφ)      0.8
Standby Amps(A)262
Engine typeDCEC Cummins 6CTA8.3-G2, 4-stroke
Air intake systemturbo
Fuel system

PB/W fuel pump

Fuel consumption(g/kw.h)

≤ 215

Cylinder arrangement

6 in line

Displacement8.3L
Bore x Stroke114 x 135(mm)
Compression Ratio17:1
Rated RPM1500rpm
Max.Standby Power at Rated RPM180KW/244HP
Governor TypeElectronic
Max Water Temperature104 degree celsius
Alternator Data
Number of Phase3
Connecting Type3 Phase and 4 Wires, "Y" type connecting
Number of Bearing1
Power Factor0.8 Lag
Protection GradeIP23
Altitude≤ 1000m
Exciter TypeBrushless, self-exciting
Insulation Class,Temperature RiseH/H
Telephone Influence Factor(TIF)<50
THF<2%
Voltage Regulation, Steady State≤±1%
Alternator Capacity182KVA
Alternator Efficiencies92.4%
Air cooling Flow0.514m3/s
Overall Size2.53x0.88x1.65(m)
Weight1900kg







Advantages

♦ Economic and practical products from hi-earns,reliable performance.

♦ Choose hi-earns,choose a rest assured.

♦ Advanced production lines and test rooms.

♦ Complete system of IQC.

♦ Perfect QCP.





IQC

♦ Strict spare parts IQC system,to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.





Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.

♦ Test engine at least twice before ex-factory.



Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦  7 layer corrugated carton or plywood box packagine for products.



Company Information

♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.

♦ Modern office building,we warmly welcome your visiting.

♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.

♦ ISO,CE,GS,Rohs certificates.We have been making good progress.

How to come to Hi-earns?

♦ Line 1:TAXI

Shanghai International Airport(Pudong)

Cost(USD):85

Time:2.5 hours

♦Line 2:High speed rail

Shanghai Hongqiao railway station---Changzhou railway station

Cost(USD):20

Time:1 hour



Our Services

♦ With all the technical advantages,we promise customer one year warranty.

♦ Low price spare parts provided beyond warranty period.

HI-EARNS ALWAYS PROVIDE THE BEST,WE LISTEND TO YOUR NEEDS.

Any time you need us,we are here!
