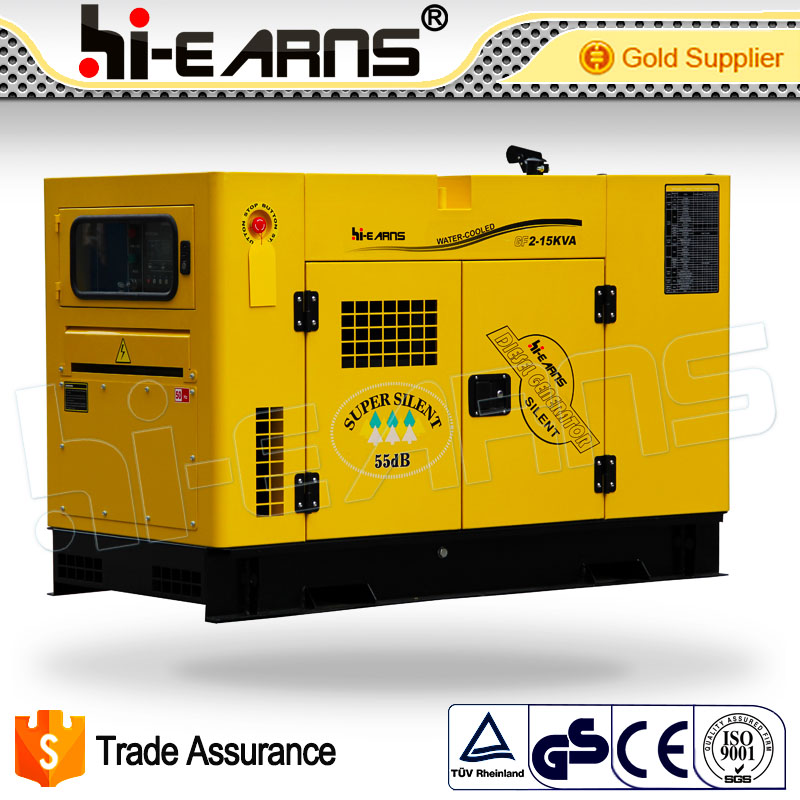

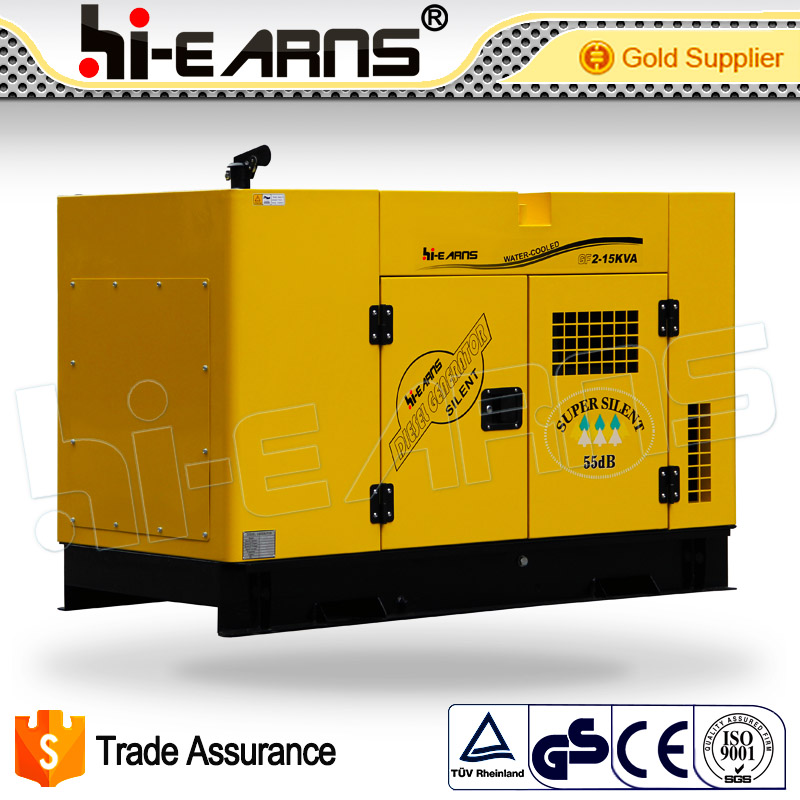

12KW Water-cooled diesel generator 15KVA Super silent diesel generator
1.Super silent canopy ensure the noise level under 55DB;
2.low fuel consumption,big fuel tank
3.With Chinese famous Quanchai brand N485D diesel engine
4.Different color are optional
| Standby Power | 12.8 KW / 16KVA |
| Prime Power | 12KW / 15KVA |
| Model | N485D |
| Cylinder Number | 4 |
| Bore×Stroke(mm) | 85×95 |
| Displacement(L) | 2.156 |
| Rated RPM(r/min) | 1500 |
| Rated Speed Regulation % | ≤5 |
| Rated Fuel Consumption(g/kW·h) | ≤245 |
| Cylinder Head Type | Dry type |
| Diesel Generator Type | Direct line,Water-cooled,Four stroke |
| Intake Type | Natually-Aspirated |
| Combustion Chamber Type | Direct Injection |
| Lubricating System | Pressure,Split,Complex |
| Flywheel Cover Specification | SAE4# |
| Flywheel Specification | SAE7.5″ |
| Exhaust Fan Diameter(mm) | φ410 |
| Flywheel Teeth Number | 109 |
| Add Oil Capacity | 5L |
| Voltage (V) | 380/220 |
| Frequency (HZ) | 50 |
| Insulation Class | S |
| Rated Current (A) | 22.7 |
| Phase | 3 |
| Altitude | ≤1000m |
| Power Factor | 0.8 |
| Voltage Regulation,Stead State | ≤±1% |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| AVR | SX460 |
| Environment Temperature (°c) | 40 |
| Exciter Type | Brushless,self-exciting |
| Protection Grade | IP23 |
| Open Type"s Dimension Length × Width × Height (mm) | 1550×750×1000 |
| Silent Type"s Dimension Length × Width × Height (mm) | 1800×850×1100 |
| Open Type"s Net Weight(Kg) | 608 |
| Silent Type"s Net Weight(Kg) | 658 |
| Open Type"s 20FT Loading Quantity | 14PCS |
| Silent Type"s 20FT Loading Quantity | 12PCS |
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
