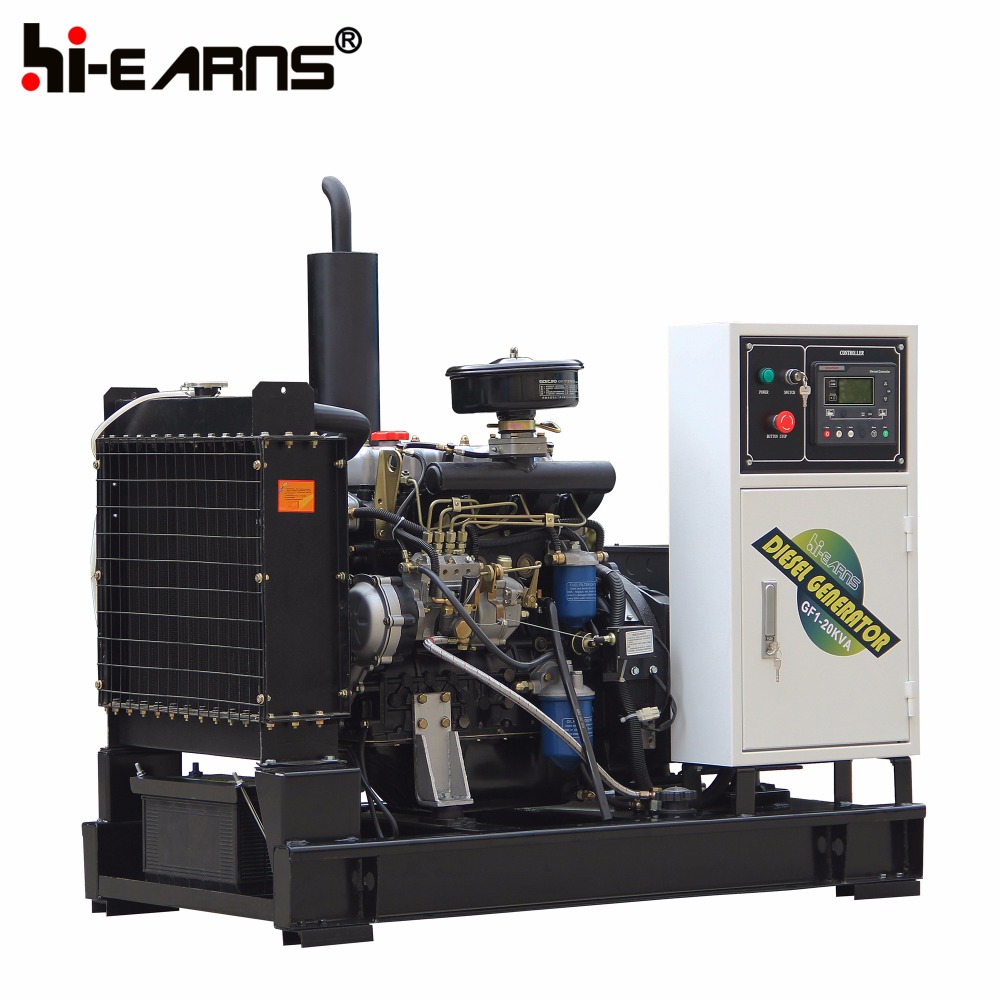

GF1-20KW open frame four cylinder three phase water cooled diesel generator
| ENGINE DATA | ||||||
| Engine Type | Quanchai Engine QC498D. Four stroke,Water-cooled, Direct line | |||||
| Rated RPM(r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption(≤g/kw.h) | ≤241 | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke(mm) | 98×105 | |||||
| Displacement(L) | 3.168 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation(g/kW·h) | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| Add Oil Capacity | 6.5L | |||||
| ALTERNATOR DATA | ||||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:1.85(m)×0.84(m)×1.10(m) | Overall Size:2.00(m)×0.85(m)×1.08(m) | |||||
| Weight:692kg | Weight:752kg | |||||
