14'' high bay acrylic reflector top hole diameter 160mm,top inner circle diameter 117mm,height 230 mm
New Design 14" LED Acrylic Reflector For High Bay Light 45 60 90 120 Degree Optional highbay
Specification
Setting Information | ||
Product Name | Acrylic Reflector | |
Item No. | SL-APR14-45A | |
Inch | 14''' | |
Size | Dia. 360 * H230 mm | |
Beam Angle | 45 deg. / 60 deg. | |
Material | PC / Acrylic | |
Thickness | 2 mm | |
Color | Transparent/Milky (color customized) | |
Product Description
Product Details
Product Details
The 14'' PC reflector upper diameter 160mm, upper inner circle diameter 117mm, two opposite hole diameter 130mm,there are 3 installation holes in the top part
Product Details

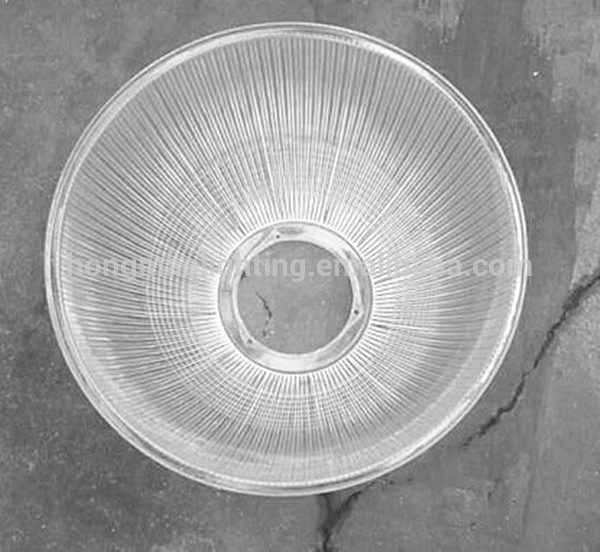

The 14'' acrylic reflector inner view
Product Details
14'' acrylic reflector with transparent cone line bottom cover,also have flat transparent bottom cover,both cover with high light transmittance
16'' 19'' and 22'' PC or Acrylic Reflector
Below adapter can use for 16'', 19'' and 22'' PC or Acrylic reflector
SL-PR16-45A SL-PR19-45A SL-PR22-45A | SL-PR16-45A SL-PR19-45A SL-PR22-45A | SL-PR16-45A SL-PR19-45A SL-PR22-45A | SL-PR16-45A SL-PR19-45A SL-PR22-45A |
16'' : Dia. 410 * H265 mm 19'' : Dia. 478 * H298 mm 22'' : Dia. 570 * H325 mm | 16'' : Dia. 410 * H265 mm 19'' : Dia. 478 * H298 mm 22'' : Dia. 570 * H325 mm | 16'' : Dia. 410 * H265 mm 19'' : Dia. 478 * H298 mm 22'' : Dia. 570 * H325 mm | 16'' : Dia. 410 * H265 mm 19'' : Dia. 478 * H298 mm 22'' : Dia. 570 * H325 mm |
45 - 60 Degree | 45 - 60 Degree | 45 - 60 Degree | 45 - 60 Degree |
PC / Acrylic | PC / Acrylic | PC / Acrylic | PC / Acrylic |
without adapter | with LED high bay adapter | with A1 adapter,can use for E27/E40 base | with A2 adapter,can use for E27/E40 base |
A2 adapter with hanging E27/E40 base | A2 adapter with ceiling E27/E40 base | A3 adapter with ceiling E27/E40 base | A4 adapter with hanging E27/E40 base |
16'' 19'' and 22'' PC or Acrylic Reflector three different bottom cover
Line shape bottom cover | Line shape cone bottom cover | Smooth cone shape bottom cover | Smooth convex shape bottom cover |
406mm,477mm,564mm,627mm | 305mm,405mm,475mm,495mm,562mm | 405mm,475mm,560mm | 490mm,540mm,560mm |
Other PC or Acrylic Reflector
SL-PR12-45A | SL-UPR16-60 SL-UPR19-60 | SL-UPR16-90 SL-UPR19-90 | SL-PR16-90 SL-PR19-90 SL-PR16-120 SL-PR19-120 |
12'' : Dia. 310 * H185 mm | 16'' : Dia. 413 * H180 mm 19'' : Dia. 480 * H220 mm | 16'' : Dia. 413 * H98 mm 19'' : Dia. 480 * H140 mm | 16'' - 90D. :413 * H115 mm 19'' - 90D. :497 * H156 mm 16'' - 90D. :412 * H68 mm 19'' - 90D. :496 * H92 mm |
45 Degree | 60 - 90 Degree | 90 - 120 Degree | 90 - 120 Degree |
PC / Acrylic | PC | PC | PC |
Aluminum Reflector
SL-AR16-120 | SL-UAR19-90 | SL-AR18-60 | SL-PR20-120 |
Dia. 420 * H210 mm | Dia. 470 * H148 mm | Dia. 470 * H255 mm | Dia. 510 * H140 mm |
120 Degree | 60 - 90 Degree | 50 - 60 Degree | 120 Degree |
SL-AR11-30 | SL-AR16-45 | SL-AR16-45C | SL-AR16-45B |
Dia. 280.8 * H200.06 mm | Dia. 420 * H260 mm | Dia. 420 * H265 mm | Dia. 420 * H260 mm |
30 Degree | 45 - 60 Degree | 45 - 60 Degree | 45 - 60 Degree |
HONGMAO LIGHTING FAQ
Q1. Can I have a sample order for led high bay light Aluninum,PC or Acrylic reflector?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the led high bay light Aluninum,PC or Acrylic reflector lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light PC,Acrylic or Aluminum reflector order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the led high bay light Aluninum,PC or Acrylic reflector and how long does it take to arrive?
A: We usually ship by FedEx,DHL, UPS or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Aluminum,PC or Acrylic reflector?
A: Let us know your requirements or application.
B: We quote according to your requirements or our suggestions.
C: Customer confirms the samples and places deposit for formal order.
D: We arrange the production.
Q6. Is it OK to print my logo on led light aluminum,pc or acrylic reflector?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the faulty of led high bay light Aluninum,PC or Acrylic reflector?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
B: Tell us the faulty reason and faulty qty,we will send new replacement at any time.
