Home > Products > HONGMAO Customized 800 * 480 Resolution 7.0 inch TFT LCM LCD Display for digital photo frame

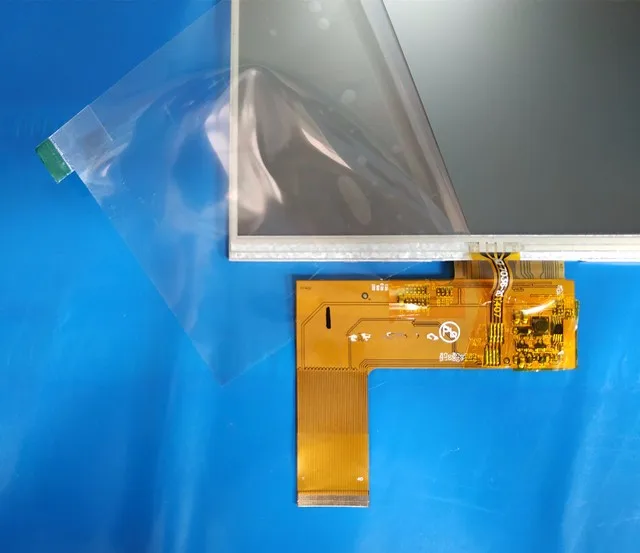

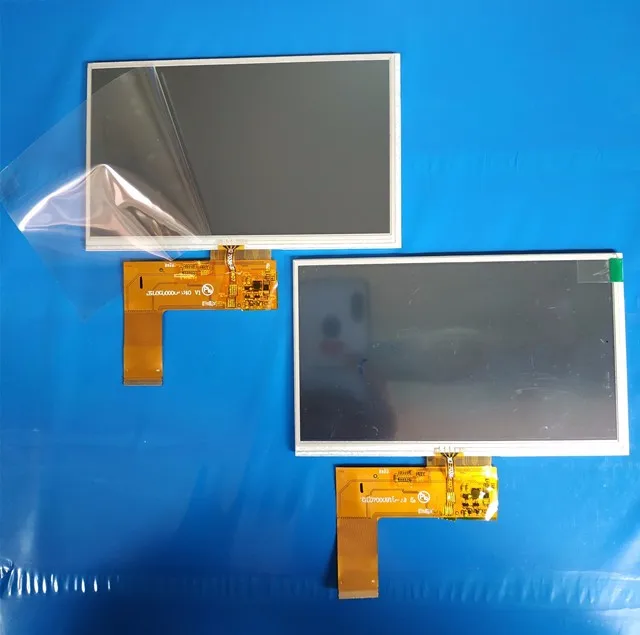

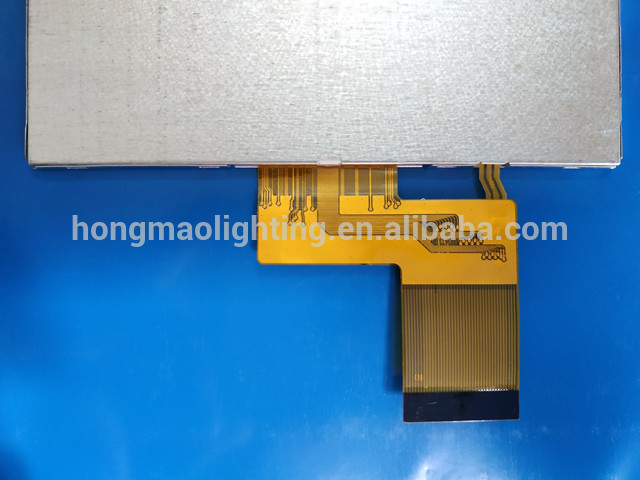

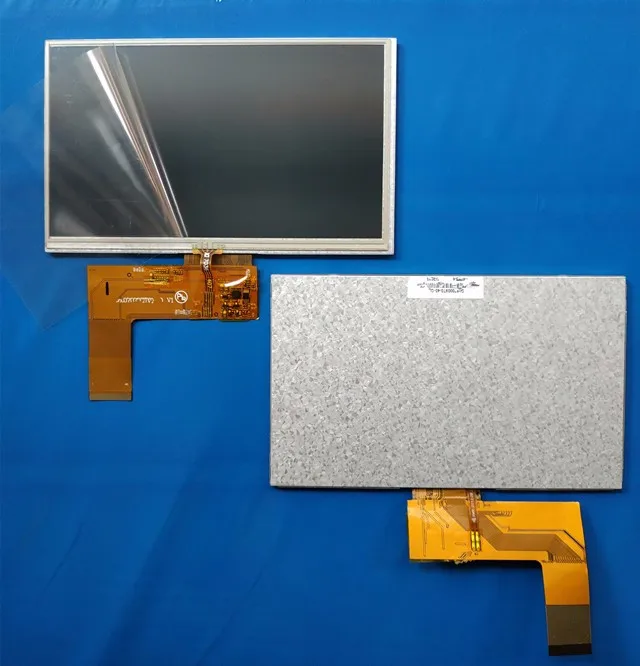

HONGMAO Customized 800 * 480 Resolution 7.0 inch TFT LCM LCD Display for digital photo frame
Click on the image to view the original image
Product: views:2HONGMAO Customized 800 * 480 Resolution 7.0 inch TFT LCM LCD Display for digital photo frame
Branch: HONGMAO
Type: TFT
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 19:34
  Negotiated
Product Details
Overview
Quick Details
Type:
TFT
Place of Origin:
Guangdong, China
Model Number:
HM-070009T0-40
Brand Name:
HONGMAO
Item:
HM-070009T0-40
Outline:
164.9 * 100 * 2.9mm (7 inch)
Active Area:
154.08 * 85.92 mm
Resolution:
800*480
Pin of Singnal Interface:
40 Pins
Material:
TFT
Pixel Arrangement:
RGB
Display Mode:
TN
The Best View:
12 o'clock
Drive Screen Voltage:
3.3V
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10pcs/carton
Port
Shenzhen
Lead Time:
5-6days for samples,7-15days for bulk order
Specification
Product Name
TFT LCD
Item No.
HM-070009T0-40
Inch
7"" (Inch)
Outline
Dia.164.9 * W100 * H2.9 mm
Active Area
154.08 * 85.92 mm
Resolution
800 * 480 mm
Pin of Singnal
40 Pins
Driver Screen Voltage
3.3V
Pixel Arrangement
RGB
Display scale
15:09
Pixel Pitch
0.1926×0.1790 mm
Technology
a-Si TFT-LCD
Luminance
300 nits
Contrast Ratio
500:01:00
Color
16M
Color Saturation
50%(typ.)
Response
25 ms
Viewing Angle
70/60/70/70(Up/Down/Right/Left)
Backlight
White LED
Lamp Number
14 PCS
Voltage of Lamp
3.2V
Current of Lamp
20mA
Scanning Frequency
60Hz
Pitch of Singnal Interface
0.5 mm
Operation Temperature
-20 °C ~ 70 °C
Storage Temperature
-30°C ~ 80°C
Surface Technology
Hard coating (3H)
Other Size LCD
HONGMAO LIGHTING FAQ

Q1. Can I have a sample order for led high bay light Aluninum,PC or Acrylic reflector?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the led high bay light Aluninum,PC or Acrylic reflector lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light PC,Acrylic or Aluminum reflector order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the led high bay light Aluninum,PC or Acrylic reflector and how long does it take to arrive?

A: We usually ship by FedEx,DHL, UPS or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Aluminum,PC or Acrylic reflector?

A: Let us know your requirements or application.
B: We quote according to your requirements or our suggestions.
C: Customer confirms the samples and places deposit for formal order.
D: We arrange the production.

Q6. Is it OK to print my logo on led light aluminum,pc or acrylic reflector?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: How to deal with the faulty of led high bay light Aluninum,PC or Acrylic reflector?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
B: Tell us the faulty reason and faulty qty,we will send new replacement at any time.
