2015 high quality best price tritium led lighting strip
The highest resolution Digital LED Strip in the market, 144LED/M ws2811 LED Strip, inbuilt IC ws2811, each LED be controlled individually.
1. Parameter
DC5v, 43.2watt/meter;
5050 RGB, 144leds/meter, each LED separately control
Inbuilt IC ws2811
Grey scale: 256;
FPC Width: 10mm;
FPC color: white;
Both waterproof (IP65, IP67,IP68) and non- waterproof(IP40) are available;
Colors: Full color changing
0.5meters/reel in anti-static bag.
2. Different versions available
| |||||||||||||||||||||||||||||||||||||||||||||||
3. Protection rate
IP40---No waterproof;
IP65---Epoxy coating;
IP67---Silicone tube;
IP68---PVC+epoxy.
4. Control System
Small-scale control. 1000s, off-line working, can control MAX 2048 Pixels;
Large-scale control. 300K, on/off-line working, can control MAX 8192 pixels;
Compatible with Arduino and DMX512.
5. Application
1) Architectural decorative lighting
2) Path and accent lighting
3)Amusement park, theater & aircraft cabin mood lighting
4)Emergency hallway lighting
5)Auditorium walkway lighting
6.Notice
Make sure the connection is correct according to the diagram.
Keep the surface of installation place clear and smooth, avoiding the strip fall off.
DO NOT press the LED.
DO NOT run over the peak value.
DO NOT attempt to make sharp bends with the strip.
DO NOT install where water or high humidity may be present without further protection.
3M tape used only for indoor, when the strip installed outdoor, please use fixed slot
Away from strong acid or strong alkali.

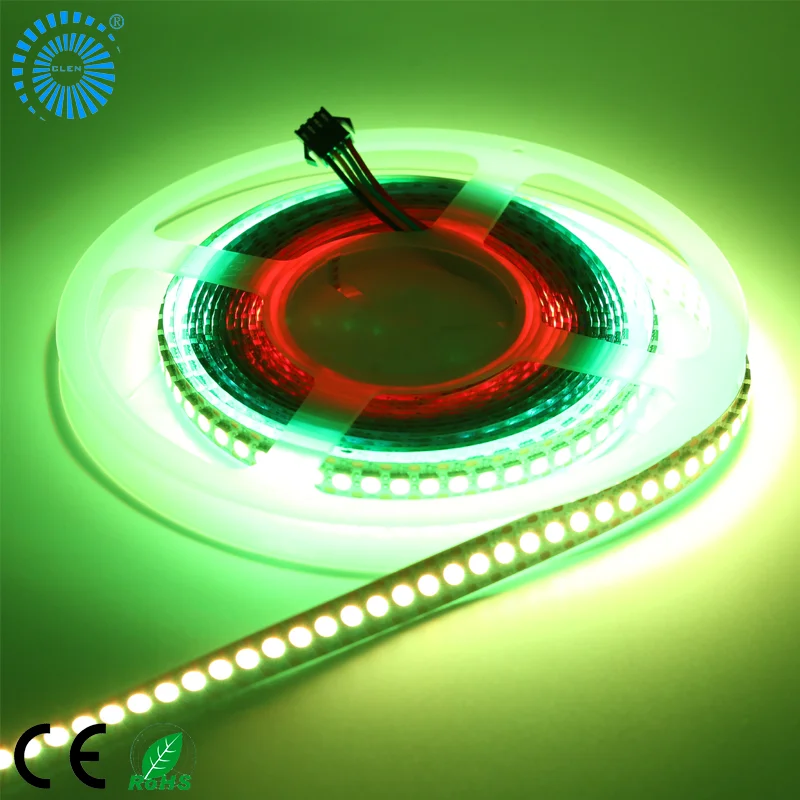

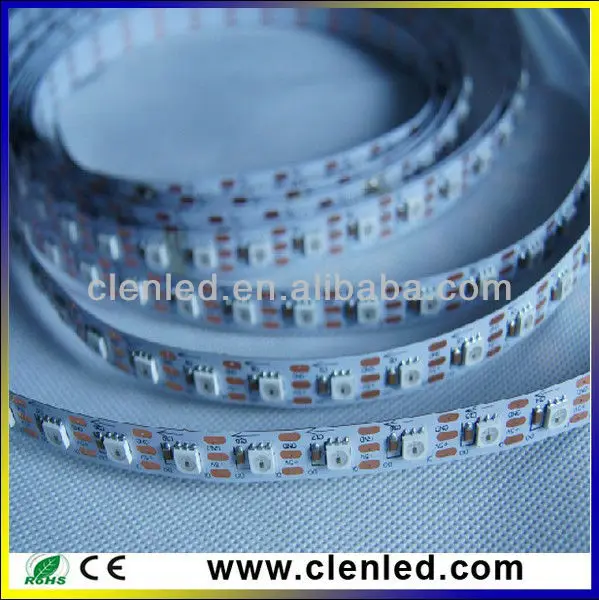

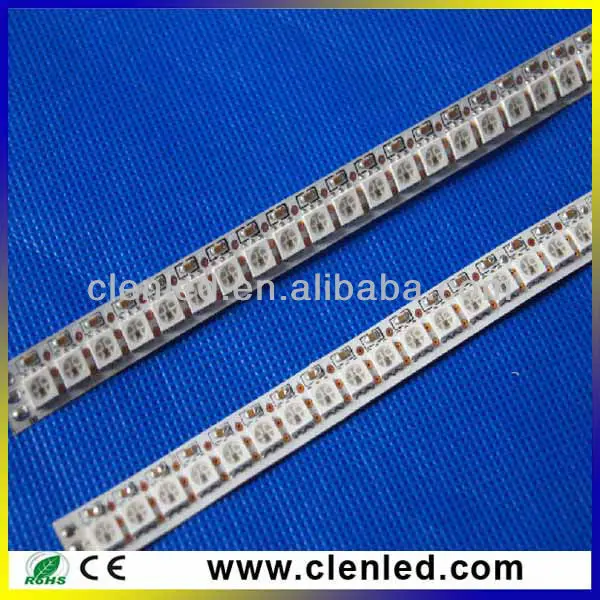

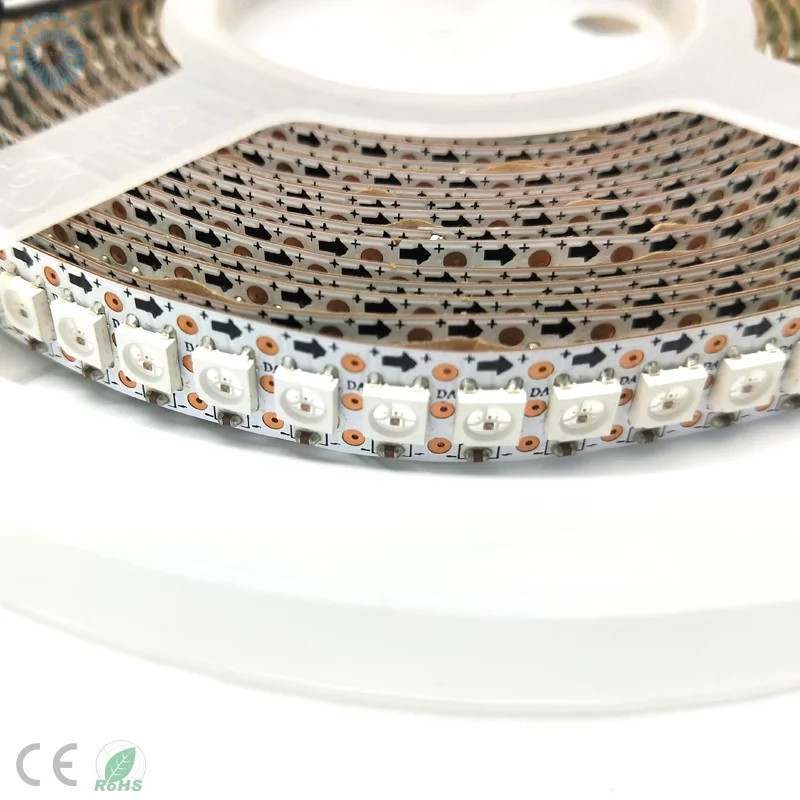

7.Referenced pictures
