Product Description

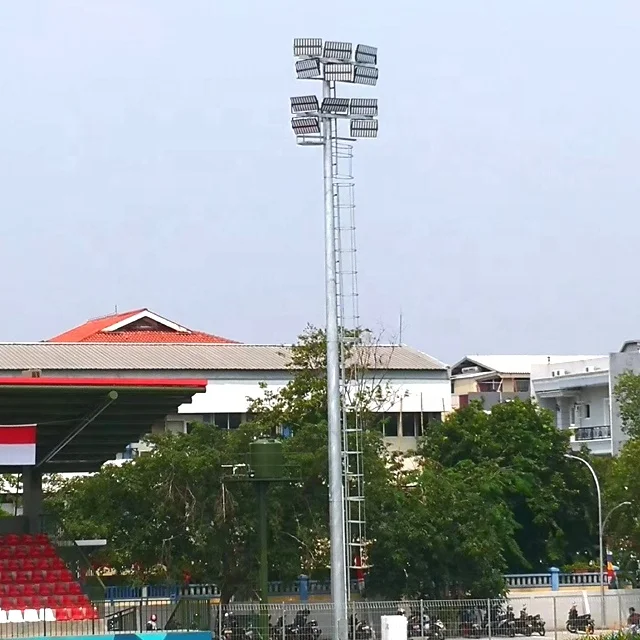

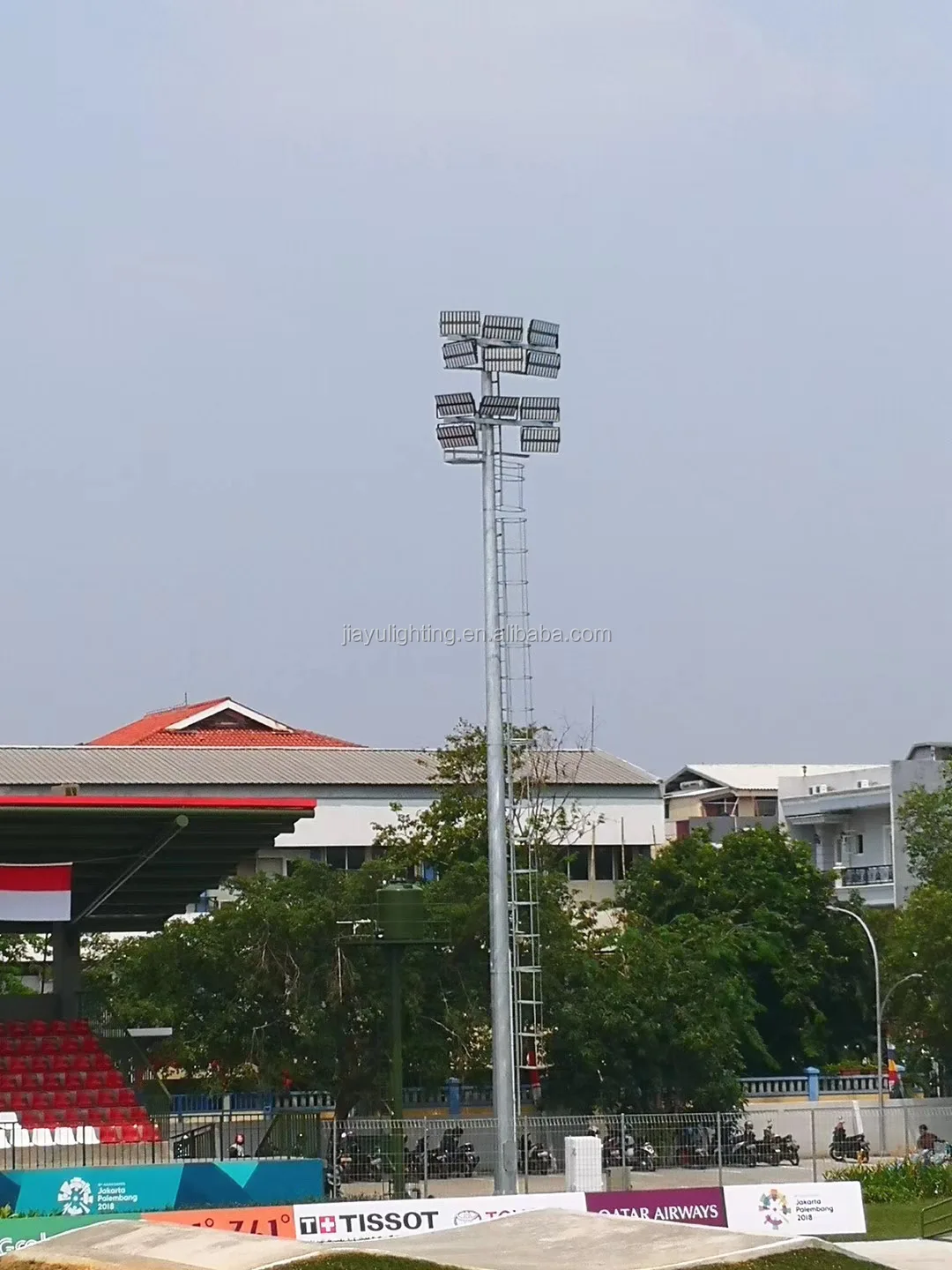

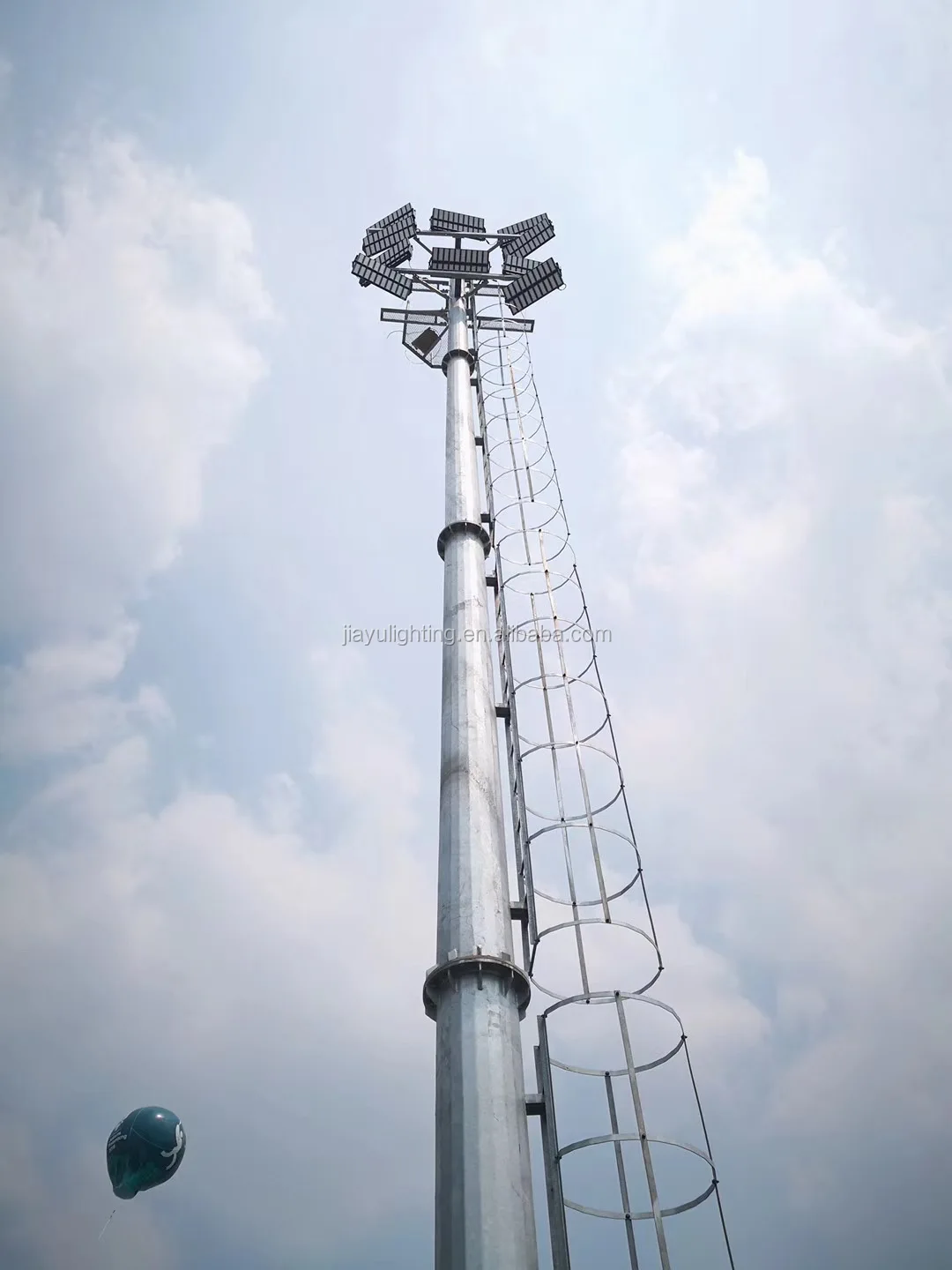

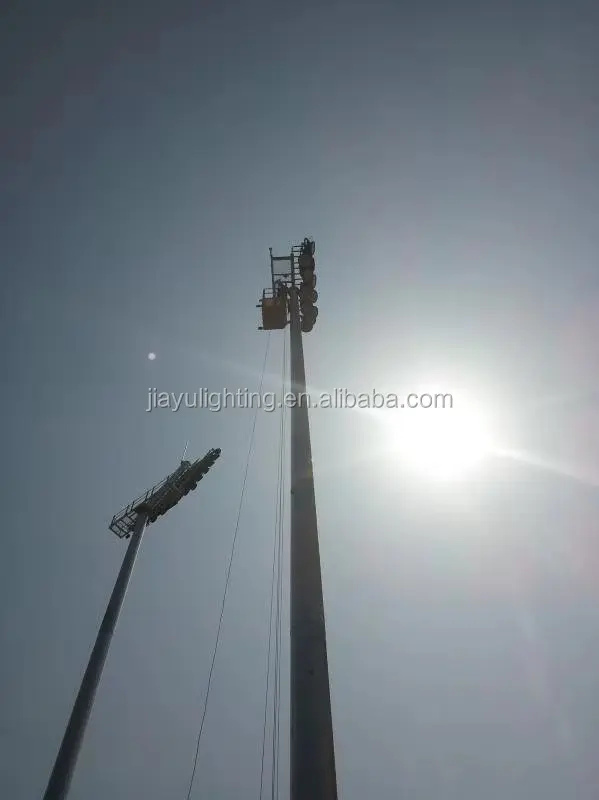

Ladder type 25m stadium mast pole for soccer field lighting football playground lamp 200w 300w high lumen output LED flood light
Specification
Pole height | 15m to 45m |
Applied sites | Airport, seaport, plaza, stadium, square, highway station, street way, etc |
Pole Shape | Round, Multi-pyramidal, Column form, polygonal |
Material | Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 |
Torrance of dimension | +/- 1% |
Lighting Source | 400W- 5000 W HPS/MH, or 150w-300W LED flood light, light extension up to 30 000 m² |

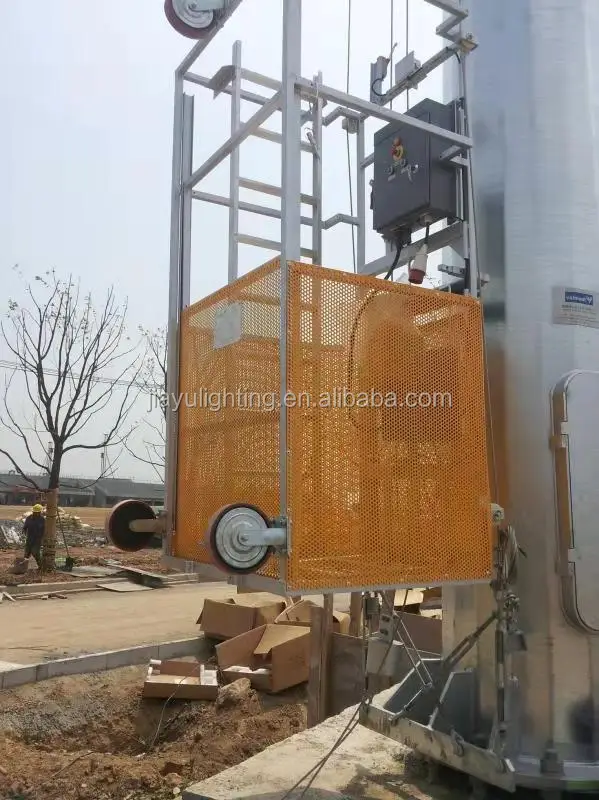

Lifting system | Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute. Equipped magnetism brake and break –proof device, manual operation applied under power cut |
Electric appliance control device | Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire.Time control and light control could be equipped to realize full-load lighting mode and part lighting mode |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode, inner flange mode, face to face joint mode . |
Design of pole | windstand 200km/h, IK08 |
Welding | Comply with ASTM A123 standard. We has past flaw testing. Internal and external double welding makes the welding in shape |
Thickness | 6 mm to 20 mm |

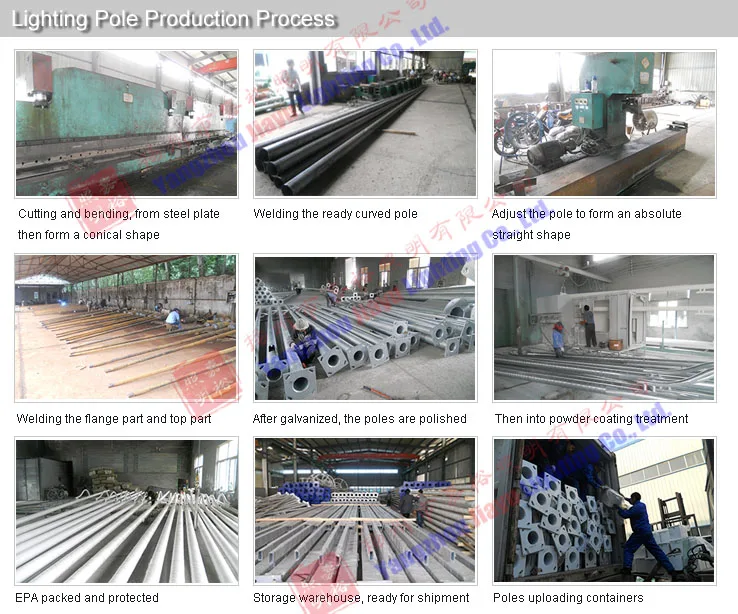

Production Process | Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flangewelding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging |
Packages | Our poles as normal cover by Mat or straw bale at the top and bottom, also can following by client required |

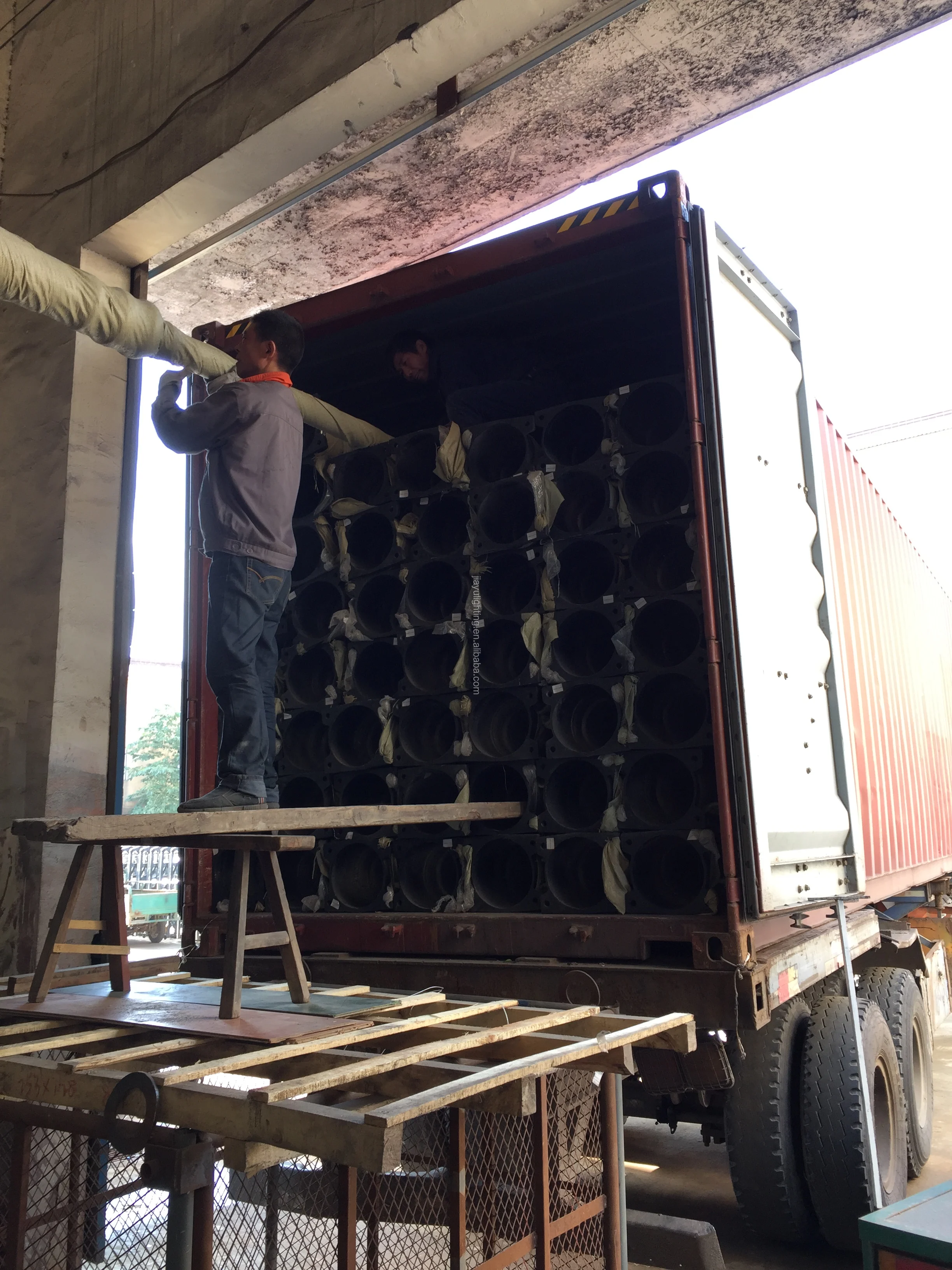

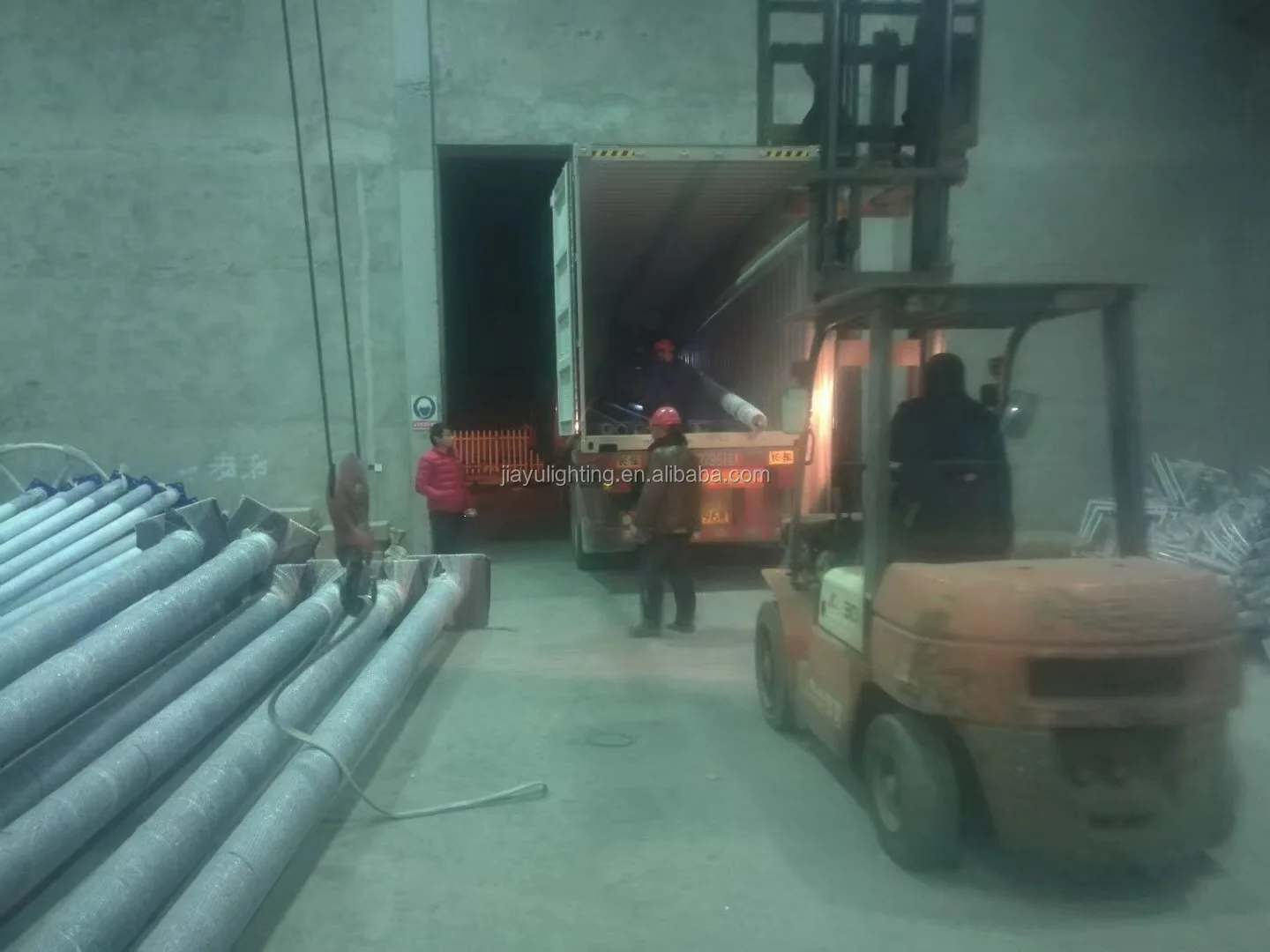

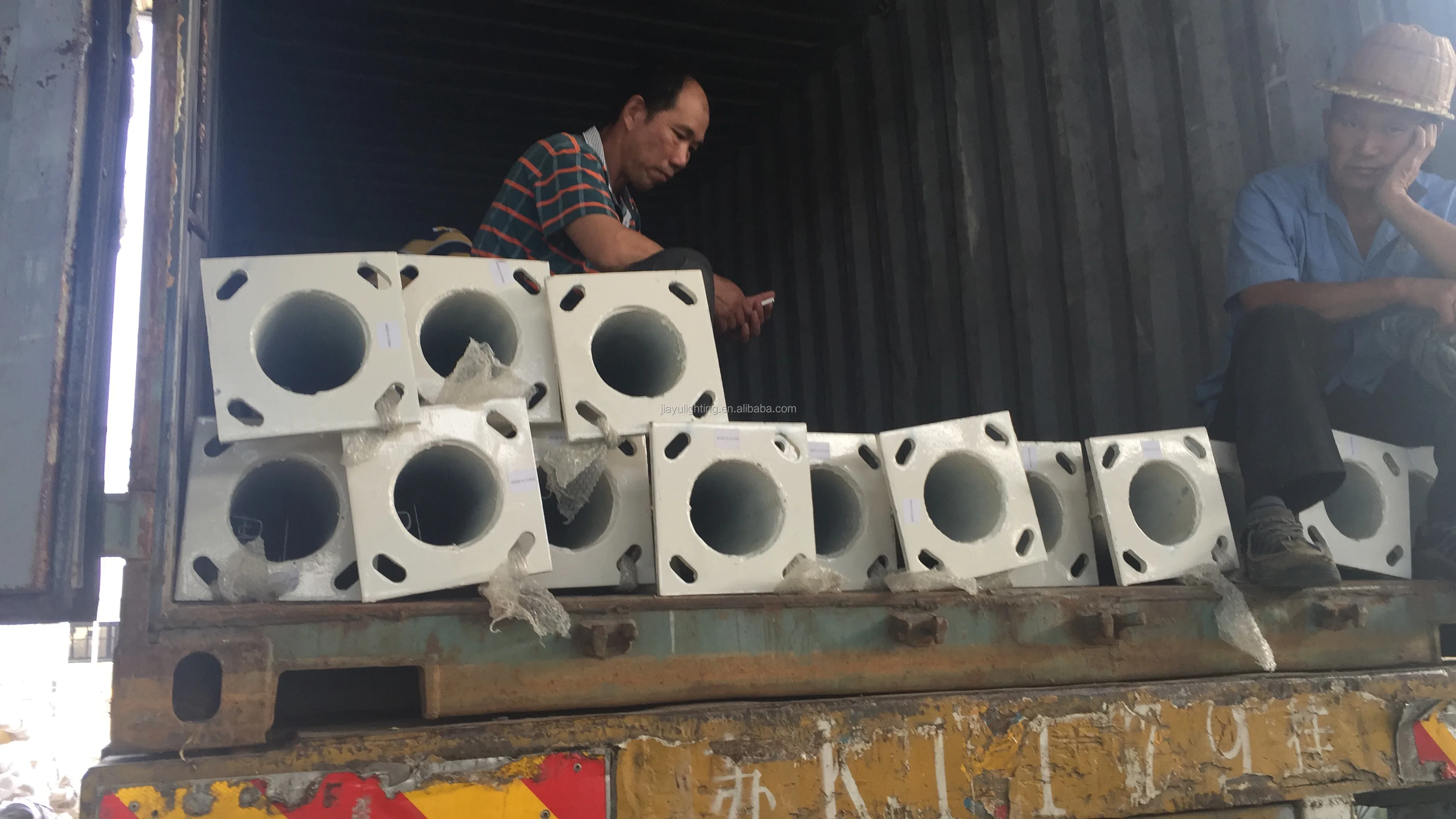

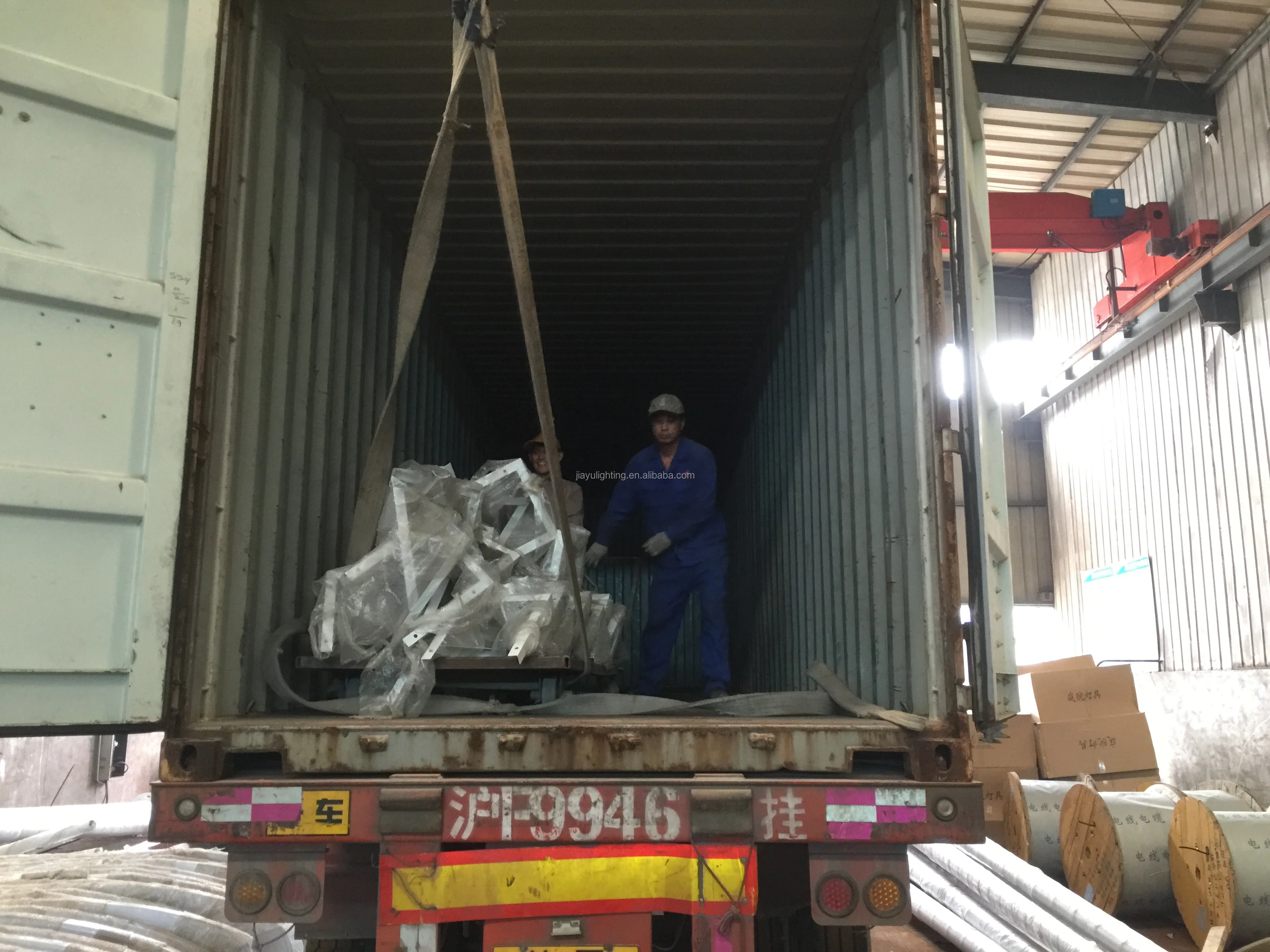

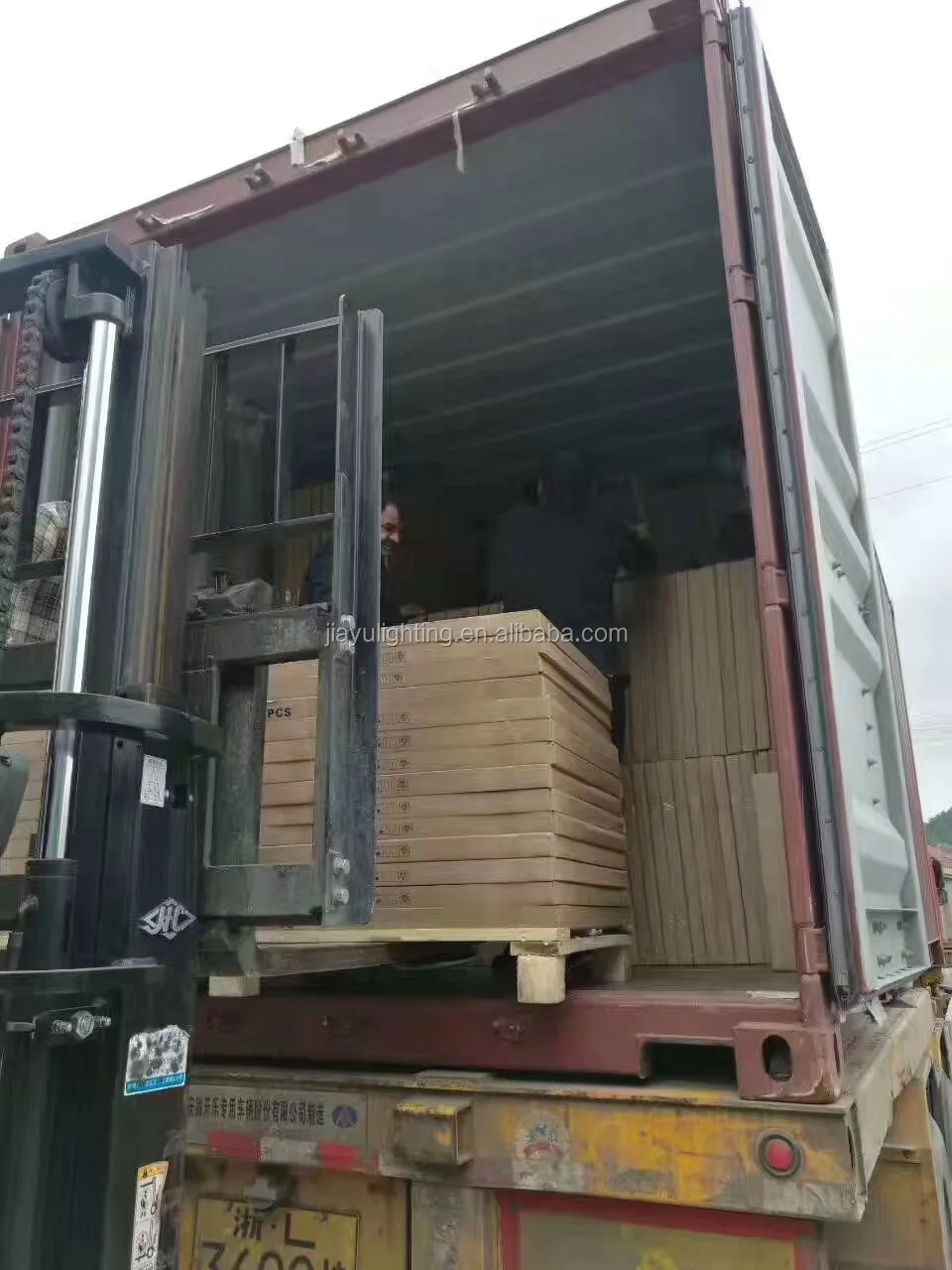

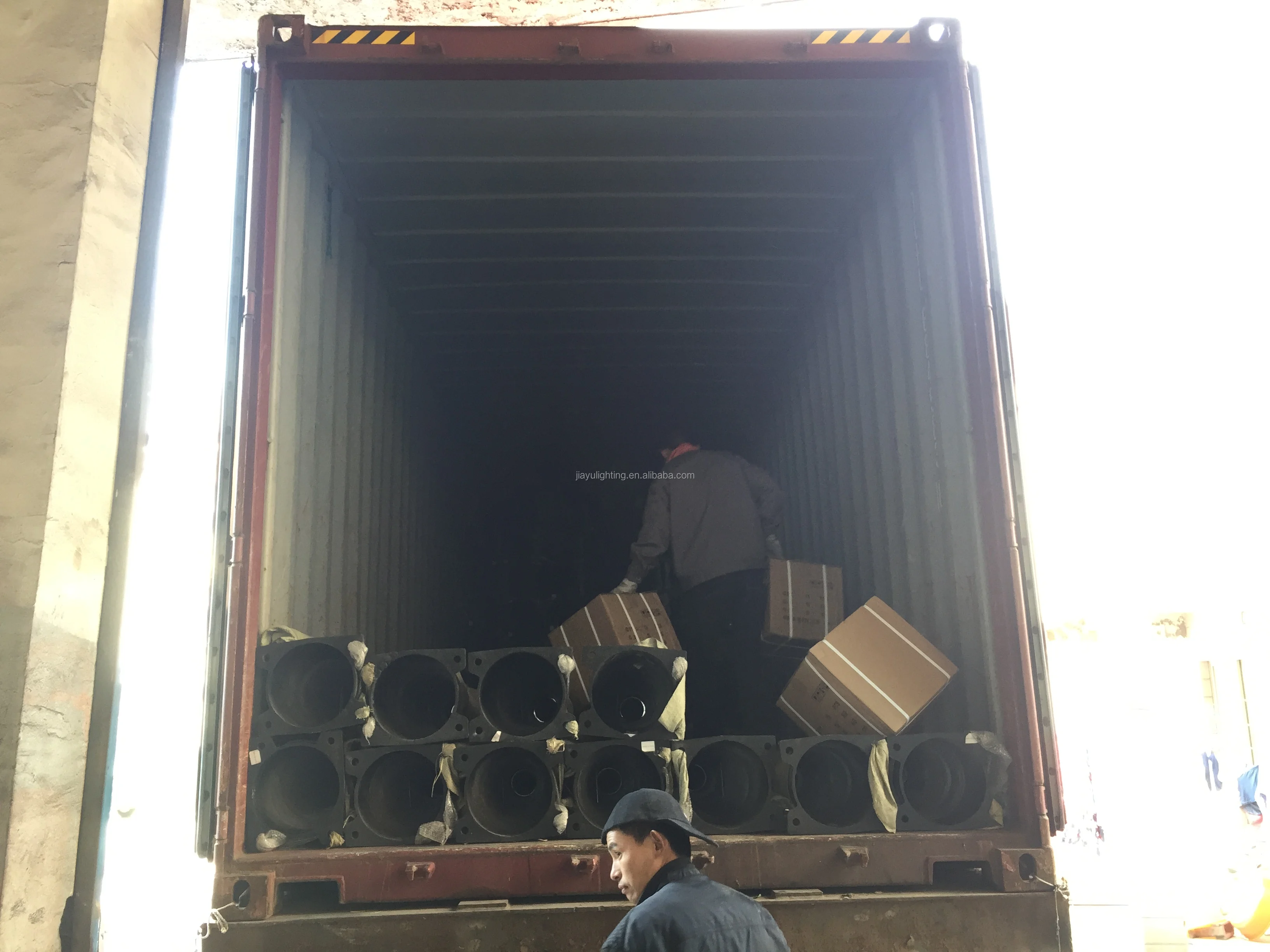

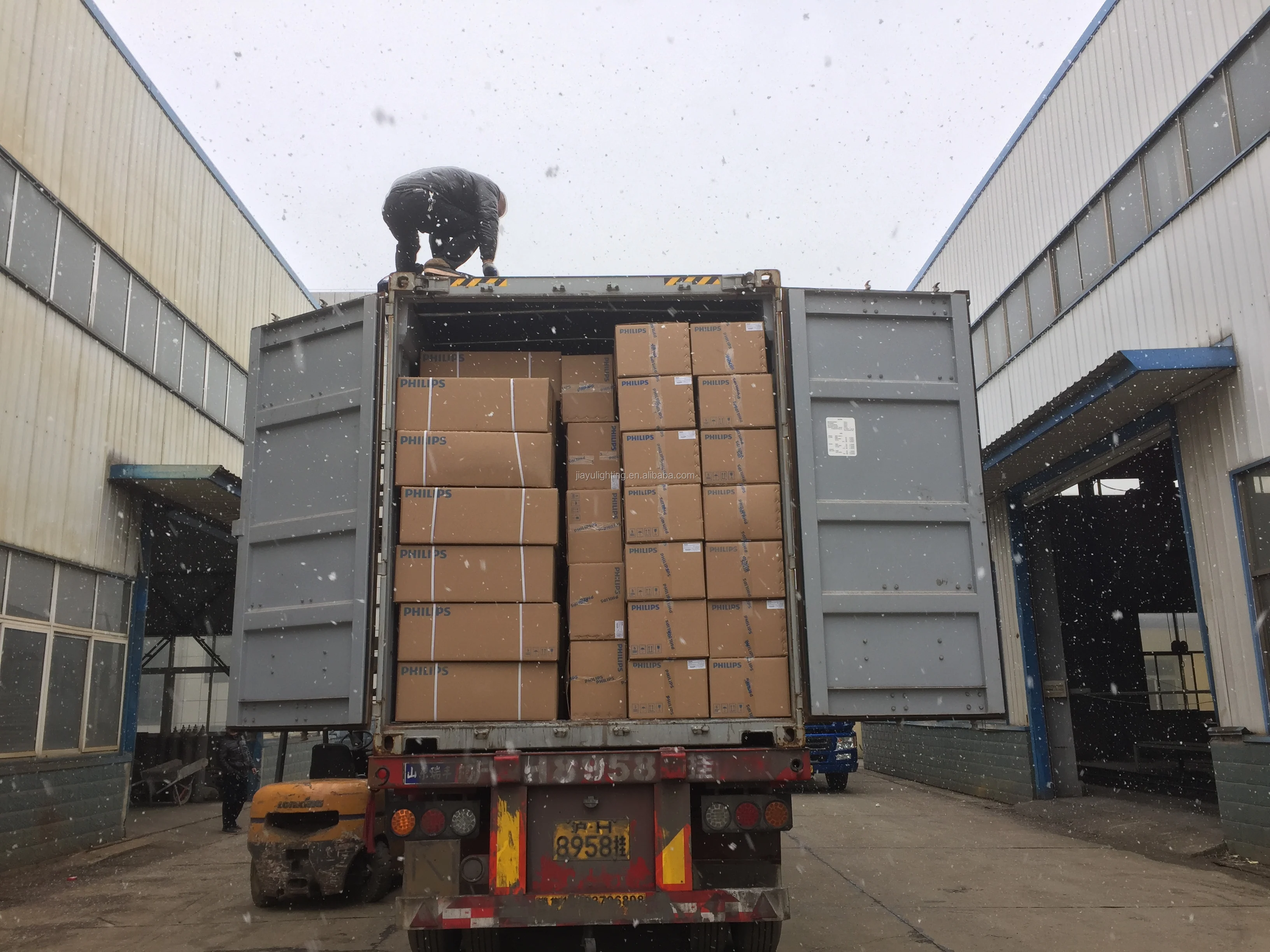

Container Loading

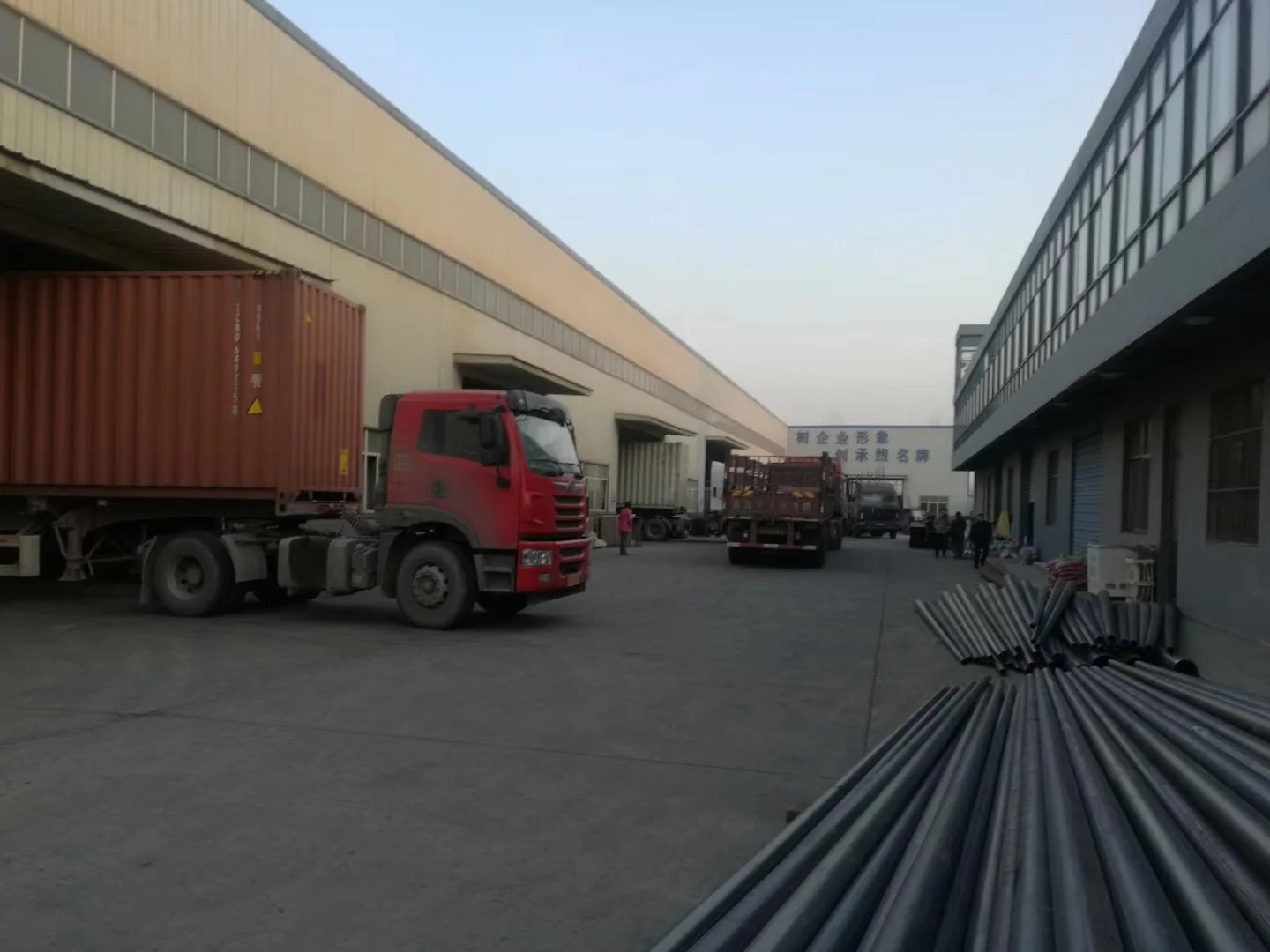

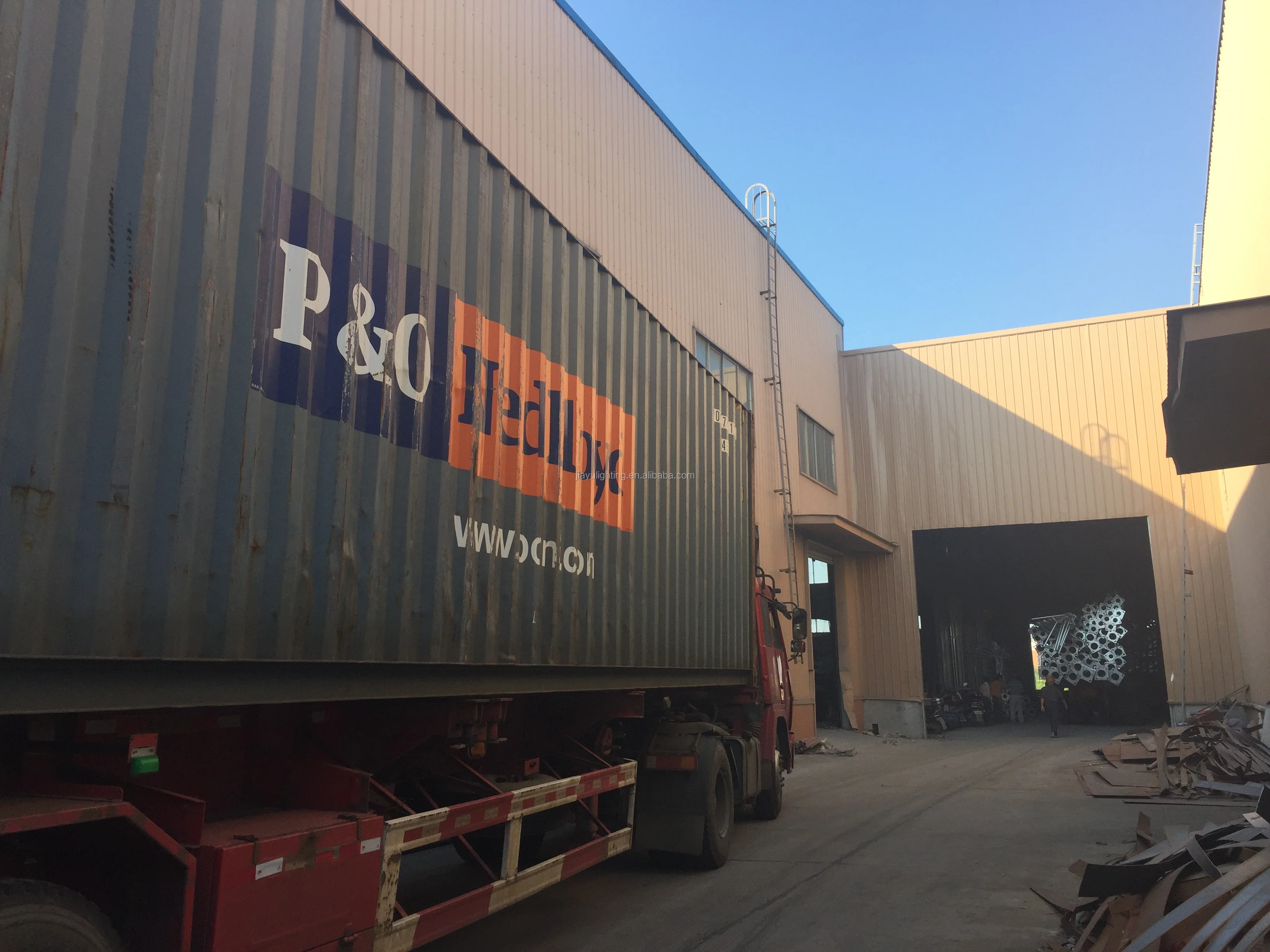

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Manufacturing Technique
Company Profile

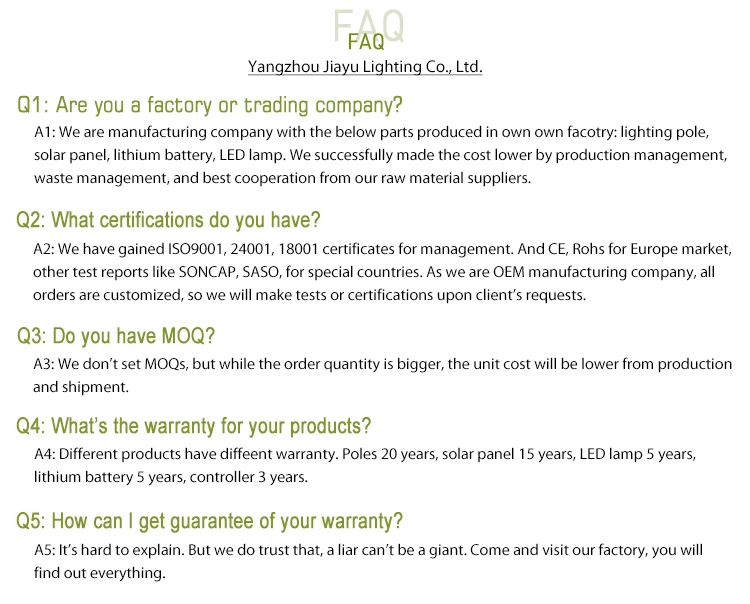

FAQ
