Trailed Water Well Drilling Rig is an efficient, energy-saving and simple DTH drilling rig, which is mainly used for drilling water wells, monitoring wells, geothermal air-conditioning holes, agricultural irrigation wells, dam seepage-proof grouting holes, Hole, open-pit mining, anchoring, national defense engineering and other drilling operations. The drilling machine adopts the downhole impact casing to follow the wall drilling process, and effectively solves the technical problem that the loose layer is difficult to form a hole.
Technical parameter
Machine weight (kg) 6000
Machine size (mm) 5300 * 2100 * 2500
Walking speed (km / h) 0 ~ 2
Equipped with power model YN27
Power parameters 37kW / 2400rpm
Ground clearance (mm) 250
Impactor DHD360
Climbing ability (°) 20
Drilling depth (m) 200
Working pressure (MPa) 1.05 ~ 2.46
Total gas consumption (m3 / min) 16 ~ 30
Drill pipe diameter (mm) Ø76 / Ø89 / Ø102
Drill pipe length (mm) 1500/3000
Drilling (drill) diameter (mm) Ø115 ~ Ø254
Propulsion (kN) 27
Lifting force (kN) 40
Rotor speed (rpm) Slow 38 Fast 75
Rotary torque (N · m) 5500

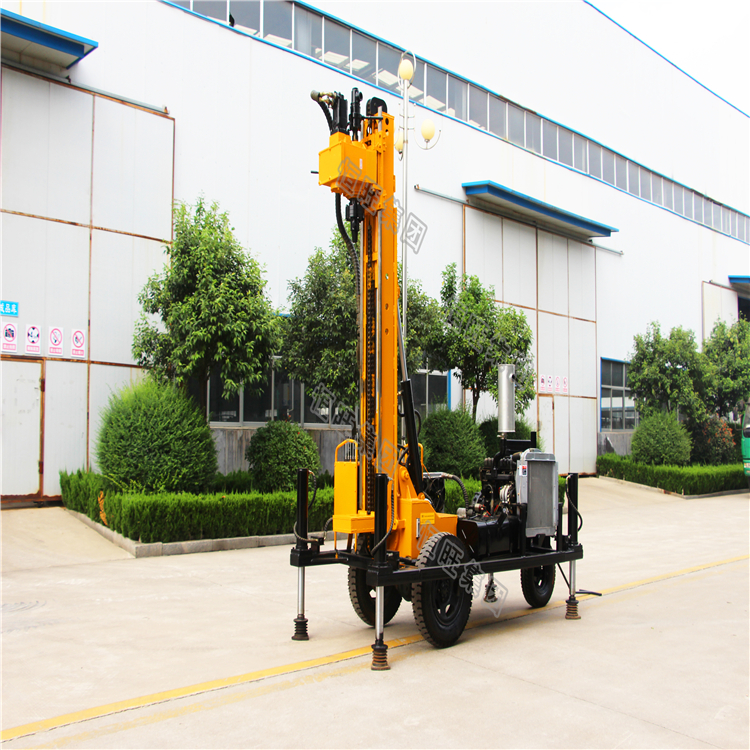

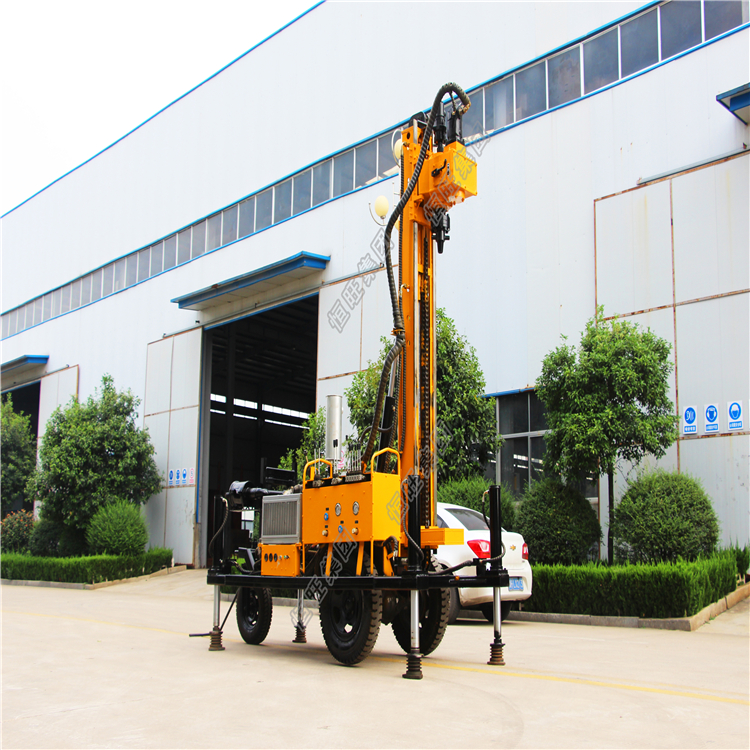

Real Photo
trailer mounted Water Well Drilling Rig Equipment,Portable Quick Water Drill Rig,Water Drilling Machine
trailer mounted Water Well Drilling Rig Equipment,Portable Quick Water Drill Rig,Water Drilling Machine
trailer mounted Water Well Drilling Rig Equipment,Portable Quick Water Drill Rig,Water Drilling Machine
trailer mounted Water Well Drilling Rig Equipment,Portable Quick Water Drill Rig,Water Drilling Machine
