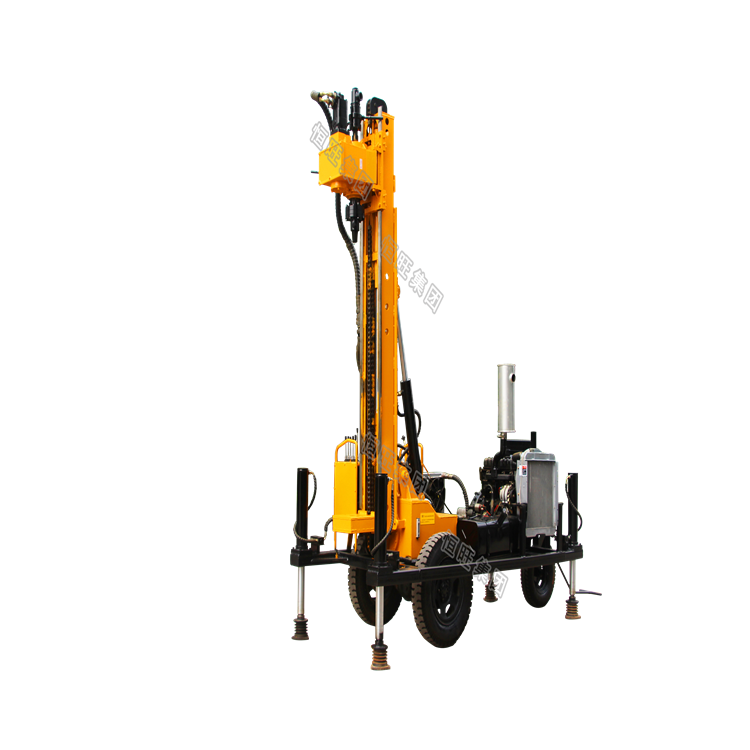

Full hydraulic wheeled pneumatic 120 meters portable mobile dth drilling rig

Click on the image to view the original image

Product：	views：5Full hydraulic wheeled pneumatic 120 meters portable mobile dth drilling rig
Branch：	heng wang
Type：	Rotary Drilling Rig
Size：	45X35X60 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:24

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: heng wang

Usage:: Water Well

Voltage:: Customized

Dimension(L*W*H):: 3000 * 1200 * 2000MM

Weight:: 1800KG

Certification:: ISO

Warranty:: 2 Years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Name:: Multifunction Hydraulic Drilling Rig

Product name:: Full hydraulic wheeled pneumaticportablemobiledthdrilling rig

Drilling depth:: 120m

Application:: waterwell drillingrigDTHdrill rig

Model:: Full hydraulic wheeled pneumaticportablemobiledthdrilling rig

Feature:: High Drilling Efficiency

Drilling diameter:: 115-254mm

Engine:: Diesel Power

Spindle Speed:: 2400RPM

Packaging & Delivery

Selling Units:: Single item

Single package size:: 45X35X60 cm

Single gross weight:: 65.0 kg

Package Type:: non

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

HW-100 Trailed Water Well Drilling Rig is an efficient, energy-saving and simple DTH drilling rig, which is mainly used for drilling water wells, monitoring wells, geothermal air-conditioning holes, agricultural irrigation wells, dam seepage-proof grouting holes, Hole, open-pit mining, anchoring, national defense engineering and other drilling operations. The drilling machine adopts the downhole impact casing to follow the wall drilling process, and effectively solves the technical problem that the loose layer is difficult to form a hole.

Technical parameter

Machine weight (kg) 1800
Machine size (mm) 3000 * 1200 * 2000
Walking speed (km / h) 0 ~ 2
Equipped with power model YN27
Power parameters 37kW / 2400rpm
Ground clearance (mm) 250
Impactor DHD360
Climbing ability (°) 20
Drilling depth (m) 120
Working pressure (MPa) 1.05 ~ 2.46
Total gas consumption (m3 / min) 16 ~ 30
Drill pipe diameter (mm) Ø76 / Ø89 / Ø102
Drill pipe length (mm) 1500
Drilling (drill) diameter (mm) Ø115 ~ Ø254
Propulsion (kN) 27
Lifting force (kN) 40
Rotor speed (rpm) Slow 38 Fast 75
Rotary torque (N · m) 3500

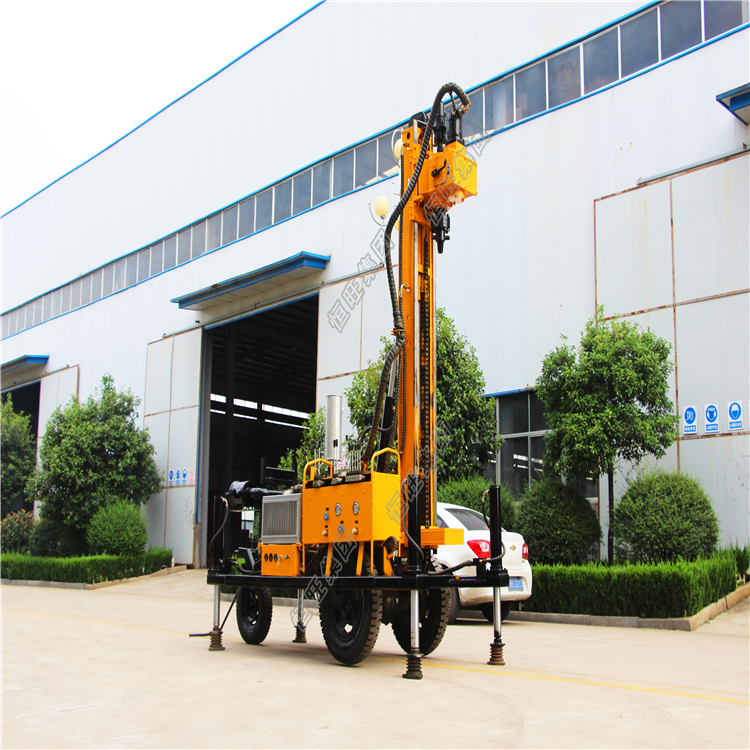

Real Photo
