High quality diesel small excavator mini digger for sale
Mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
MODELS
| Specifications | |||
| MODELS | HW180-D | HW180-T | HW360 |
| TOTAL OPERATING WEIGHT | 1850kg | 2000kg | 1800kgs |
| MIN GROUND DIMENSION | 200MM | 230MM | 200MM |
| BACKHOE BUCKET CAPACITY | 0.1m3-0.2m3 | 0.1M3-0.2M3 | 0.1M3-0.2M3 |
| RATED POWER | 24-39KW | 24-39KW | 18-22KW |
| BACKHOE BUCKET HEIGHT | 1800MM | 2000MM | 1800MM |
| MAX. DIGGING DEPTH | 2000MM | 2000MM | 2000MM |
| BUCKET SLEWING (SWING)ANGLE | 180° Boom | 180° Boom | 360° Boom |
| WORKING PRESSURE | 16MPA | 16MPA | 16MPA |
Features:
1. Adopt double pump double valve configuration, performance improvement, compound coherent action
2.360-degree rotation, cushioning device more gentle
3.Striped rubber track climbing ability
4.Easy to use

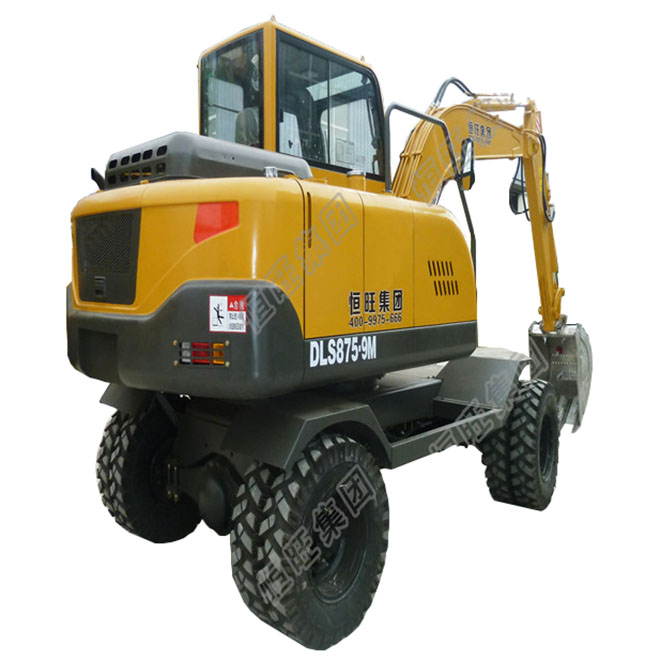

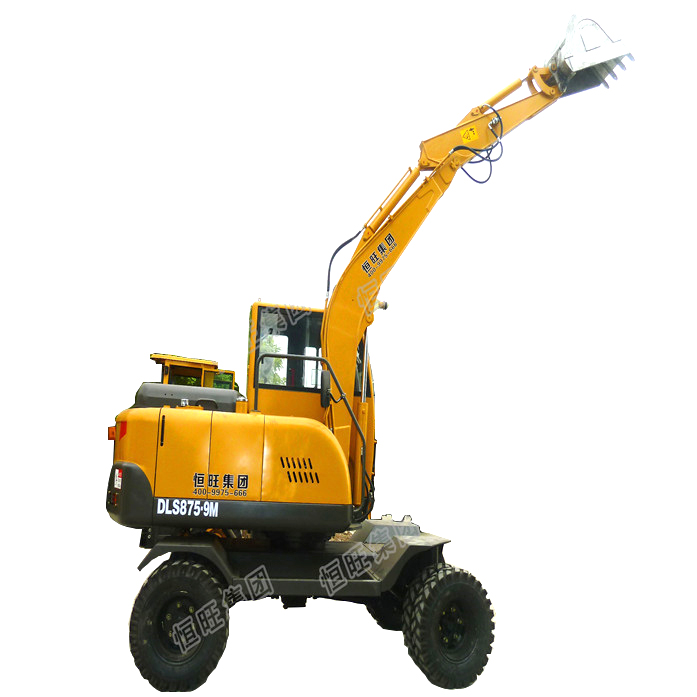

Photos :
