Product Description
Concrete mixer pump

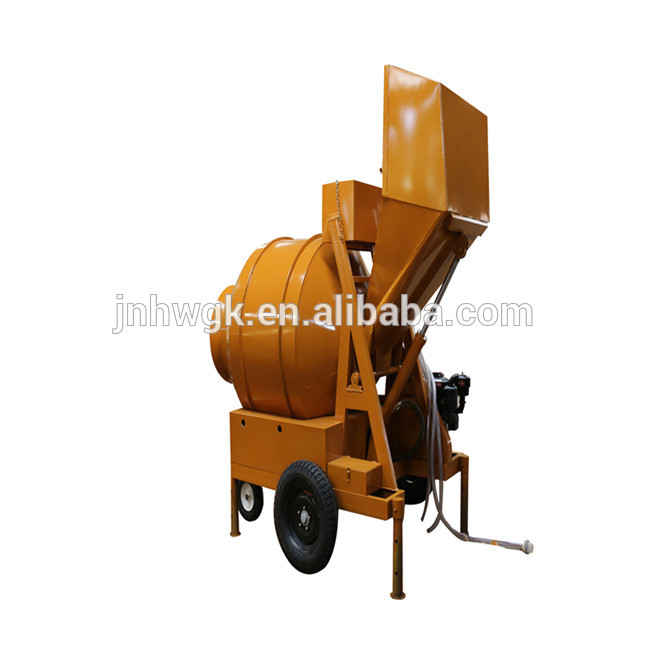

JZC 500 YANMAR Diesel Engine Powered Concrete Mixer with Hydraulic Tipping Hopper is mixer of double conical drums which discharge concrete by reverserotation, suitable for mixing plastic and semidry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction.
It is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and smallsized prefabricatedcomponent factories etc.
It is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and smallsized prefabricatedcomponent factories etc.
Parameter
Discharge capacity: 500L
Feed capacity: 800L
Production: 18-20m3 / h
Volume of cement: 3bags
Roller thickness: 8mm
Power: Yanmar diesel engine
Hydraulic pump displacement: 20ml / r
Roller speed: 13rpm
Aggregate maximum size: 80mm
Tire size: 6.50-16
Weight: 2100kg
Overall size: 3600 * 2300 * 3650mm
Packing size: 2600 * 2000 * 2500mm
Feed capacity: 800L
Production: 18-20m3 / h
Volume of cement: 3bags
Roller thickness: 8mm
Power: Yanmar diesel engine
Hydraulic pump displacement: 20ml / r
Roller speed: 13rpm
Aggregate maximum size: 80mm
Tire size: 6.50-16
Weight: 2100kg
Overall size: 3600 * 2300 * 3650mm
Packing size: 2600 * 2000 * 2500mm
Photos
Certifications
Detailed Images

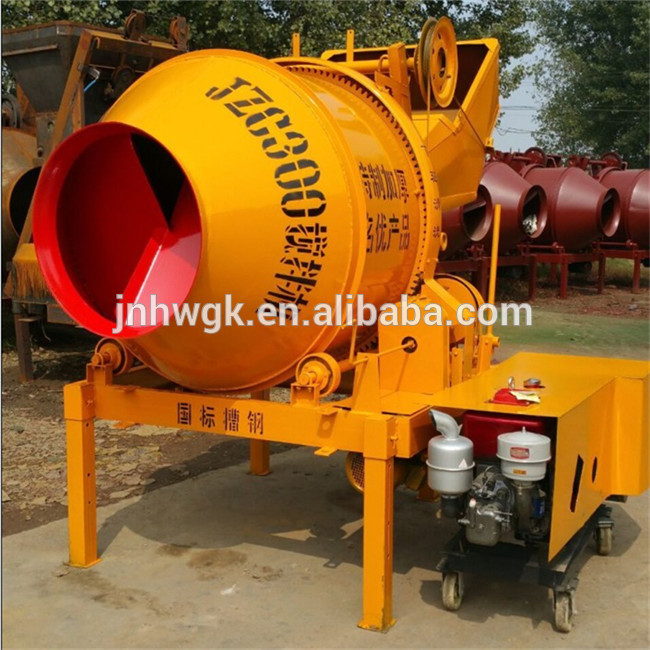

Name: 300L concrete mixer pump
Engine: can use electric, gasoline or diesel engine,according customer need
Capacity: 300L
Name: 300L concrete mixer pump
Engine:can use electric, gasoline or diesel engine,according customer need
Capacity: 260L
500L concrete mixer
Engine: can use electric or diesel engine,according customer need
Capacity: 500L
