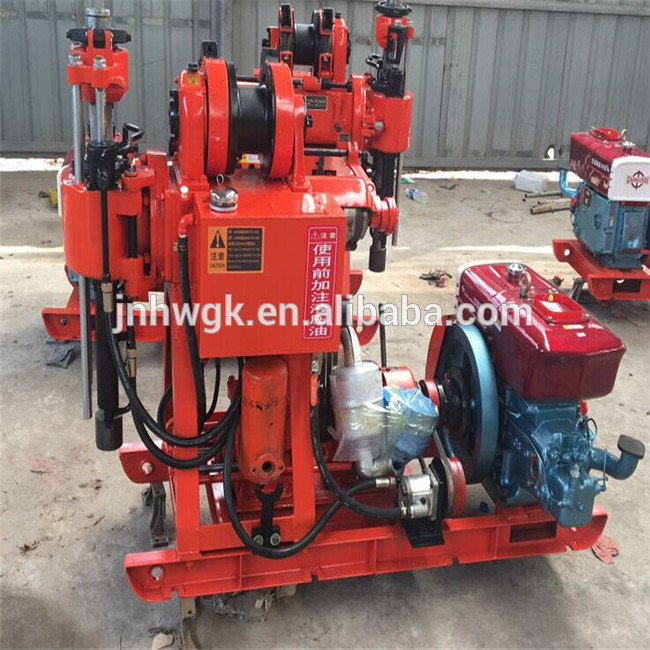

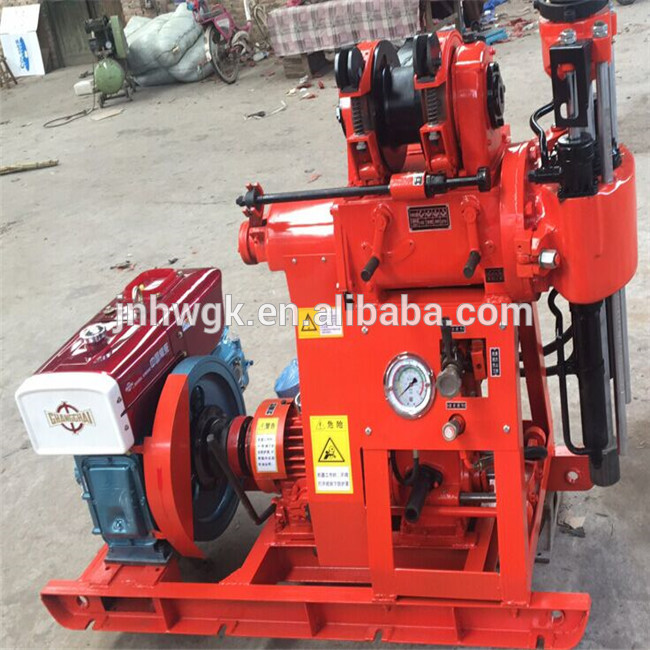

Diesel engine XY-1 100 meters hydraulic drilling rig

Click on the image to view the original image

Product：	views：3Diesel engine XY-1 100 meters hydraulic drilling rig
Branch：	HW
Type：	Rotary Drilling Rig, Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig, Rotary Drilling Rig

Power Type:: Diesel, Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: drilling rig

Dimension(L*W*H):: 1640*850*1340MM

Weight:: 600KGS

Certification:: BV,SGS, ISO CE

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Drilling diameter:: 75-300 MM

drilling depth:: 100M

Drilling direction:: 75-90 degree

Diesel engine:: 18hp

Speed:: 2200r/min

Vertical spindle speed:: 142/285/570 r/min

Supply Ability

Supply Ability:: 1000 Set/Sets per Month drilling rig

Packaging & Delivery

Packaging Details: drilling rig Standard wooden case packing

Port: QINGDAO,XIAMEN,TIANJIN,NINGBO

Product Description

Water well drilling rig

1.XY-1 water well drilling rig
a. the machine is equipped with crawler chassis device,easy to move with fast speed.
b hydraulic oil pressure feed device,improve drilling defficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d drill mast controlled by hydraulic cylinder,improve the efficiency
diesel engine adopt the electric starter,to reduce the labor itensity

2.Applications of XY-1 Water Well Drilling Rig
XY-1 drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.

XY-1 Parameter
Drilling diameter	75-300 MM	Drilling direction	75-90 degree
drilling depth	100M	Drilling rigsize	16408501340 mm
Power Parameter
Diesel engine	18hp	Speed	2200r/min
Gyrator Parameter
Vertical spindle speed	142/285/570 r/min	Vertical stroke	450mm
Vertical max.pressure	14.7KN
Hoist Parameter
Max. rope lift	10KN	Drum speed	168,81,42r/min
Drum diameter	140mm	Diameter of wire rope	9.3-12mm
