Product Description

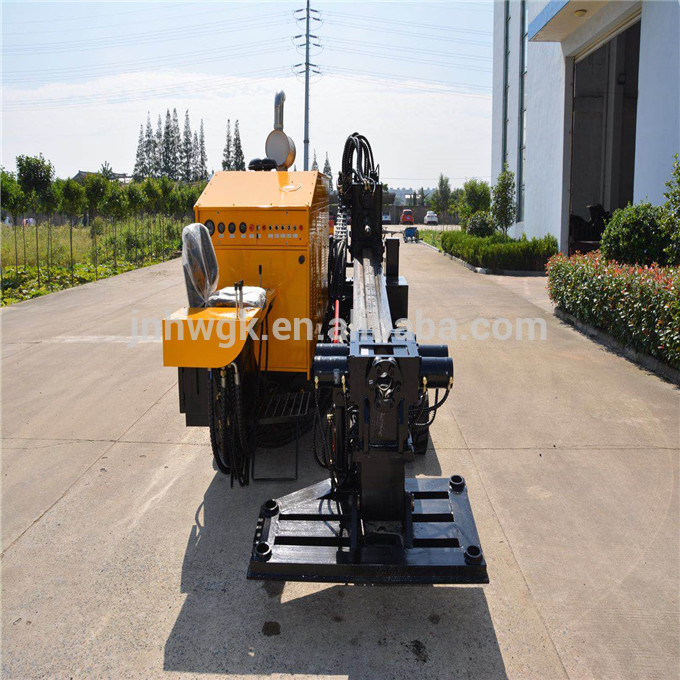

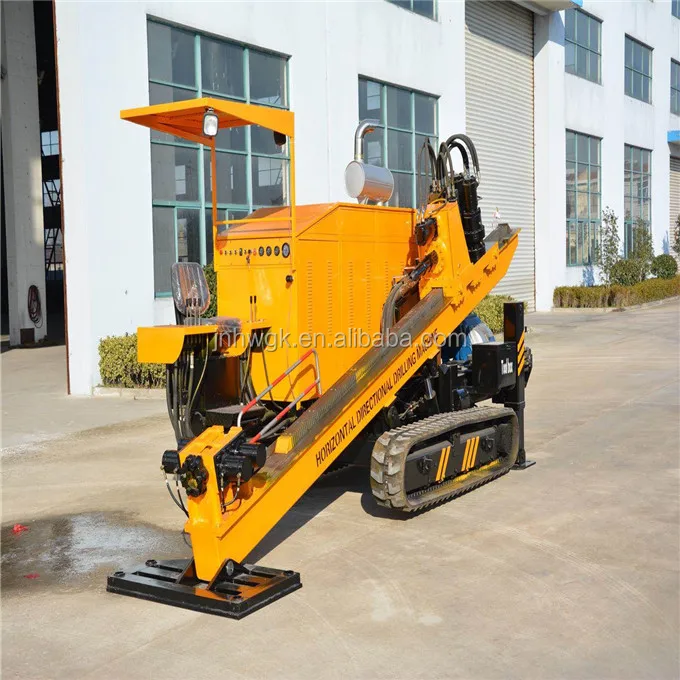

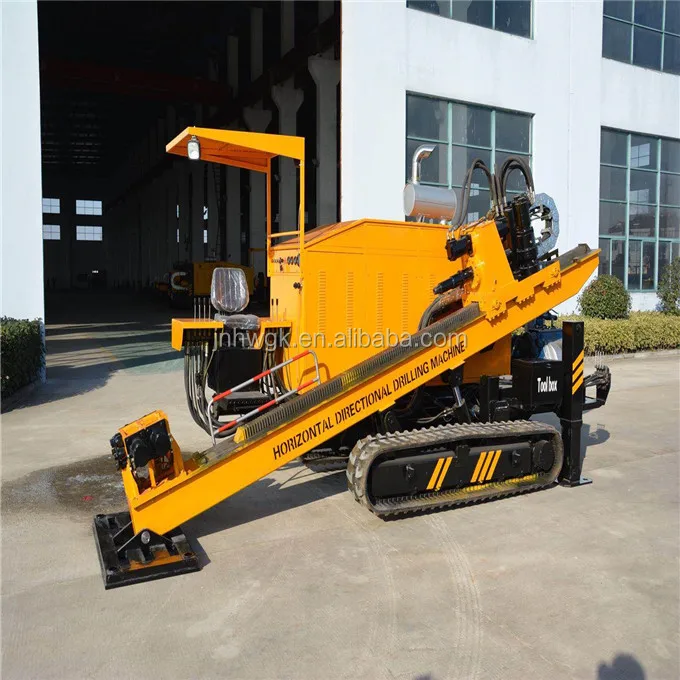

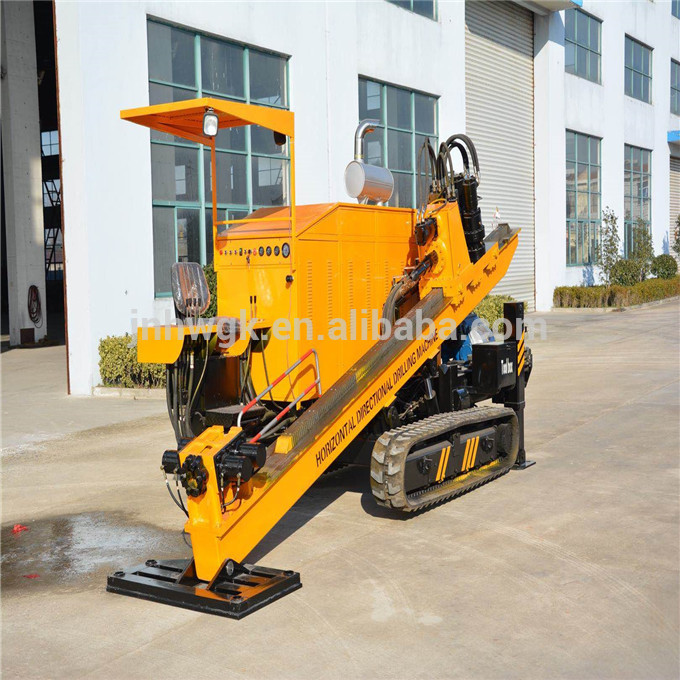

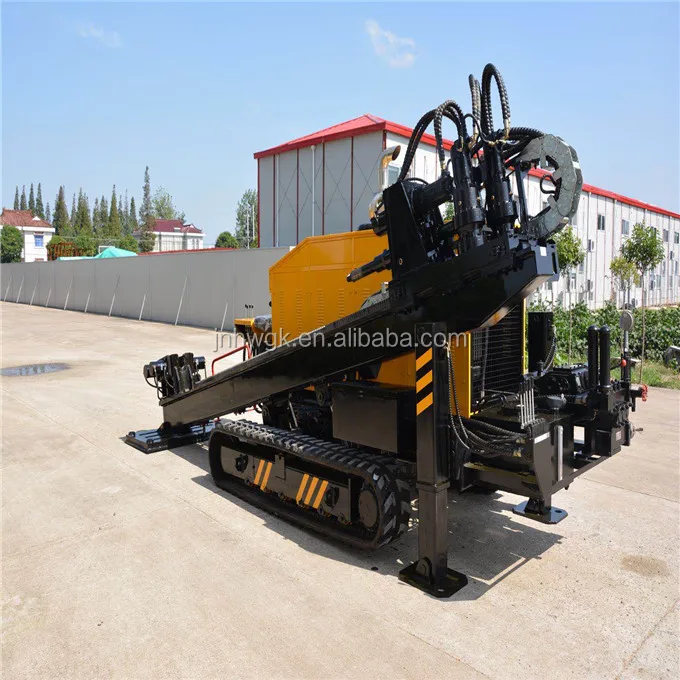

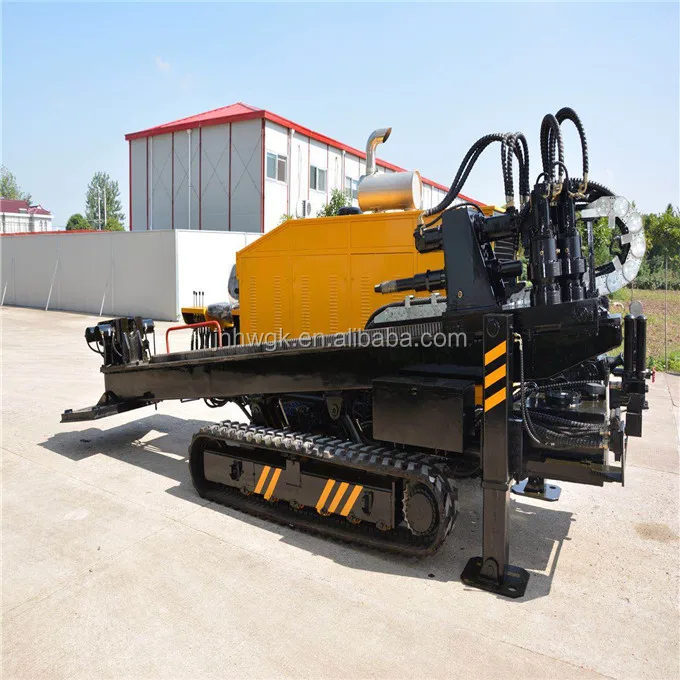

China manufacturer 20t underground pipe laying machine, horizontal directional drilling machine/rig
The specifications of Juli brand horizontal directional drilling machine | |||||||
Model | Unit | HW-20 | HW-25 | HW-33 | HW-36 | HW-40 | |
Rated power | kw | 110 | 125 | 132 | 160 | 179 | |
Max pullback/thrusting | kn | 200/200 | 250/250 | 330/330 | 360/360 | 400/400 | |
Max spindle torch | n.m | 7000 | 8000 | 12000 | 14000 | 16000 | |
Spindle speed | r/min | 0-110 | 0-125 | 0-125 | 0-70-120 | 0-65-100 | |
Travelling speed of power head | m/min | 0-21 | 0-20 | 0-22 | 0-28 | 0-28 | |
Max backreaming diameter | mm | Φ700 | Φ800 | Φ800 | Φ900 | Φ900 | |
Rod length | mm | 3000 | 3000 | 3000 | 3000 | 3000 | |
Rod diameter | mm | Φ60 | Φ73 | Φ73 | Φ76 | Φ76 | |
Entry angle | ° | 8to22 | 10to22 | 10to20 | 10to20 | 10to23 | |
Max mud flow rate | l/min | 250 | 250 | 320 | 320 | 320 | |
Weight | T | 8 | 8 | 9.5 | 10.5 | 13 | |
The main features of 20t underground pipe laying machine | |||||||
1) Main components such as diesel engine are famous products | |||||||
2) Professional low noise design makes the machine suitable for working in downtown | |||||||
3) Laying cable or pipe without trench | |||||||
4) Compact structure | |||||||
China manufacturer 20t underground pipe laying machine, horizontal directional drilling machine/rig
Packaging & Shipping
China manufacturer 20t underground pipe laying machine, horizontal directional drilling machine/rig
Our Services
Company Information
China manufacturer 20t underground pipe laying machine, horizontal directional drilling machine/rig
