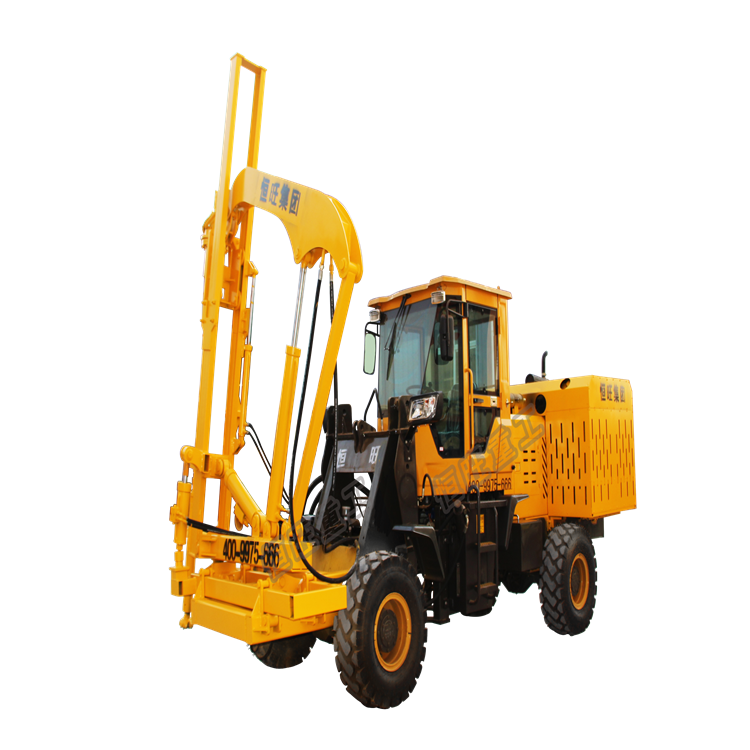

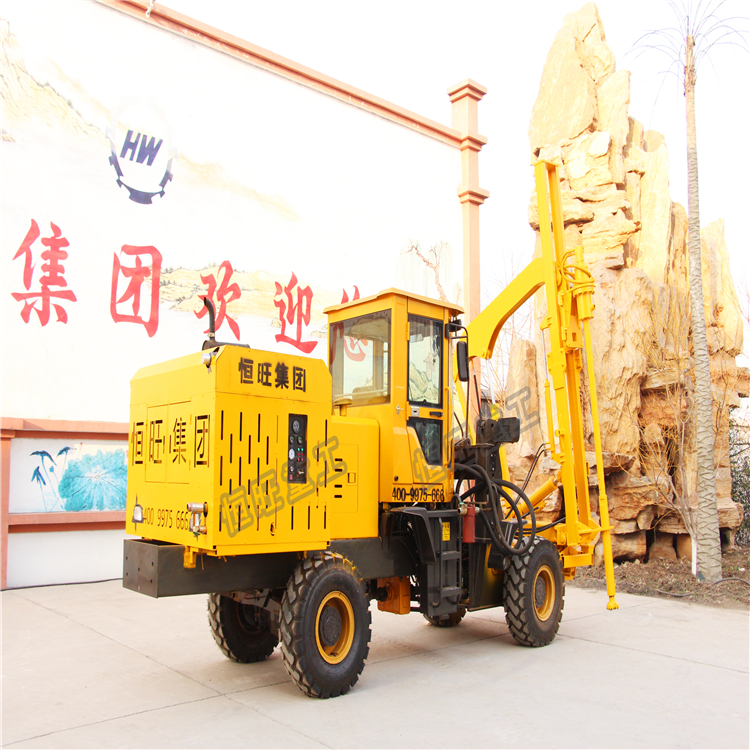

Loading pull drill integrated machine configuration, loader power 60KW, CVT, air brake, standard 10 cubic 8 kg red ring screw air compressor, compressor independent Yuchai 84KW engine, low energy consumption and high stability, Can install dedusting device, drilling work without dust
New upgrade: Own screw air compressor in one, efficient and high quality, save money and time and effort.
Built-load air compressor in one, advanced technology design, fine art processing, top-level configuration is to improve efficiency and save construction costs. According to incomplete statistics, the integrated road-driving machine has an average of over 260 holes per day, with a single hole of 1.4 meters in depth and a cobblestone formation with a drilling speed of about 1 minute and 10 seconds. Artificially, the one-piece operation, reducing the number of people who open air compressor, reducing a car, reducing the number of drivers.
Technical Parameter
Hydraulic System Flow (L / min) 110
Nominal system pressure (MPa) 15
Wheelbase (mm) 1500
Overall dimensions (L * W * H) (mm) 5500 * 2200 * 3000
Drilling diameter (mm) Φ110-φ200
Drilling speed (mm / min) 1000-2000
Impactor impact frequency (times / min) 800-900
Screw air compressor air pressure (MPa) 0.7-1.0
Screw air compressor air consumption of air (m3 / min) 10
Diesel engine power (Kg) 110KW
Piling technical parameters:
Hammer weight (Kg) 200
Hammer impact frequency (times / min) 500-900
Hydraulic hammer working flow (L / min) 60-100
Hydraulic hammer working pressure (MPa) 13-15
