Product Introduction
Model BW600 mud pump is a kind of portable mud pump. The pump is a horizontal three cylinder reciprocating single acting piston pump, has four flow and four kinds of pressure, flow and pressure range, the pump has the advantages of small volume, light weight, long service life, simple operation, reliable and flexible, general and standard partsand other characteristics, light and flexible, easy to move. Can be used in railway, within the water, metallurgy, construction, geological industrydeep hole 1000m geological exploration, engineering exploration withpump.
1,Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, motor, diesel engine
2,The design on the use of new ideas, new structure, new materials, new technology;
3,Horizontal pump to improve standardization, seriation, generalization,crankshaft, connecting rod body, the cross head, the pump head and some other components related to serialization and the universal, the other components of the reduced species
4,Loss of long life, high reliability
Technology Parameters
Type | Three cylinder horizontal single action reciprocating pump | |||
Cyminda diameter(mm) | 70 | |||
Pump seepd(min-1) | 200 | 132 | 83 | 55 |
Traffic(L/min) | 160 | 107 | 67 | 44 |
Pressure(MPa) | 2.5 | 4.0 | 6.5 | 10 |
Input power(Kw) | With motor:11 Diesel engine:13.24 | |||
Volumatric efficiency(%) | 90 | |||
Gross efficiency(%) | 72 | |||
Water inlet pipe dia(mm) | 51 | |||
Drainage pipe diameter (mm)
| 25 | |||
Dimensions:length×width×height(mm) | 1830×800×1030 (Wih diesel engine) | |||
Quality(kg) | 540 (With diesel engine) | |||

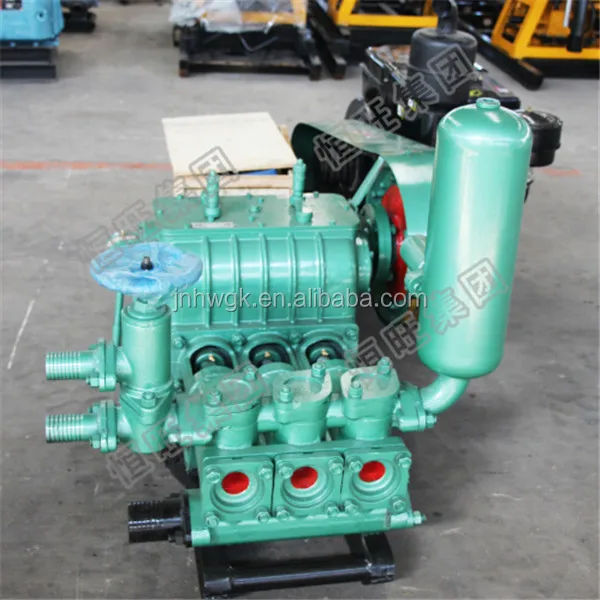

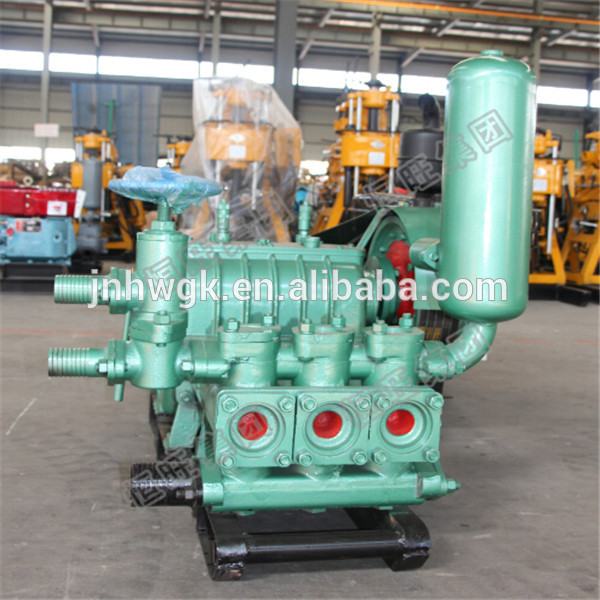

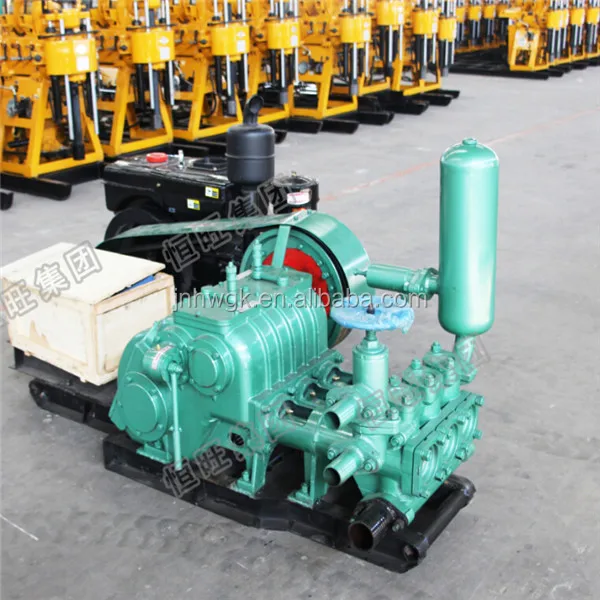

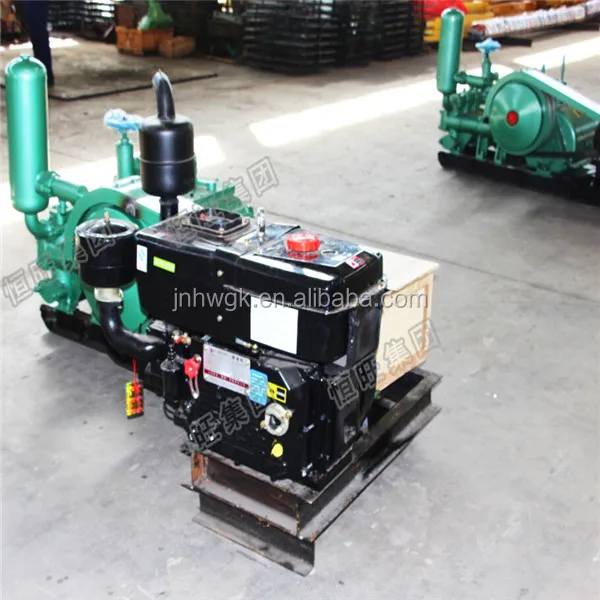

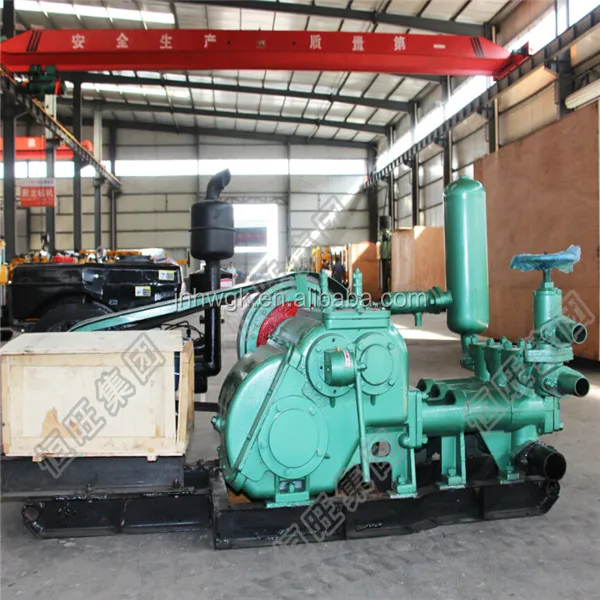

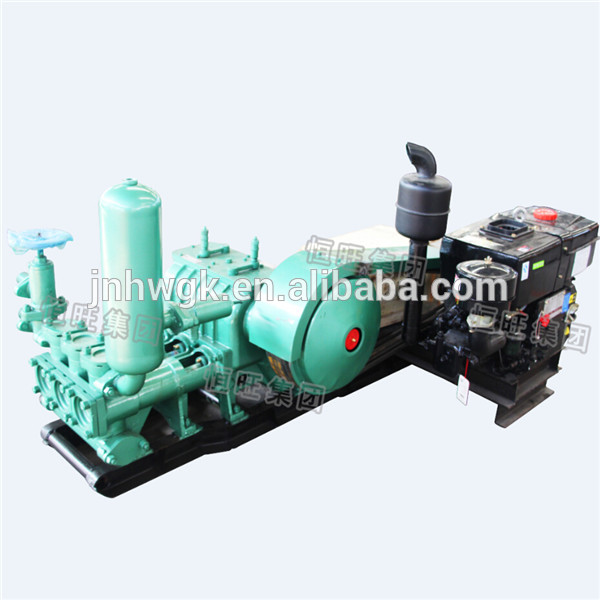

manufacturer mining mud pump photos:
